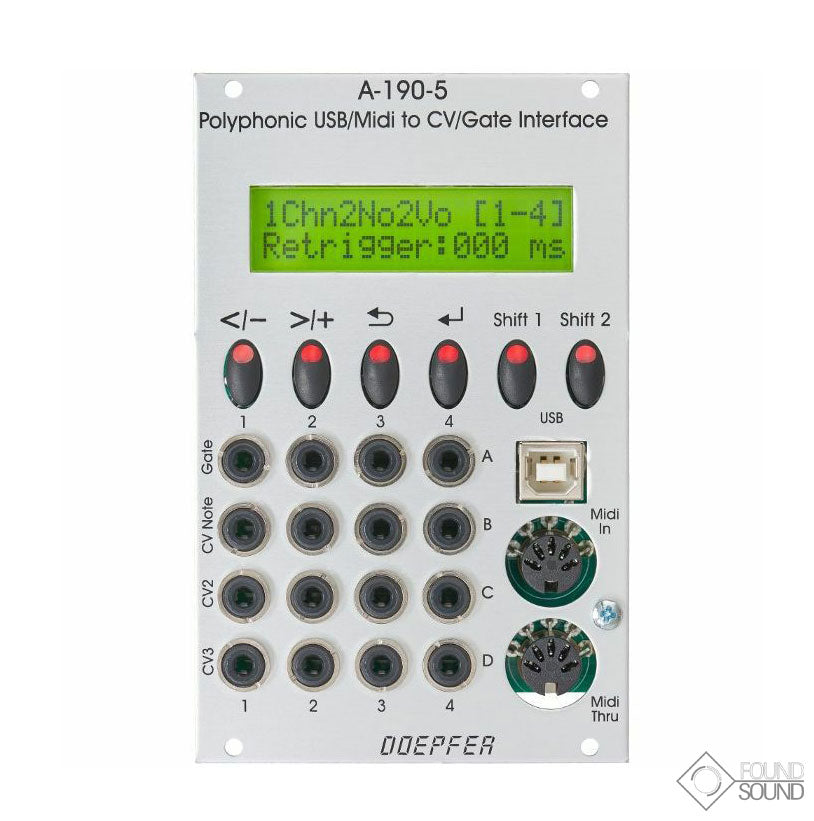

The A-190-5 is a four-channel MIDI-CV interface for playing polyphonic patches. For each voice it generates a pitch control (1V/oct), two aux CVs and a Gate signal. The two additional control voltages can be controlled via Midi Velocity, Volume, Modulation, Pitch Bend, After Touch, and more. Features four operating modes:
- 4-Voice monophonic (ie to control 4 monophonic voices on 4 consecutive midi channels)
- 4-Voice polyphonic (ie for controlling 4 monophonic voices on a midi channel) with different assignment algorithms (eg rotating / non-rotating)
- 2 Voices polyphonic (ie to control 2 monophonic voices on a midi channel)
- Unison
Video: https://youtu.be/3NTQuN-Gwhw?t=153
Product Specs
- Item Number: 10246
- Make: Doepfer
- Model: A-190-5 USB MIDI-to-CV / Gate Interface
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: MIDI Quad
- Made In: Germany
- MPN: A-190-5
- EAN: 4250711119058
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 16 HP 55 mm deep
- Power*: 120 mA +12V 40 mA -12V ? mA 5V
* User contributed details
