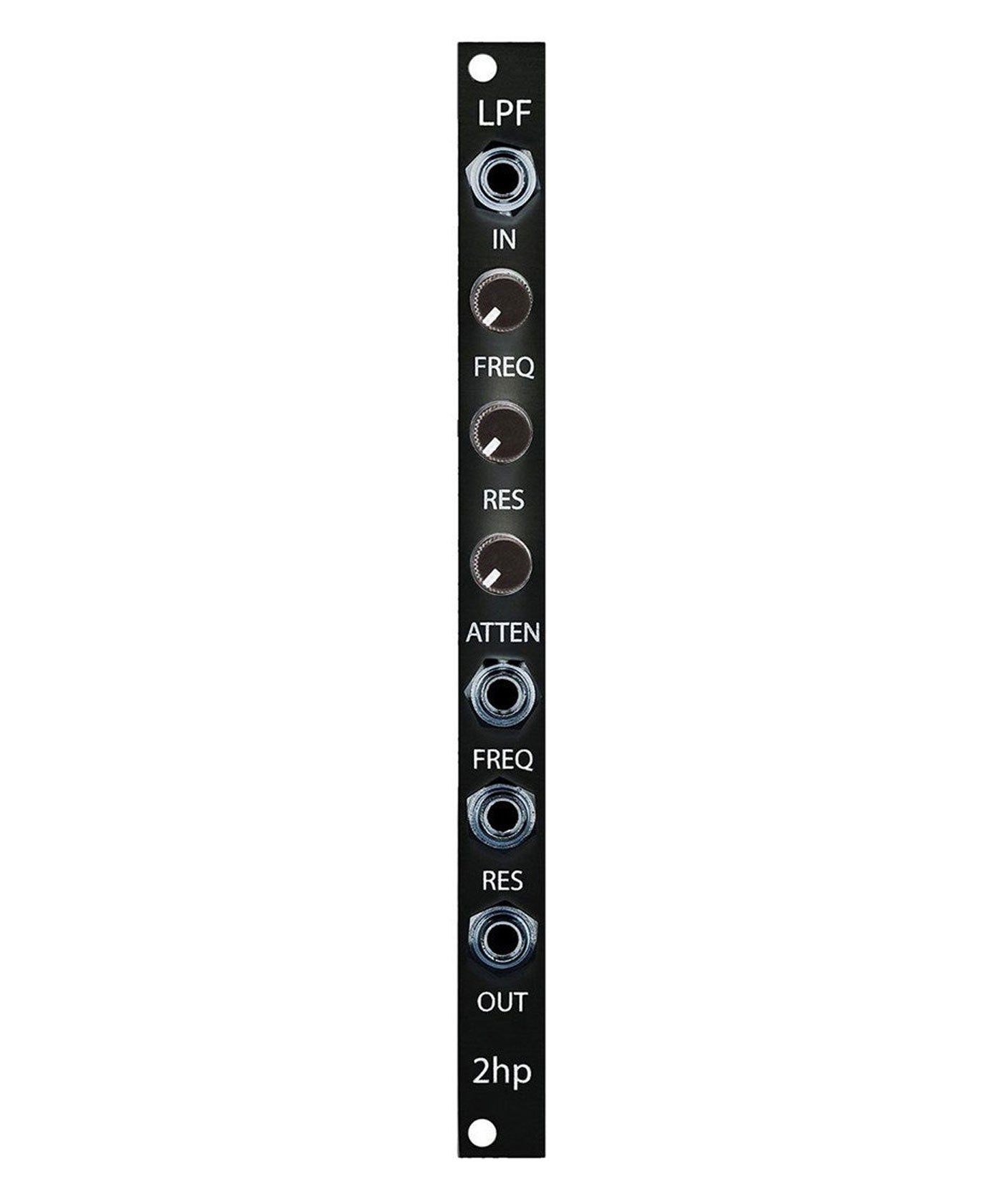

LPF is a four-pole, voltage controlled low-pass filter. Its 24 dB per octave slope and OTA topology provide a smooth, buttery character. Resonance can be pushed to self oscillation, turning it into a sine wave VCO with accurate 1V/oct tracking across four octaves.
In addition, CV over resonance gives dynamic sound shaping possibilities under voltage control. Hit the slope with LPF.
- Analogue, voltage controlled low pass filter
- Classic four pole, OTA topology
- CV over resonance
- Capable of self oscillation
- Accurate 1V/oct tracking across four octaves
- Skiff friendly
Video: https://youtu.be/Oy44pIaU40E
Product Specs
- Item Number: 10008
- Make: 2hp
- Model: LPF - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Filter
- Made In: United States
- MPN: 2hp_LPF_Black
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 2 HP 42 mm deep
- Power: 20 mA +12V 20 mA -12V 0 mA 5V
