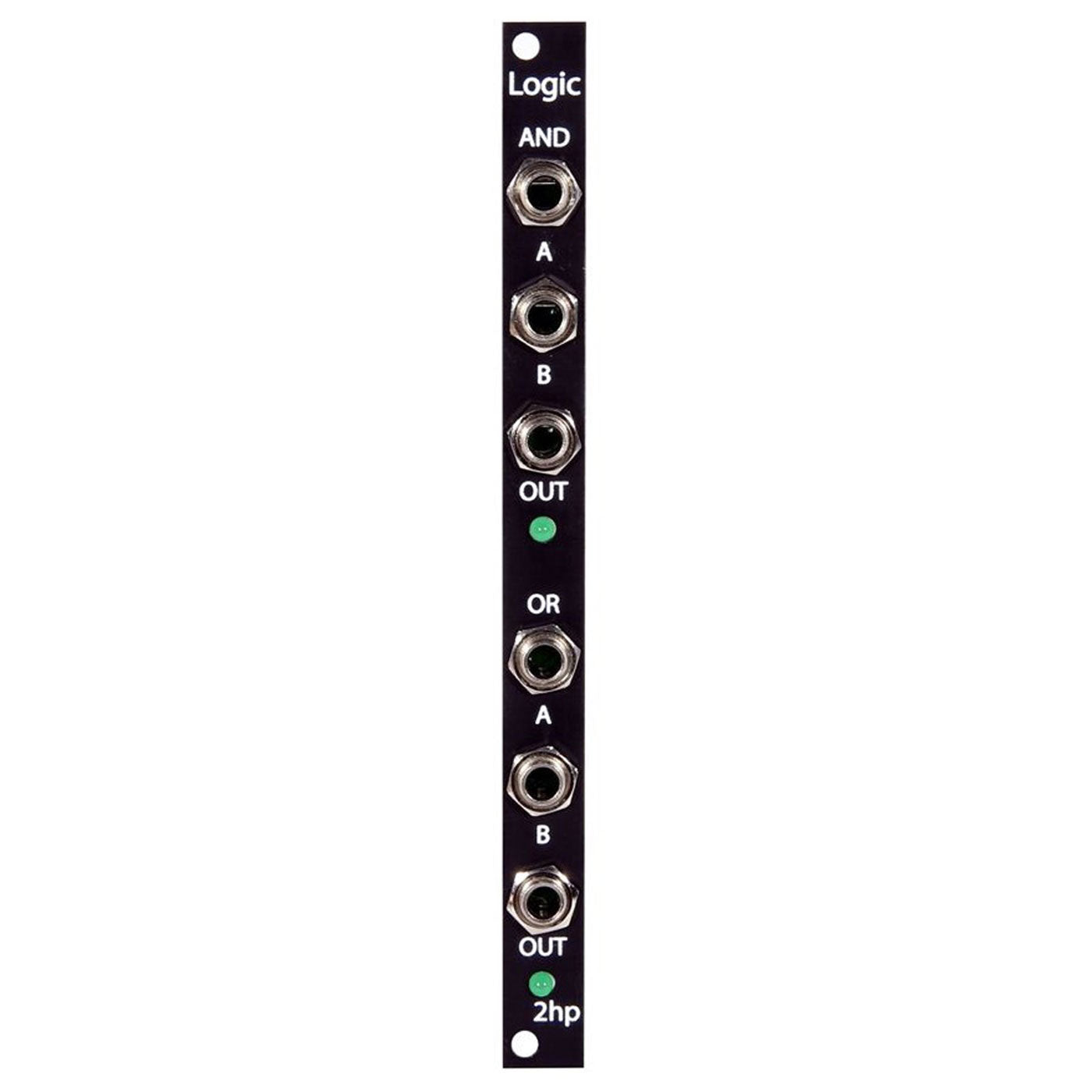

Logic is a 2 channel, boolean gate operator. It provides two unique logic operations: AND and OR. The AND Channel is useful for gating existing rhythmic events within a patch.
Conversely, The OR channel is well suited for mixing two timing events down to a single output, creating interesting polyrhythms and syncopations from existing gate signals.
Channel 1 normals to channel 2 if there is no cable present
- AND logic operations
- OR logic operations
- Max Power Consumption: 35 mA = +12V, 3 mA = -12V
- Skiff friendly
Product Specs
- Item Number: 10007
- Make: 2hp
- Model: Logic - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Logic
- Made In: United States
- MPN: 2hp_Logic_Black
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 2 HP 42 mm deep
- Power: 35 mA +12V 3 mA -12V 0 mA 5V
