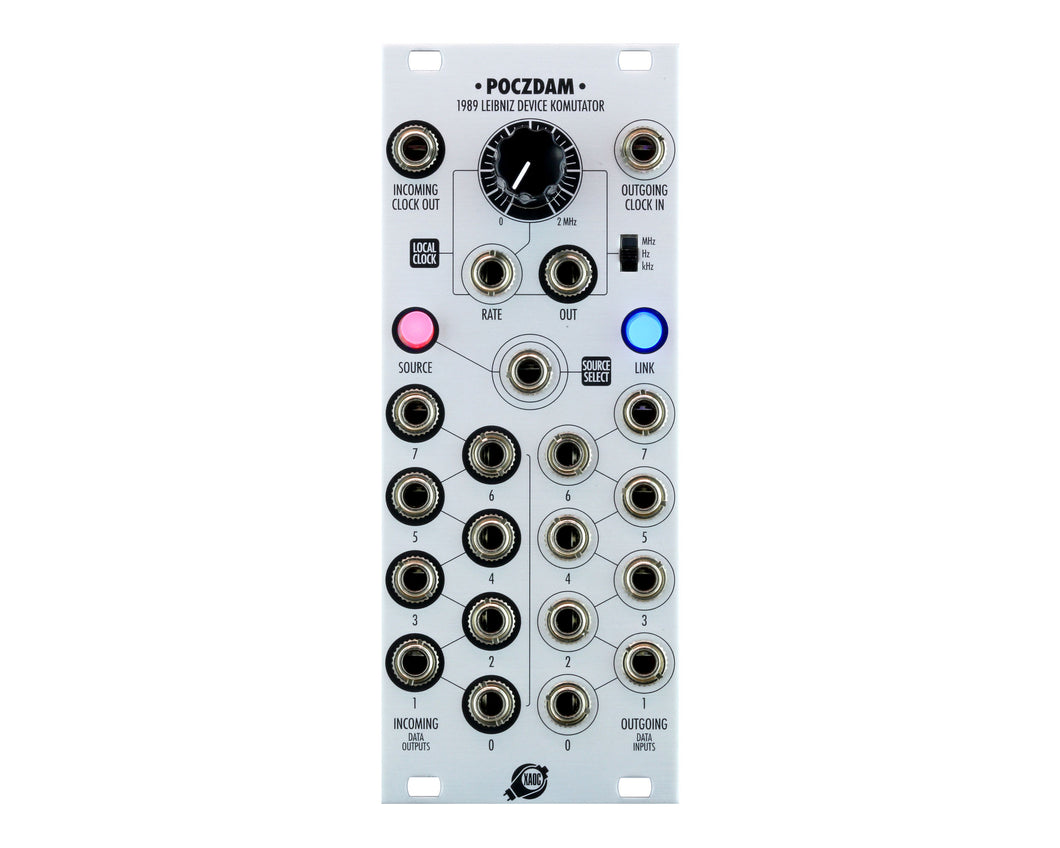

LEIBNIZ DEVICE KOMUTATOR Model of 1989
Poczdam is a 10hp binary data routing solution for the Xaoc Devices Leibniz subsystem. It allows manual and remote switching between two Leibniz data sources, modifying individual bits of the data stream, and re-clocking the data with its onboard voltage controlled wideband oscillator, or with any external clock signal. Poczdam is particularly useful with complex Leibniz setups that need to reconfigure the data flow between multiple modules. However, it can also be employed in small creative patches, e.g. for waveform splicing, disrupting rhythmic loops or generating digital chaos.
- component of the Xaoc Devices Leibniz Binary Subsystem
- routing Leibniz data
- reclocking Leibniz data
- additional CV clock generator (up to 2MHz)
- 10HP
- 30mm depth (including ribbon cable brackets)
- +12V: 20mA / -12V: 10mA / +5V: 0mA
Video: https://youtu.be/nOVYcTYVEzk
Product Specs
- Item Number: 24095
- Make: XAOC Devices
- Model: Poczdam
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Clock Generator Digital Switch
- Made In: Poland
- MPN: XAOC-POC
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 10 HP 30 mm deep
- Power: 20 mA +12V 10 mA -12V 0 mA 5V
