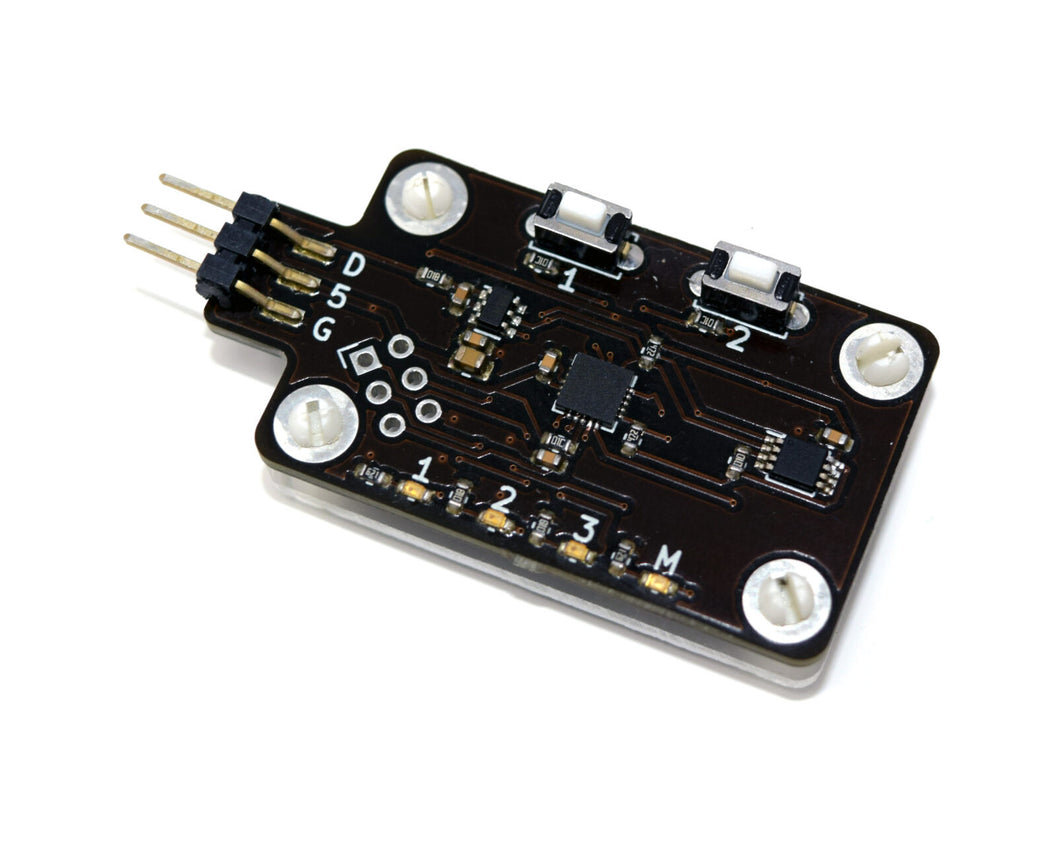

The temperature board features two output modes: a continuous CV or a trigger.
CV Mode: The board will output a continuous voltage in range 0 – 5 V depending on the measured temperature and scaled to the set lower and upper temperature limit.
Trigger Mode: The board will generate a trigger whenever the measured temperature rises above the set upper limit temperature. LED 1 will blink whenever a trigger is generated. The sensor covers a temperature range from -55°C to +125°C.
Video: https://youtu.be/z3YPU0nD1XI
Product Specs
- Item Number: 38251
- Make: KOMA Elektronik
- Model: Temperature Sensor
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- MPN: TEMPSENS
