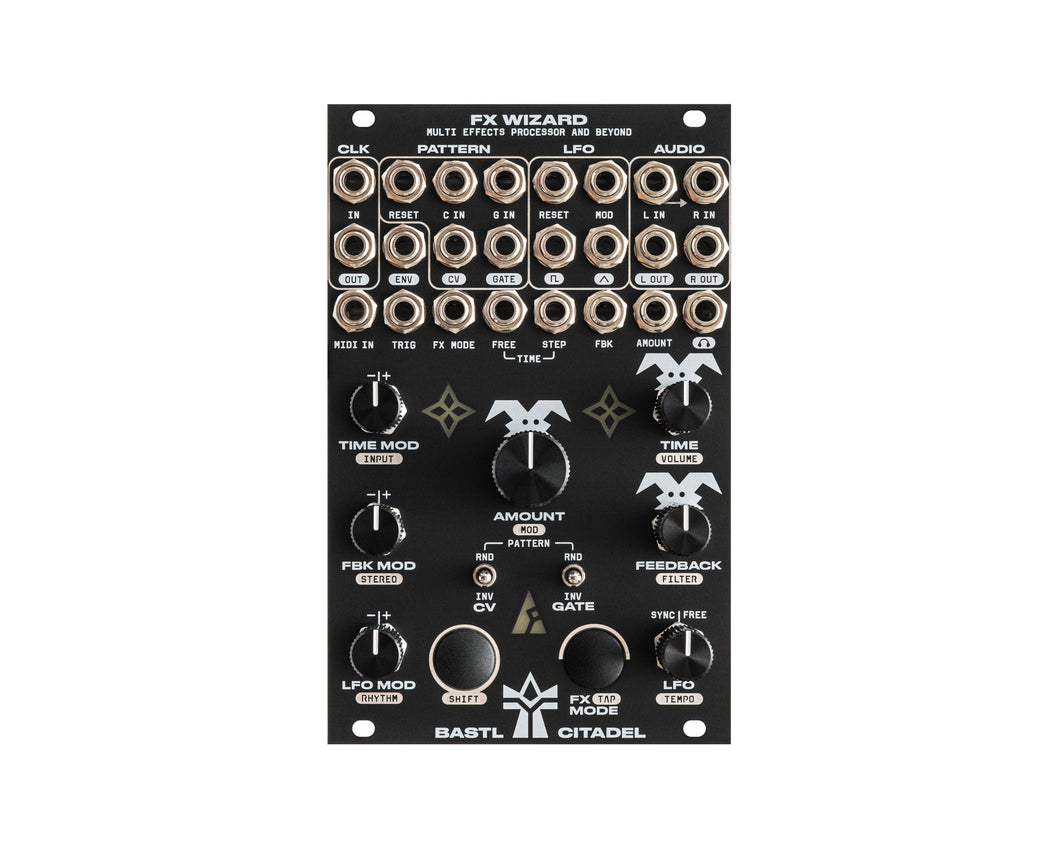

Bastl Instruments Citadel FX Wizard

The CITADEL FX WIZARD is module that empowers you to explore the limits of sound processing through modulation and modularity. Use 9 simple yet refined stereo effects, or go nuts with modulation and immerse in a powerful glitch and sound design heaven.

Instead of navigating through preset effects, you can craft your own unique effects with dynamic behavior using modulation. The FX WIZARD embraces happy accidents, sparking excitement with unexpected and unheard sonic transformations.

The Citadel has a reversible front panel with FX WIZARD on one side and WAVE BARD on the other side. It also comes with Bastl's custom designed tool to make the panel switching as easy as possible. You can load and try different Citadel/Kastle 2 present and future firmwares and updates with a USB port (on the back).

Features

• 9 FX modes
• Delay (max time in stereo is 1.15s)
• Flanger
• Freezer
• Panner
• Crusher
• Slicer
• Pitcher
• Replayer

• Shifter

• Stereo audio processing at 44kHz/16-bits

• Time parameter with attenuverting modulation (S&H or free)
• • Feedback parameter with attenuverting modulation
• AMOUNT mix with attenuverting modulation
• FILTER in the feedback with Lowpass/Highpass
• STEREO detuning for each FX MODE
• FX MODE cv input with attenuation to change modes with CV

• TRIG input to synchronise effects with tempo

• LFO with triangle and pulse output, reset input, attenuverting modulation, synced or free

• Tempo Generator with tap tempo and divider with external clock

• Pattern Generator (tempo synced) with GATE and CV output and patch programmability

• Patchable envelope follower

• Stereo eurorack-level DC coupled input with input gain (up to +12db), accepts up to -10V to + 10V

• DC coupled stereo eurorack-level output, -5V to +5V
• Stereo headphone output capable of driving headphones up to 250 Ohm
• Analog sync input

• Analog sync output

• TRS MIDI Input (clock, notes, CCs, pitch bend)

• USB-C on the back of the module (firmware updates, USB MIDI in/out)

Video: https://youtu.be/yf3LLBh8bc8

Product Specs

• Item Number: 39742
• Make: Bastl Instruments
• Model: Citadel FX Wizard
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Delay Effect Panning Pitch Shifter Shift Register Dual/Stereo
• Made In: Czech Republic
• MPN: Bastl_Citadel_FXW
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 16 HP 24 mm deep
• Power*: 60 mA +12V 20 mA -12V 0 mA 5V

* User contributed details
