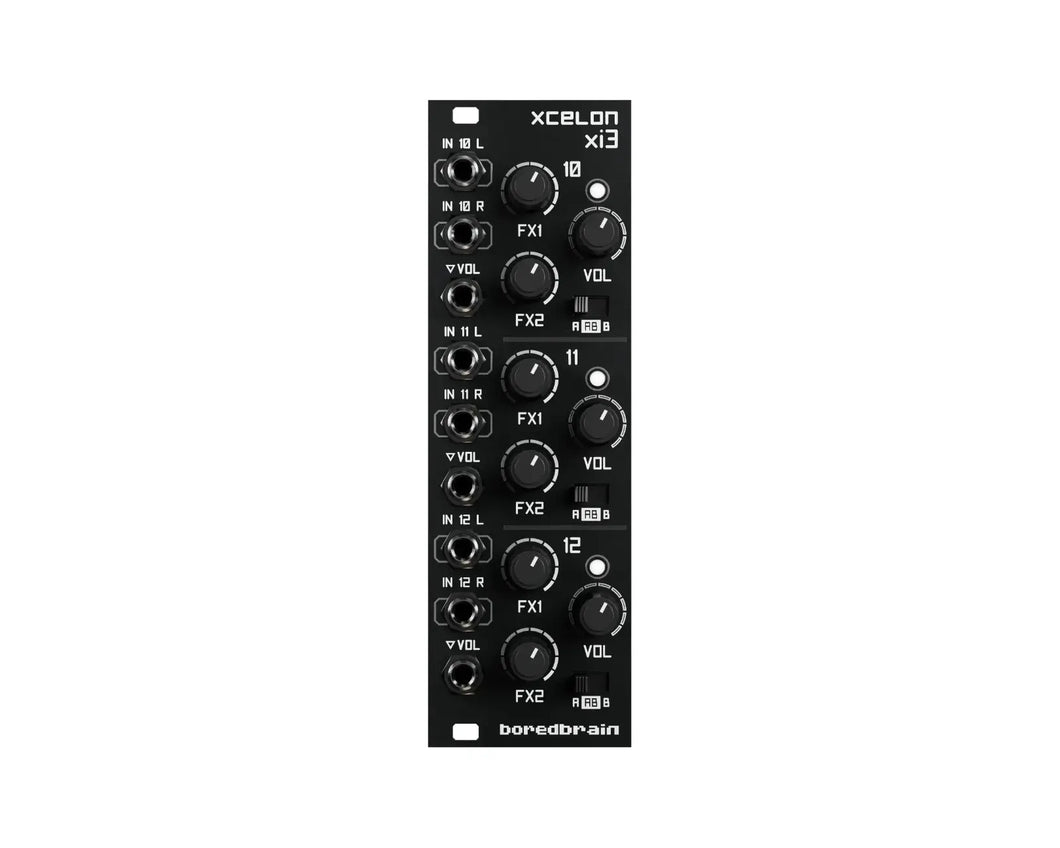

Xcelon Xi3 is a slim three-channel stereo input expander des igned for signals that don’t require the same degree of hands-on control offered by the main mixer. It features dedicated volume control with CV, stereo FX sends, and A/B mix bus routing per channel—all in just 8HP. Xi3 is ideal for FX returns, stereo submixes, and parallel signal integration.
Features
- Adds three stereo/dual-mono channels to Xcelon mixer in just 8 HP
- Two stereo FX sends and two stereo output mix busses selectable per-channel
- VCA-based volume controls with CV input and responsive LED indicators
- Configurable jumpers for dual-mono operation allowing up to six mono sources
- Pre/post-fader direct output ports for all three stereo channels
Tech Specs
- Audio Inputs: 6 x 3.5 mm jacks (3 stereo pairs)
- CV Inputs: 3 x 3.5 mm jacks (0 to +5 V)
- Input Impedance: 47 kΩ
- Width: 8 HP
- Depth: 1.5 in (38 mm)
- Weight: 4.4 oz (125 g)
- Power: +12 V 55 mA, -12 V 50 mA
Video: https://youtu.be/M7wLSPBYNPA
Product Specs
- Item Number: 38055
- Make: BoredBrain
- Model: Xcelon Xi3
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Expander
- Made In: United States
- MPN: BB-Xi3
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 8 HP 38 mm deep
- Power*: 55 mA +12V 50 mA -12V ? mA 5V
* User contributed details
