* This item is not currently in stock, orders will be fulfilled when the item becomes available.

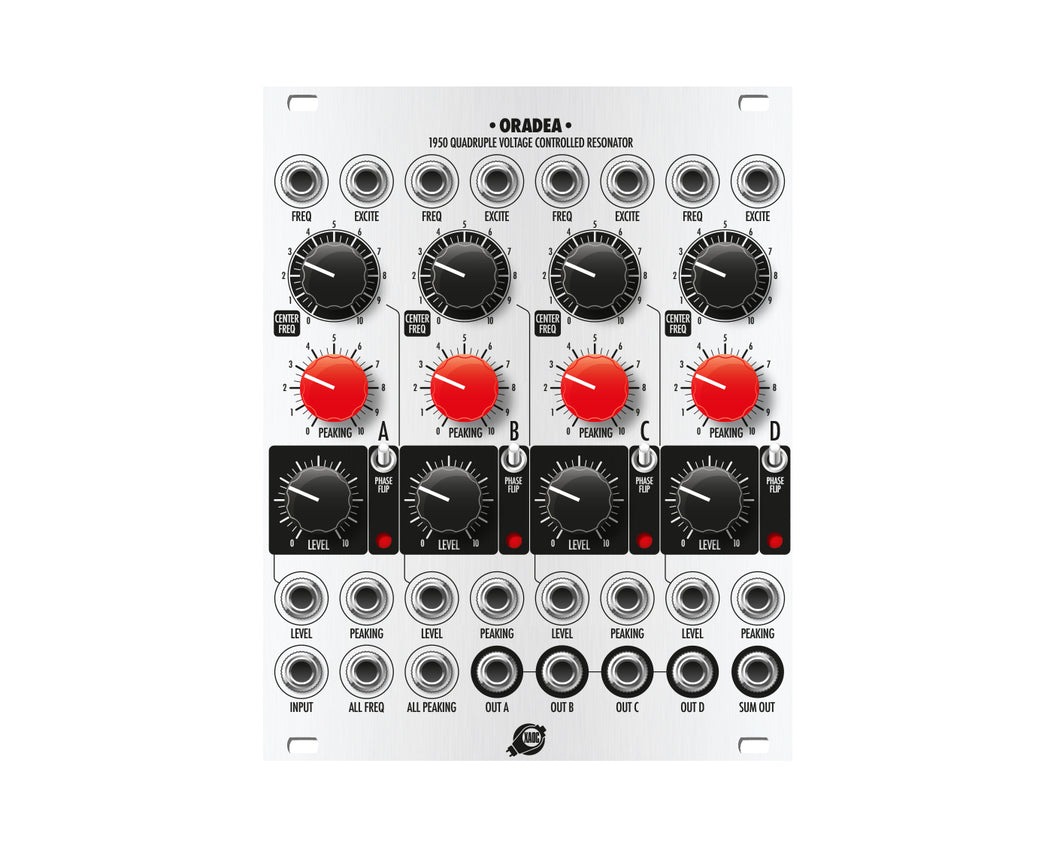

Oradea is a quadruple voltage controlled analog resonator you can use to enhance external audio or to generate tones.
It can mimic the resonant characteristics of physical objects or spaces. Oradea's frequency response can be tuned over the entire range of audible frequencies with V/oct response.
The module offers precise control over the resonance of each band up to extremely high values with long response to pinging. Oradea is also equipped with four individual trigger inputs for exciting its filters with internally generated, uniform, and finely tuned impulses.

Individual outputs allow you to externally process each band separately. Resonant frequency gain compensation prevents uncontrolled distortion (the gain at peak does not increase with resonance). There is a VCA and a polarity switch in each channel, so you can remotely shape the overall amplitude and manually change the phase response.

By adding Oradea's expander Arad, you gain three extra features. Arad features direct audio inputs for individual channels, so you can use each channel for a different audio source (the individual channel outputs are already incorporated into the main module). There are buttons and gate inputs for manual and/or remote clickless muting and unmuting of the channels. Another group of four buttons acts in parallel to the TRIG inputs of Oradea, allowing for manual triggering.
Features
 * Four independently adjustable bands
 * Manual and voltage control over tuning frequency, resonance, and level
 * Joint and individual CV inputs with calibrated V/oct tracking
 * Dedicated trigger inputs for exciting individual channels
 * Individual outputs and mixed output
 * Signal polarity switchable for each channel
 * Signal level indicators with multi-colour LEDs
Video: https://youtu.be/PVUsThZp9V4
Product Specs
- Item Number: 37422
- Make: XAOC Devices
- Model: Oradea
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Filter Quad Resonator VCA
- Made In: Poland
- MPN: XAOC-ORADEA
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 20 HP 40 mm deep
- Power: 210 mA +12V 190 mA -12V 0 mA 5V
