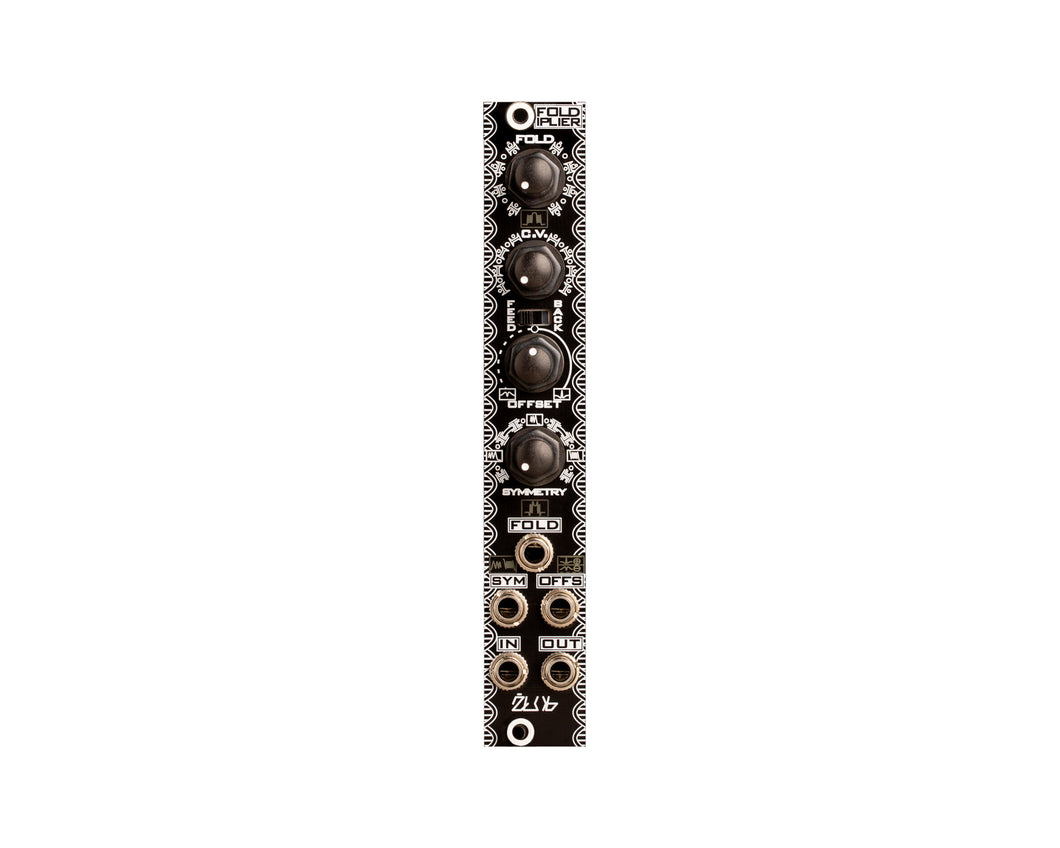

The Foldiplier is a 4hp odd/even harmonics generator with 2 different oscillating feedback paths. The folding core of the design originates from the odd harmonics (middle)section of the Serge Wave Multiplier. But the Foldiplier adds voltage control over the symmetry and offset as well as a switch for feedback featuring a transistor based oscillating fuzz inspired by the Hemmo Bazz Fuss. When these feedback oscillations mix with an incoming waveform some unpredictable and unique nonlinear timbres can be achieved. The module can also be used as a no-input experimental oscillator with the feedback switch engaged. All diodes in the module are silicon.
Specifications
- Width: 4hp
- Panel Material: Double Sided PCB panel with Classic and Soulless
- Reverse Power Protected
- Current Consumption: +12v: 40mA, -12v: 35mA
- Depth: 47mm or 1.75″
- All through-hole build
- Ships with M3 black nylon screws
Video: https://youtu.be/J7ROzFhWhKQ
Product Specs
- Item Number: 34705
- Make: Żłob Modular
- Model: Foldiplier Eurorack Harmonic Generator Module
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Frequency Divider Waveshaper
- Made In: United States
- MPN: ZLOB17
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 4 HP 47 mm deep
- Power*: 40 mA +12V 35 mA -12V 0 mA 5V
* User contributed details
