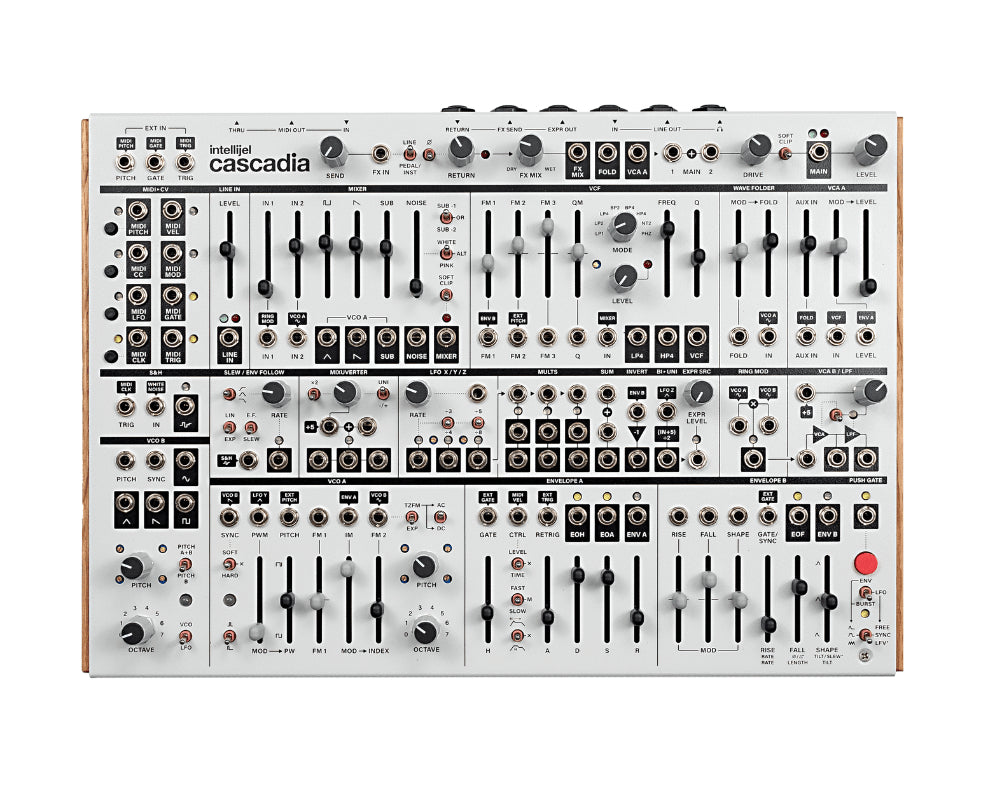

The Intellijel Cascadia is a semi-modular synthesiser, meaning that many of its capabilities reveal themselves to you without the need to insert a single patch cable. Cascadia’s default signal path is well-conceived and deep. But for those willing to dive even deeper, a plethora of new sounds are possible when you start re-routing signals using the many available patch points. And to allow for the ultimate flexibility, these patch points conform to the Eurorack standard, meaning you can expand Cascadia’s capabilities through the use of external modules.
Features:
- Performance-oriented, “East and West” Coast modern analog semi-modular synthesiser
- 101 jacks (plus 10 on rear), 34 sliders, 16 knobs, 28 switches, 36 leds and 5 push buttons
- Two precision analog VCOs (VCOA has TZ-FM with INDEX VCA, PWM and SOFT/HARD sync options)
- Eurorack compatible signal levels
- Liquid-sounding, cascaded 4-Pole multimode filter with extensive modulation options and unique modes
- ENV A: Versatile ADSR / AHDSR envelope generator with HOLD function and dynamic level/time control
- ENV B: Complex, beat syncable, multimode function generator with Envelope, LFO, and Burst generator modes
- Triple analog LFO with linked, divisible rates and CV control
- Comprehensive and precise MIDI to CV and GATE implementation with additional synced/tapped LFO and CLOCK outputs
- Six channel waveform mixer with asymmetric soft clipping
- Extensive utility section that includes Noise, S&H, Envelope Follower, Attenuverter, Buff Mults, Summer, Inverters, and connection to a digital potentiometer based guitar pedal expression control interface.
- Analog ring modulator
- Parallel “West Coast” style wavefolder
- Auxiliary VCA and 4-Pole Diode Ladder VCF combination for additional dynamics
- External effect send/return loop with line or guitar pedal levels and wet/dry mix
- Global output drive circuit with bypassable asymmetric soft clipping
- Balanced 1/4″ line inputs and outputs plus a dedicated headphone output
- Very Compact (fits in a backpack) and durable powder-coated enclosure with bespoke oak wood sides.
- Comes with 14 assorted patch cables, USB-A to USB-C cable, and an international power supply.
Video: https://youtu.be/upB-27GIGPA
Product Specs
- Item Number: 32362
- Make: Intellijel
- Model: Cascadia - White Fog
- Condition: Brand New
- Finish: White
- Categories: keyboards-and-synths ⇒ digital-synths
- Function: Synth Voice
- Made In: Canada
- MPN: CASCADIA-WHITE
- Modular Grid: Pedals ⓘ ＋
- Dimensions*: 348 mm wide 246 mm high
- Power*: 1000 mA / 15 V DC / Positive Center
