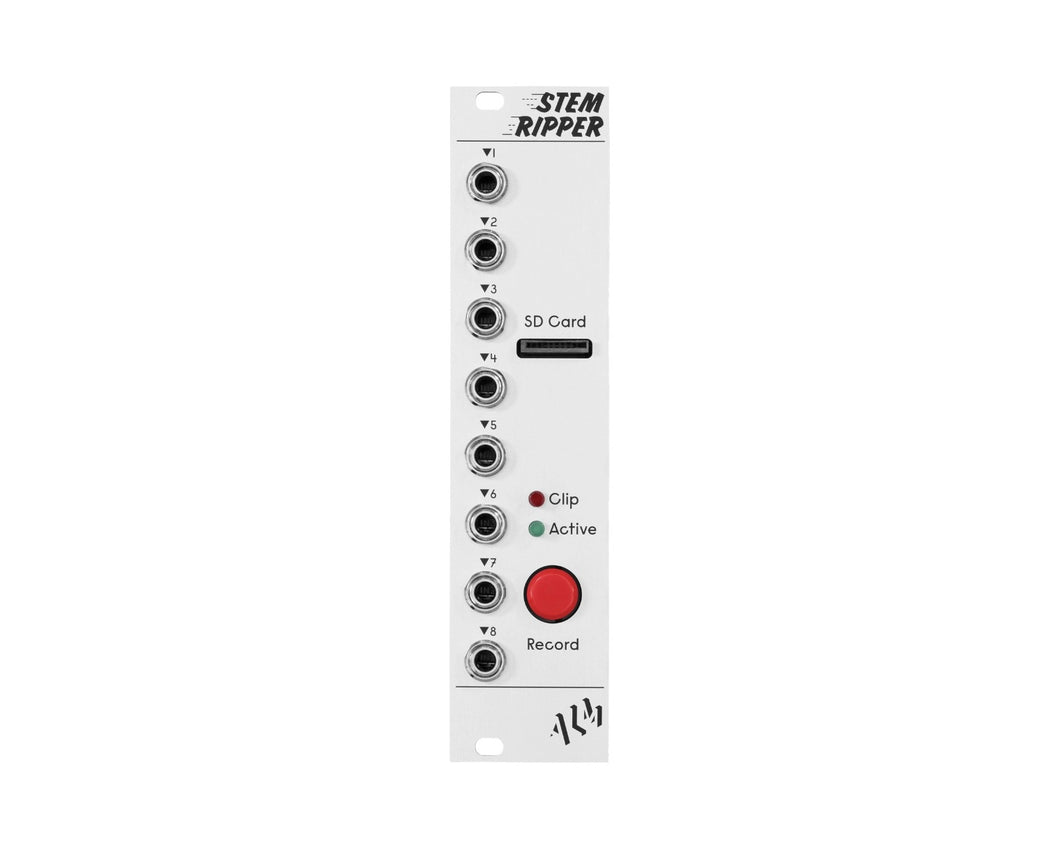

The ALM Stem Ripper is a compact 8 channel audio recorder designed for immediate full patch
recording without the need for external hardware. Use it to capture all audio stems of a patch with ease.
Patch stems are recorded directly to a micro SD card which can then be easily transferred to
a computer to mix, edit or archive patches. Each input is recorded as an individual track in a
16bit 44.1kHz multichannel date stamped WAV file.
Record time is limited only by SD Card size. Two additional tracks within the output WAV contain a configurable stereo mix down of the inputs. The module has large 20Vpp per input headroom with LED clip indication if exceeded.
An optional 2HP ’Thru’ output expander duplicates the 8 inputs to a row of unbuffered out-
puts, eliminating the potential need for stacking patch cables at the expense of more case
real estate.
A 64Gb SD card is included with the unit.
Features
- Simple quick full patch audio recording.
- 8 independent 16 bit 44.1kHz audio tracks.
- Direct recording to a micro SD card with recording time limited only by SD card size.
- Multichannel WAV file output for easy drag and drop functionality.
- Additional fixed stereo mix tracks with configurable levels.
- Accurate automatic date stamping of recordings with battery backed clock.
- 20 Vpp headroom per input with LEDs for clip indication and recording status.
- Optional ’Thru’ expander that allows signal to pass unbuffered through the Stem Ripper.
- Up to 1Tb sized SD cards supported.
- Skiff friendly with reverse power protection.
- 2 Year Warranty.
Video: https://youtu.be/HVivVJJmiC0
Product Specs
- Item Number: 38998
- Make: ALM Busy Circuits
- Model: Stem Ripper
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Sampling Utility
- Made In: United Kingdom
- MPN: ALM050
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 6 HP 32 mm deep
- Power*: 150 mA +12V 20 mA -12V ? mA 5V
* User contributed details
