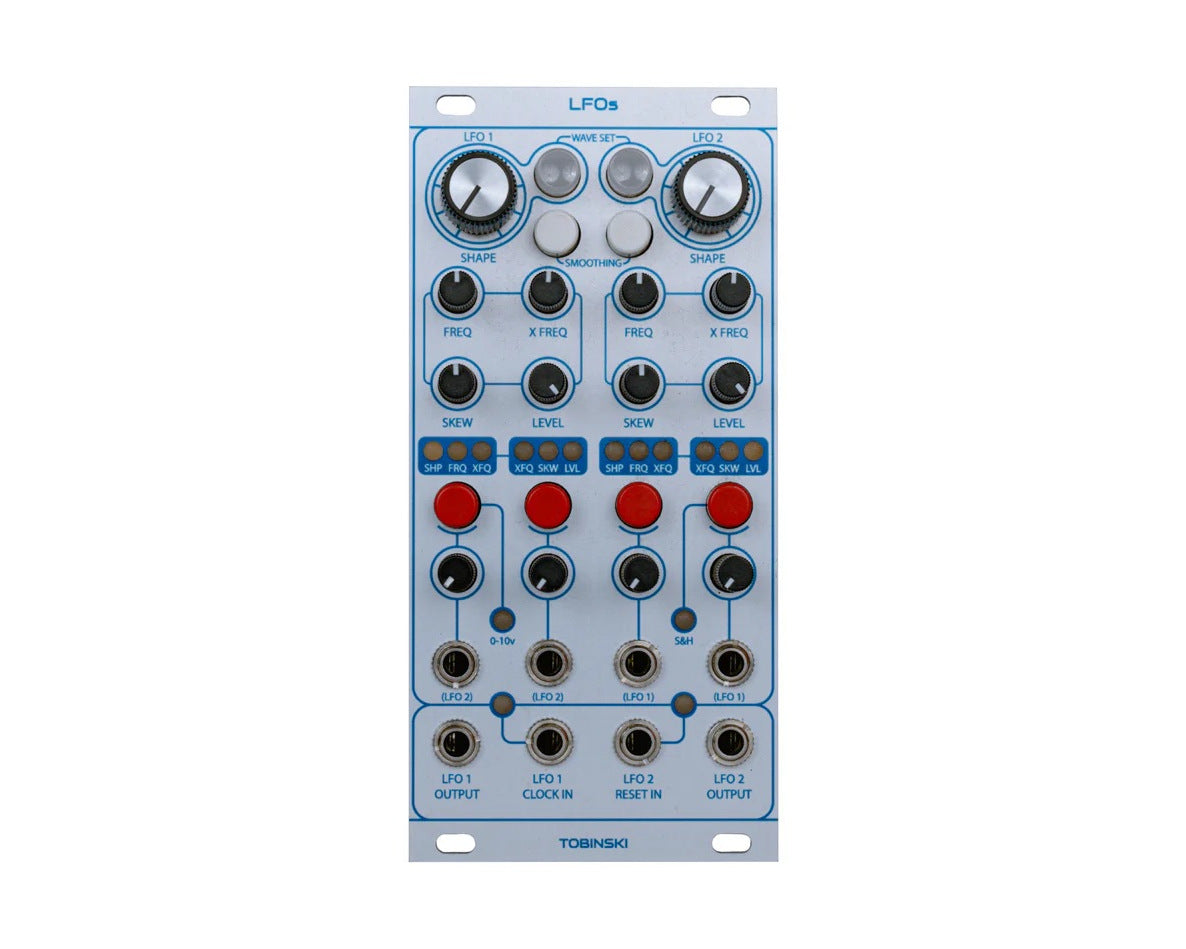

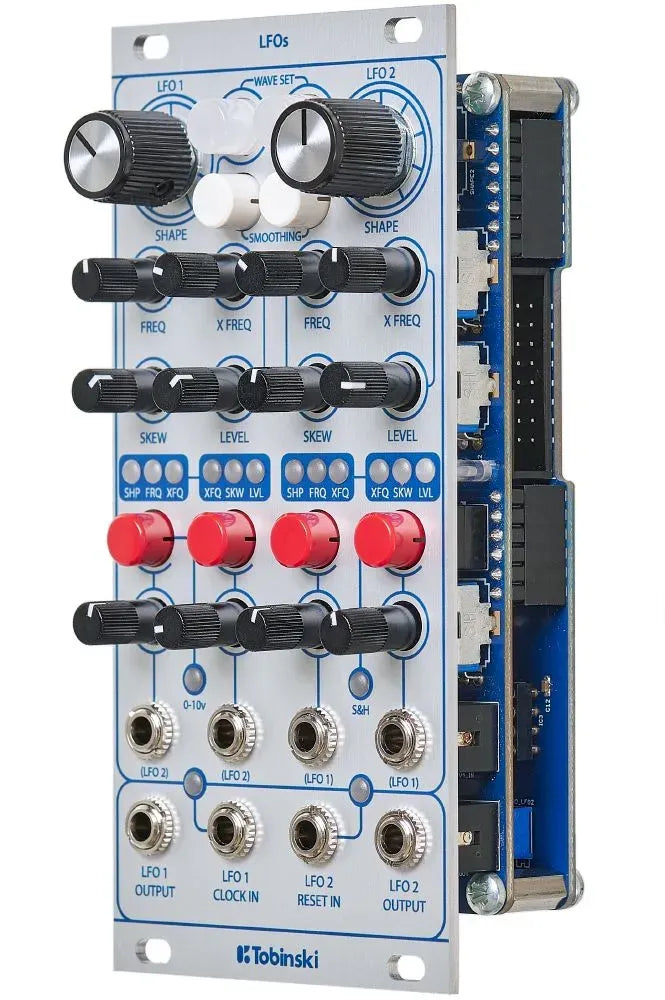

Tobinski's LFOs combines two complementary modulation circuits. The left side is built on the Electric Druid chip 'TapLFO3C'. It syncs easily to external clocks with some flexible multiplier/divider options to maintain rhythmic coherence. The right side houses a VCLFO10-based chip with reset capability and sample & hold functionality that quantises continuous waveforms into stepped voltages.
Each LFO offers 16 distinct waveforms across two banks ā beyond standard sine, triangle, and saw shapes, you will discover harmonic combinations and and more complex patterns there to evolve your patches. The skew parameter bends these shapes asymmetrically, while the wave smoothing switch softens any harsh transitions.
A great feature on hand is the integrated cross-modulation system. Each LFO automatically receives the other's output through normalised connections, creating intricate, evolving patterns without additional patching. Dedicated attenuators and destination selectors provide precise control over this interaction.
Features
- Two independent LFOs: Electric Druid TapLFO3C and VCLFO10-based.
- Sync clock input (TapLFO3C) and reset pulse input (LFO10) including S&H functionality.
- 16 selectable waveforms per LFO, split into two banks of 8.
- Frequency control with both freeform setting or multiplier/divider.
- Waveform skew control for asymmetry.
- Switchable wave shape smoothing.
- Level control of output amplitude.
- Dual CV inputs per LFO with attenuators and destination selection.
- Cross-modulation via normalled CV routing between LFOs.
Video: https://youtu.be/NZtf9_QFdRo
Product Specs
- Item Number: 36198
- Make: Tobinski
- Model: LFOs
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Clock Generator LFO Random Sample and Hold
- Made In: Germany
- MPN: TLFOs
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 12 HP 27 mm deep
- Power*: 40 mA +12V 45 mA -12V 11 mA 5V
* User contributed details
