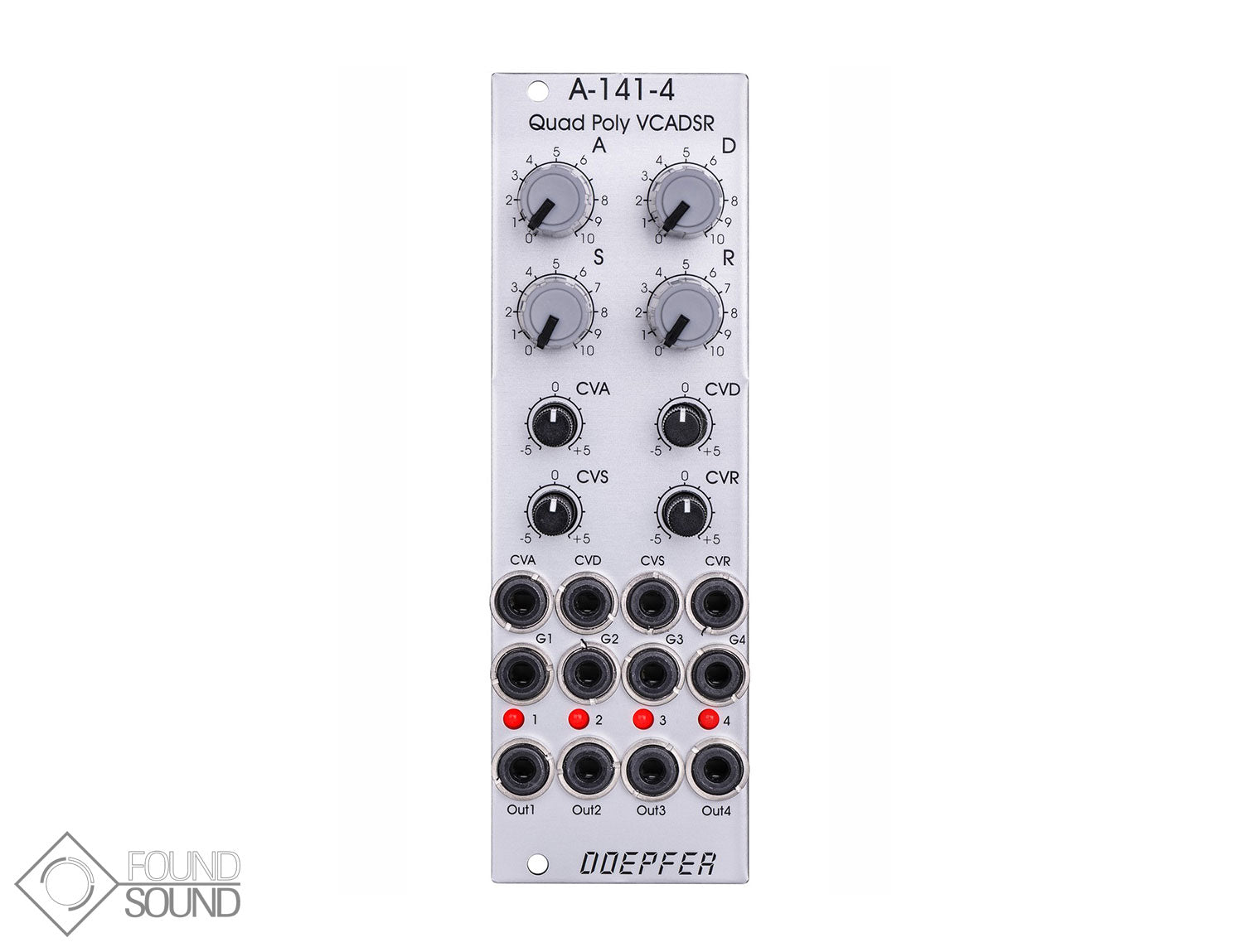

A-141-4 is an 8HP fourfold, voltage controlled envelope generator intended primarily for polyphonic applications. The module contains four ADSR-type envelope generators with exponential waveforms (charge-discharge curves of capacitors). All four units feature common, manual controls and control voltage inputs for the Attack (A), Decay (D), Sustain (S), and Release (R) parameters. Each of the envelope generators has a gate input, an envelope output and a control LED.
The output voltage of the envelopes is 0 - 10V. The Attack / Decay / Release times are between 1ms and 30s.
Brand new with warranty.
Video: https://youtu.be/nvK69p7BGuo
Product Specs
- Item Number: 9486
- Make: Doepfer
- Model: A-141-4 Quad-Poly-VCADSR
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Envelope Generator Quad
- Made In: Germany
- MPN: A-141-4
- EAN: 4250711114145
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 45 mm deep
- Power*: 70 mA +12V 60 mA -12V ? mA 5V
* User contributed details
