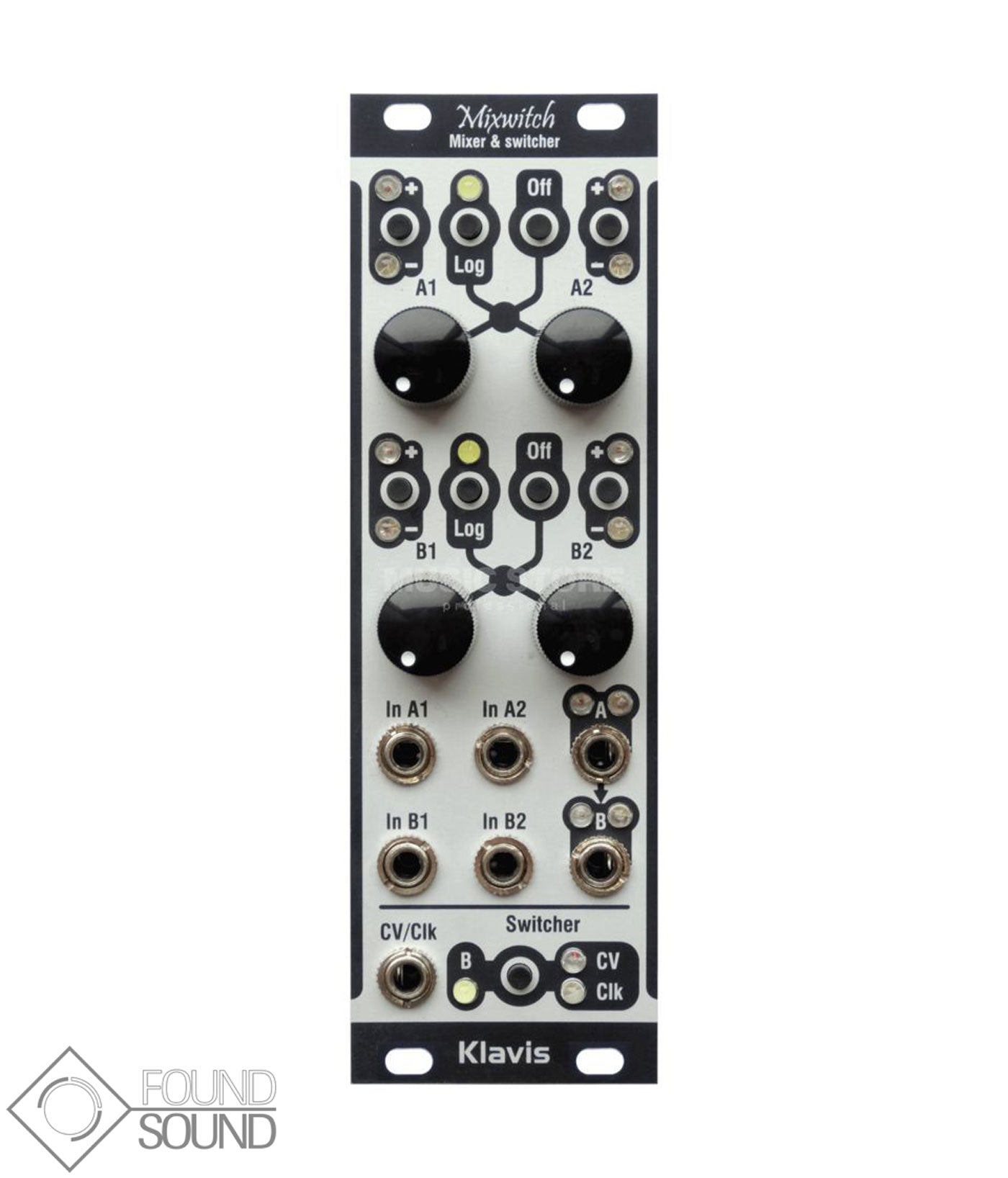

8Hp Mixer & Switcher.
- Dual 2 to 1 mixers, normalised into 4 to 1
- Click-less mute per mixer
- Click-less polarity inversion per input with LED indication
- Modulation vs. audio mode selection (lin/log) per mixer, with change of potentiometer curve response and LED indication.
- Two LEDs on each output showing the amplitude and polarity of the output signal
- Unconnected inputs present a fixed voltage to ease offset creation
- Full range DC-coupled analogue signal path
- Settings retained over the power cycle
Brand new with warranty.
Video: https://youtu.be/qXgJpWQAVaE
Product Specs
- Item Number: 9330
- Make: Klavis
- Model: Mixwitch - Silver
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Attenuator Mixer Polarizer Switch
- Made In: Belgium
- MPN: MW-MSL
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 25 mm deep
- Power*: 39 mA +12V 24 mA -12V 0 mA 5V
* User contributed details
