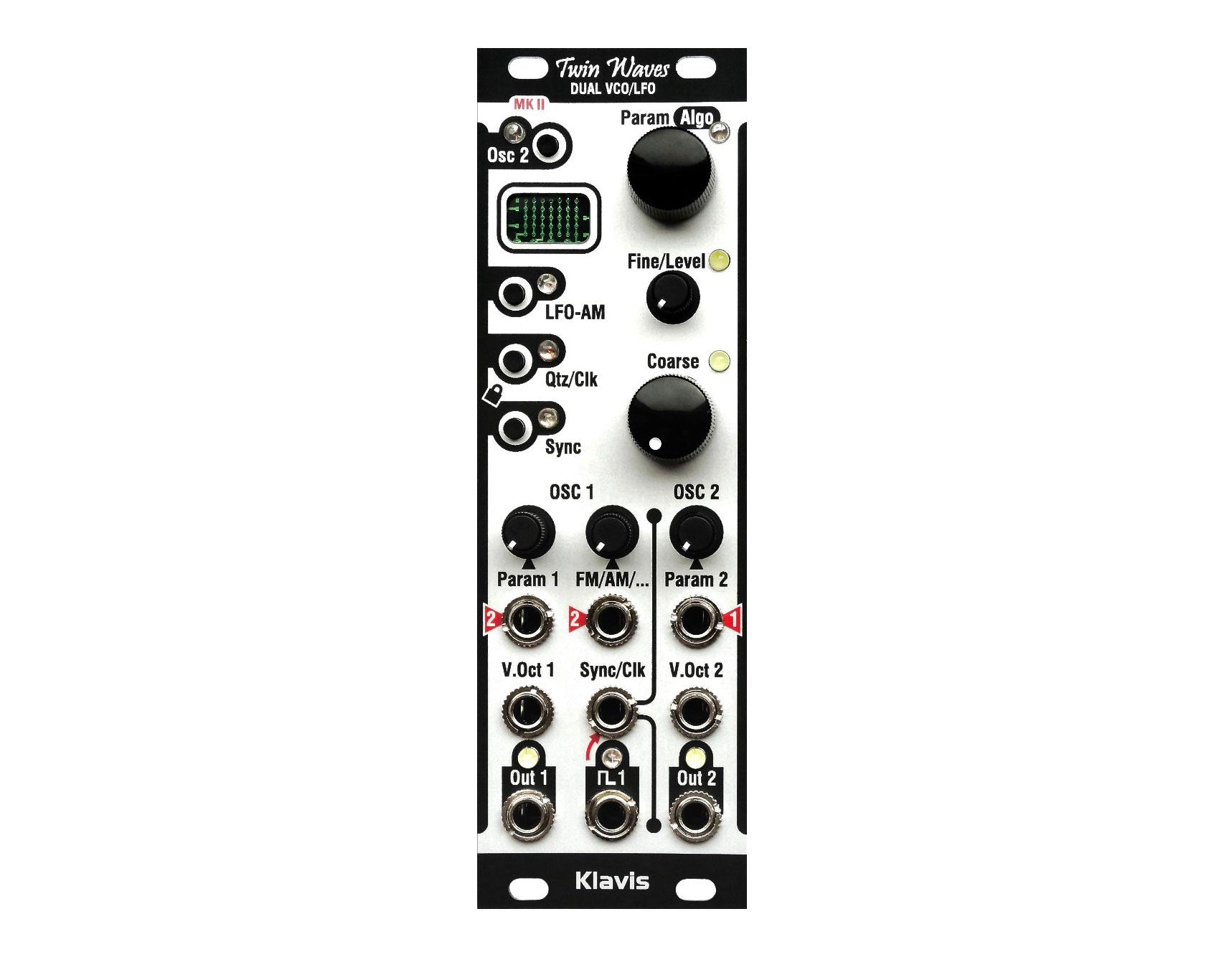

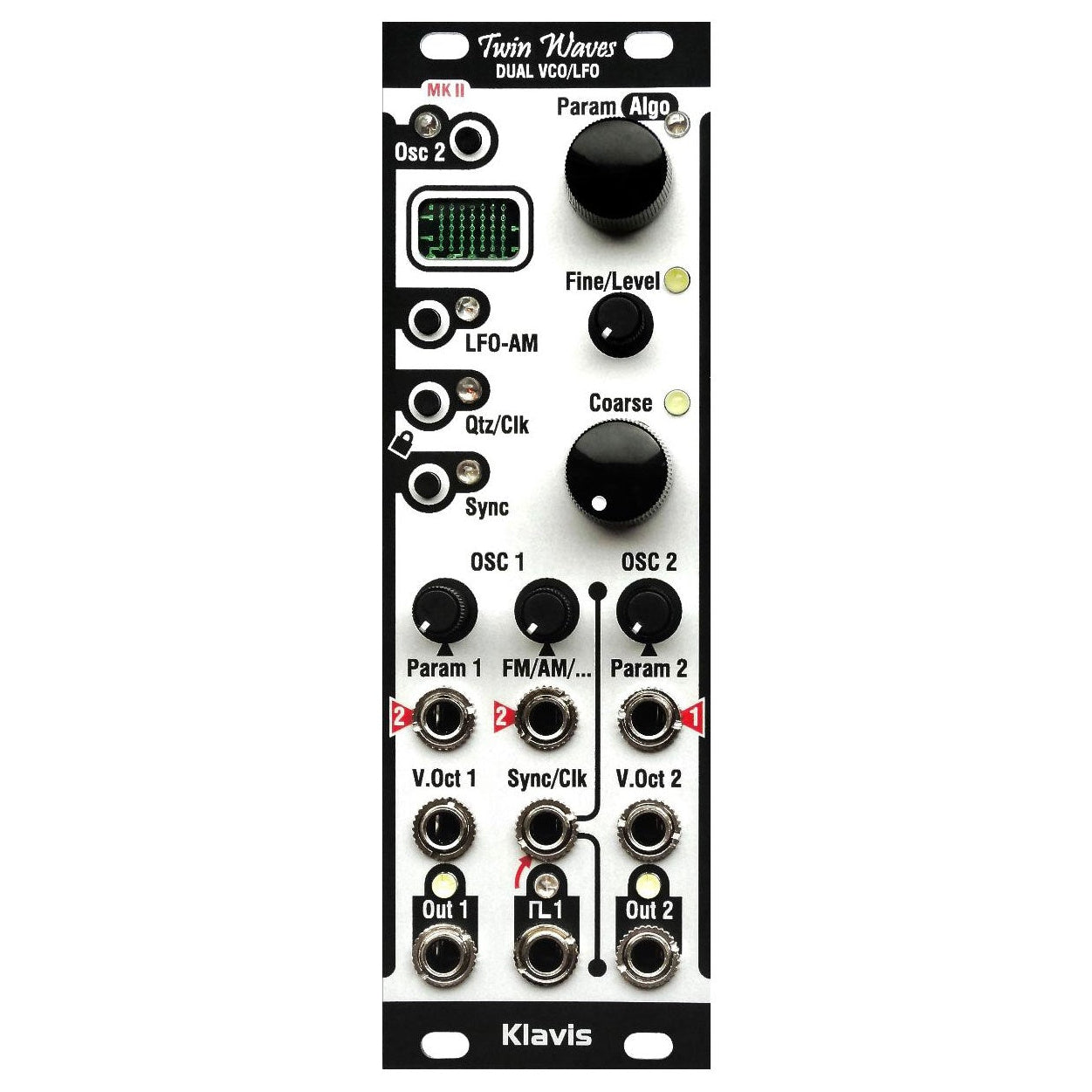

The Twin Waves MKII evolution brings a redesigned layout, additional knobs for more hands-on fun and semi-modular cross-patching between sections. All of the original features are present in 8HP: a top selection of synthesis techniques, each with their key parameter directly at hand, enriched by a full set of complementary features. More than ever the Twin Waves is versatility at its best.
- Two oscillators independently set as VCO, LFO or random
- Features in VCO mode:
- V/Oct tracking over 10 octaves
- Through zero and linear FM
- Sub-octave output
- Hard & soft synchronization
- VCA control and CV algorithm selection
-
Quantizer with various scales
-
Algorithm-based synthesis to choose among:
- Wave shaping
- Phase modulation
- Phase positioning of multiple waves
- 5 stacked oscillators with unison detune
- Self-sync with phantom oscillator
- Additive synthesis (7 waves)
- Variable bit reduction (bit-crushing)
- Ring modulator with its own 2nd oscillator
-
Noise with LPF, BPF, or resonant VCFs
-
Features in LFO mode:
- Simultaneous signal and cycle trigger outputs
- External wave synchronization/restart
- Clock controlled rate with CV multiplier and divider
- CV and knob control of output level
- Algorithm based wave engine with a selection of:
- Wave shaping
- Phase modulation
- Random levels and vectors (also Brownian)
-
Randomly spaced/warped triggers and waves
-
Display with contextual icons and instant reminder help text
- LEDs indicating potentiometer vs. value matching, switch settings and output signals
- Automatically saved settings for instant recall at power on
- Firmware update via a simple audio file
Fundamental frequency range in VCO mode: 10Hz to 10KHz = over 10 octaves VCO audio range (incl. harmonics): DC to 20KHz LFO frequency range (internal / external clocking): 2 minutes to 2KHz / several days to 2KHz Input and output conversion: 16-bit ADCs, 24-bit 96KHz DACs
Video: https://youtu.be/36QjsN9Sm6s?t=11
Product Specs
- Item Number: 9328
- Make: Klavis
- Model: Twin Waves MK II - Silver
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Digital LFO Oscillator Dual/Stereo Noise Quantizer Ring Modulator Random
- Made In: Belgium
- MPN: TW2-MSL
- Modular Grid: Eurorack ⓘ +
- Dimensions: 8 HP 21 mm deep
- Power: 52 mA +12V 17 mA -12V 0 mA 5V
