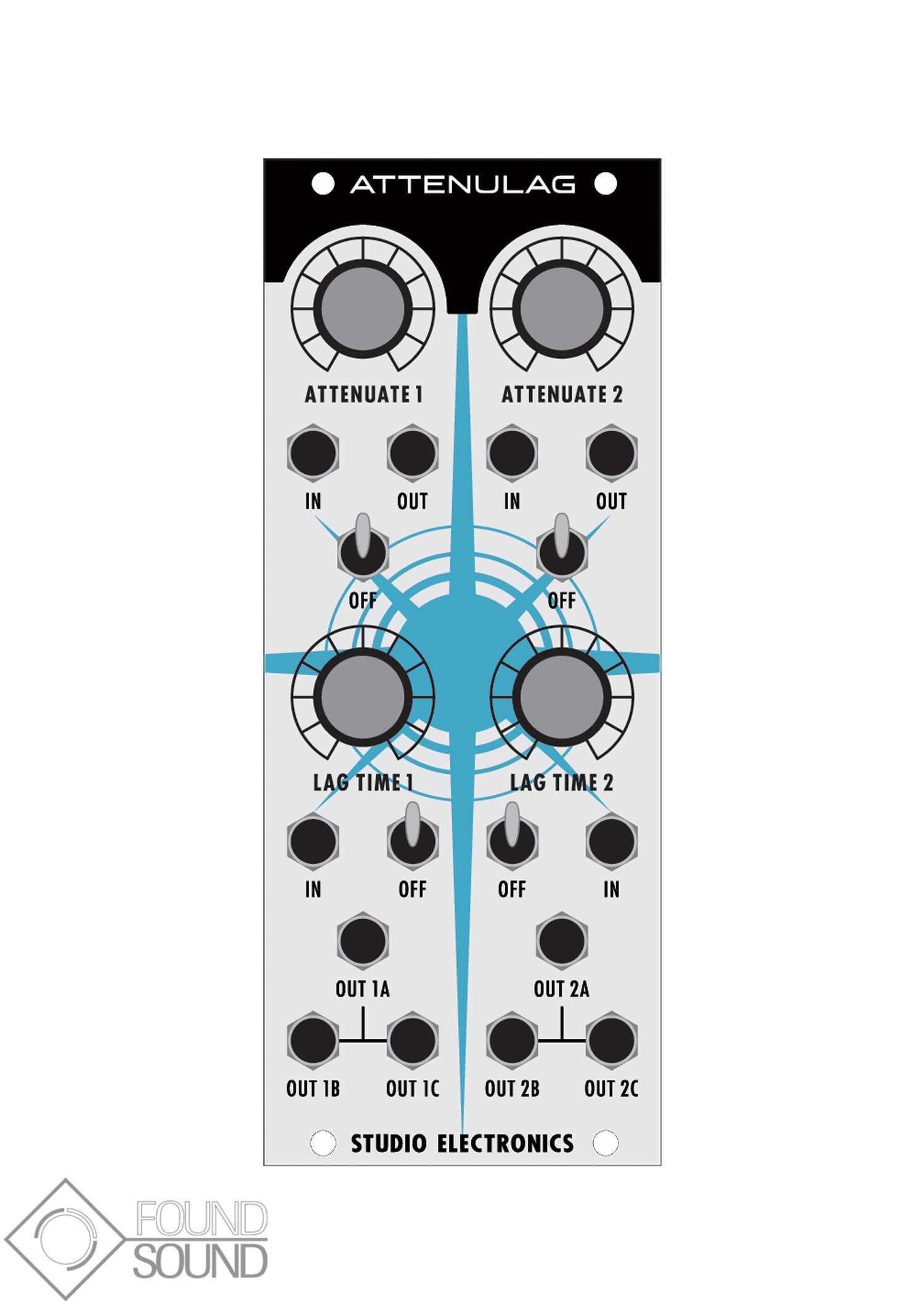

Studio Electronics Attenulag

10HP Multi-purpose heavy lifter. The attenuators reduce level, audio or CV, when switch is set to off. With the switch up the audio/signal passes through at full level. The inputs are linked together: patching into channel 1 drives both attenuators; patching into channel 2 breaks the link. Experimentation with key tracking to create alternative tunings, or interaction with audio inputs that don't afford attenuation—does good things. The two lag circuits provide a handy CV mult/hub for oscillator and filter tracking and are also linked together unless both channels are patched.

Brand new with warranty.

Product Specs

• Item Number: 9114
• Make: Studio Electronics
• Model: Attenulag
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Dual/Stereo Multiple Slew Limiter Utility
• Made In: United States
• MPN: BM-ATTEN
• UPC: 602573344057
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 10 HP 25 mm deep
• Power: 15 mA +12V 15 mA -12V ? mA 5V
