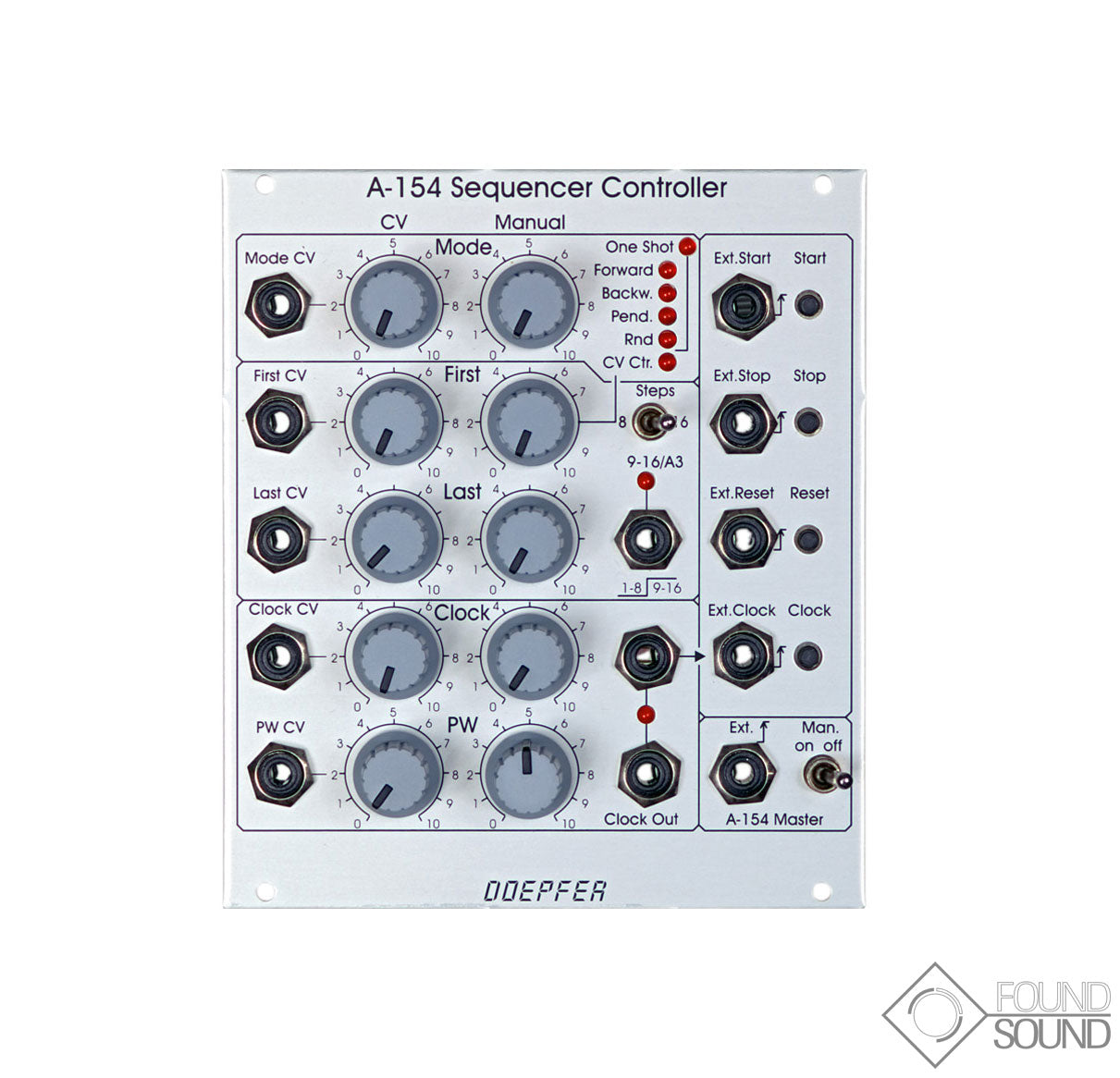

The A-154 is a 22HP expansion module for the A-155 Analog / Trigger Sequencer and offers a number of new features not found in the A-155's simple control logic. With the A-154, one or two A-155 can be controlled in parallel. The A-154 replaces the previous control unit of the A-155 (ie the area of the A-155 front panel with Start / Stop / Step / Reset buttons and inputs). Details of the unit's extended functions can be found at the Doepfer website.
Brand new with warranty.
Video: https://youtu.be/rI9zngrAS-Q
Product Specs
- Item Number: 9056
- Make: Doepfer
- Model: A-154 Sequencer Controller
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Sequencer Clock Generator
- Made In: Germany
- MPN: A-154
- EAN: 4250711115401
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 22 HP 80 mm deep
- Power*: 60 mA +12V 20 mA -12V 0 mA 5V
* User contributed details
