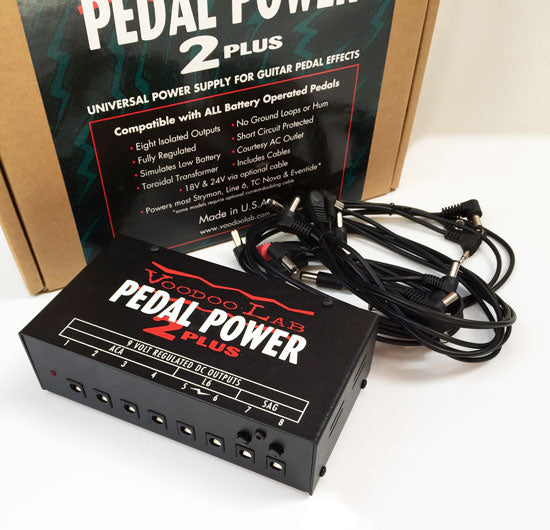

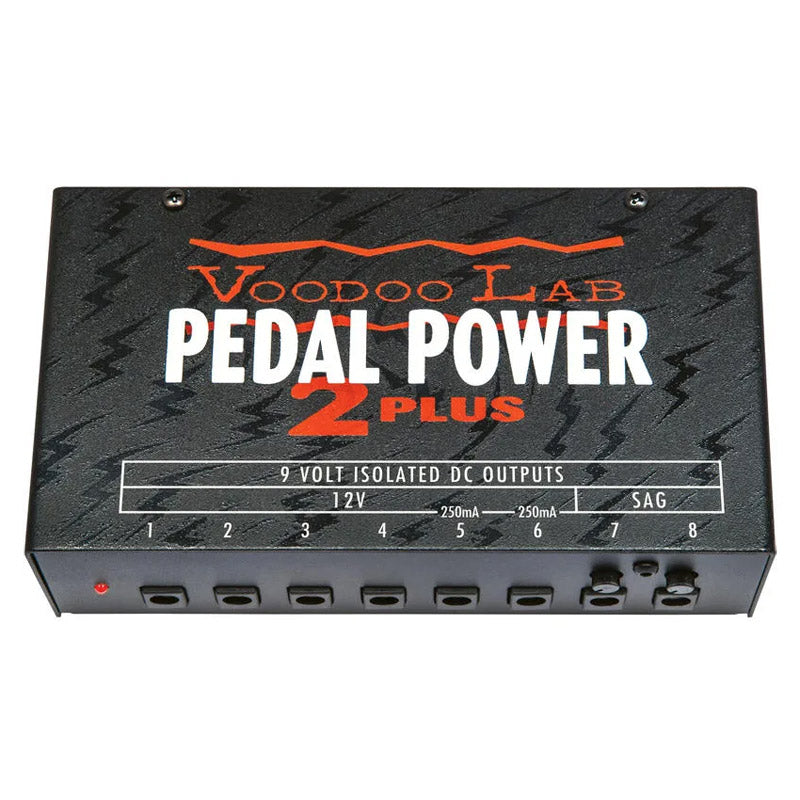

Voodoo Lab Pedal Power 2 Plus

Pedal Power 2 PLUS is an isolated linear power supply designed for quiet, dependable operation with everything from sensitive vintage battery-powered stompboxes to modern DSP effects. Its eight galvanically isolated outputs help eliminate ground loops, hum and unwanted interaction between pedals, making it well suited to small and medium pedalboards or as an additional supply in larger rigs.

A custom ultra-low-noise toroidal transformer with separate balanced windings for each output, combined with linear regulation, provides stable, clean power even under poor AC line conditions. Six outputs can be switched between 9V and 12V, while two dedicated SAG outputs simulate the response of a low battery for compatible pedals.

Two higher-current 250mA outputs accommodate more power-hungry effects. With optional doubler cables, outputs can be combined for 18V or 24V operation and current draw up to 500mA. An onboard 200-watt courtesy AC outlet allows an additional device—such as an AC-powered effect, wireless system or another power supply—to be powered from the unit.

Features

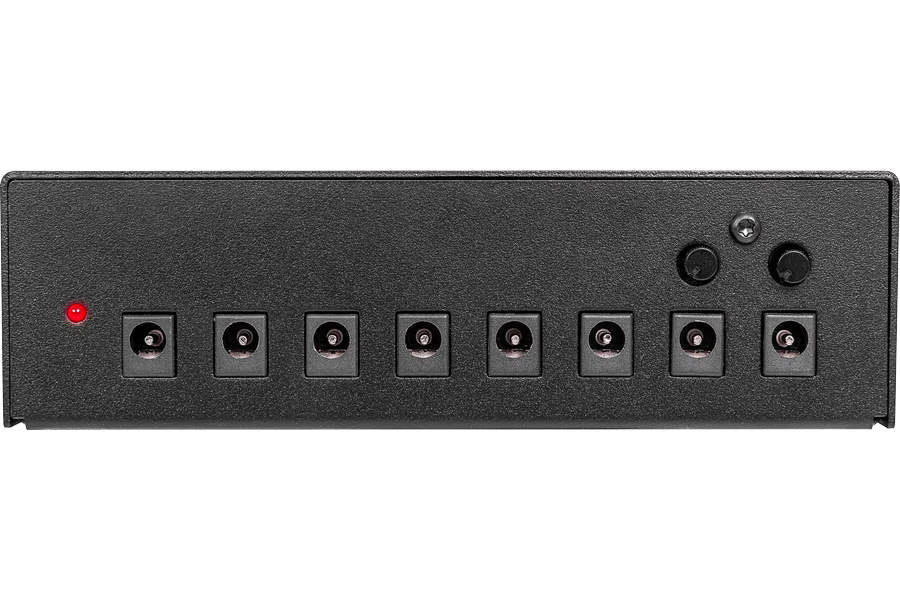

• Eight galvanically isolated output sections to reduce ground loops and hum
• Four 9V/12V, 100mA outputs
• Two 9V/12V, 250mA outputs
• Two 9V, 100mA outputs with SAG function
• Compatible with 9V battery-operated pedals
• 18V and 24V operation with optional doubler cables
• Up to 500mA available with optional doubler cables
• Custom toroidal transformer and linear regulation for low-noise operation
• Short-circuit protected outputs

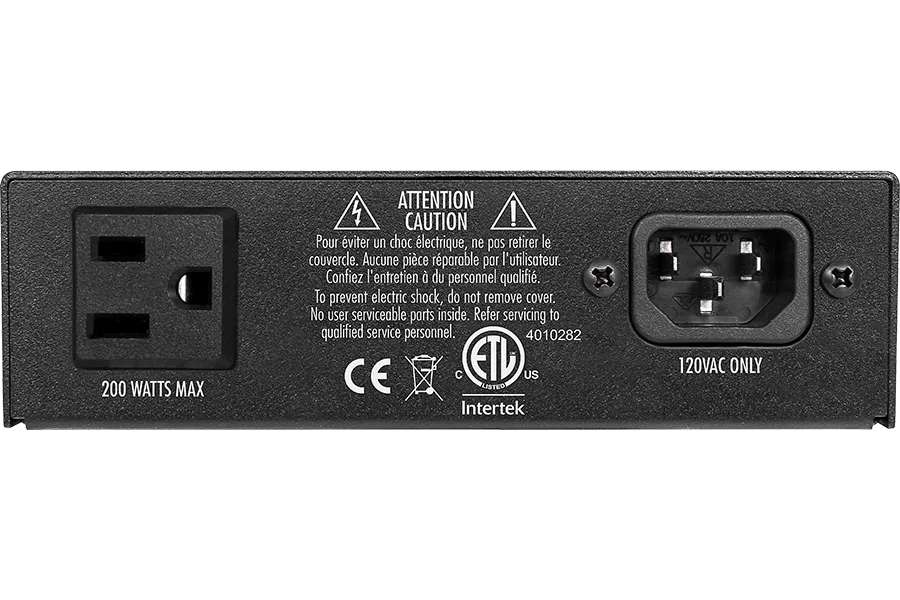

• 200-watt courtesy AC outlet for powering additional devices
• Detachable AC line cord

Specifications

• Input: IEC connector
• 230V, 50/60Hz — Europe/Australia model
• Output connectors: 5.5 × 2.1mm barrel, centre-negative

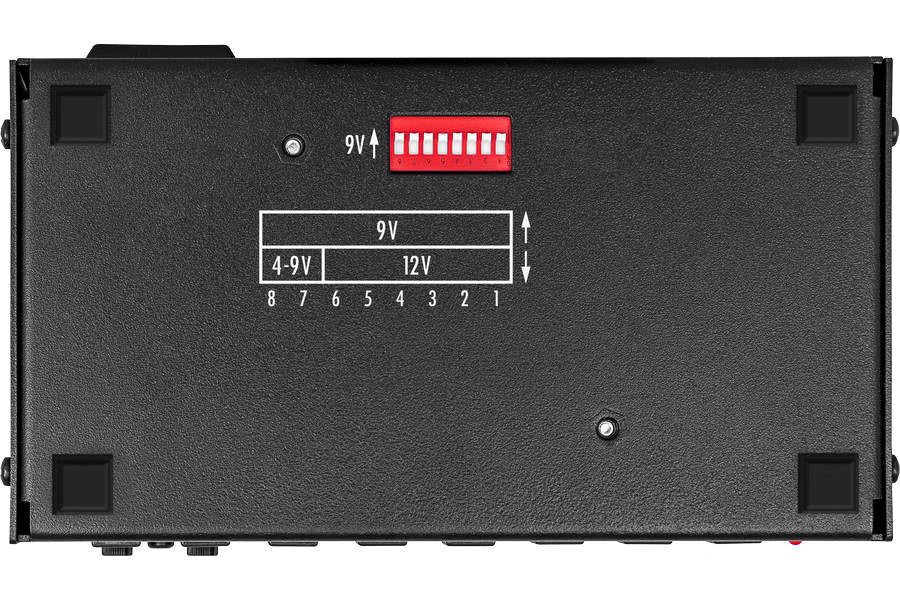

• Input voltage/model: Marked on the underside of the unit

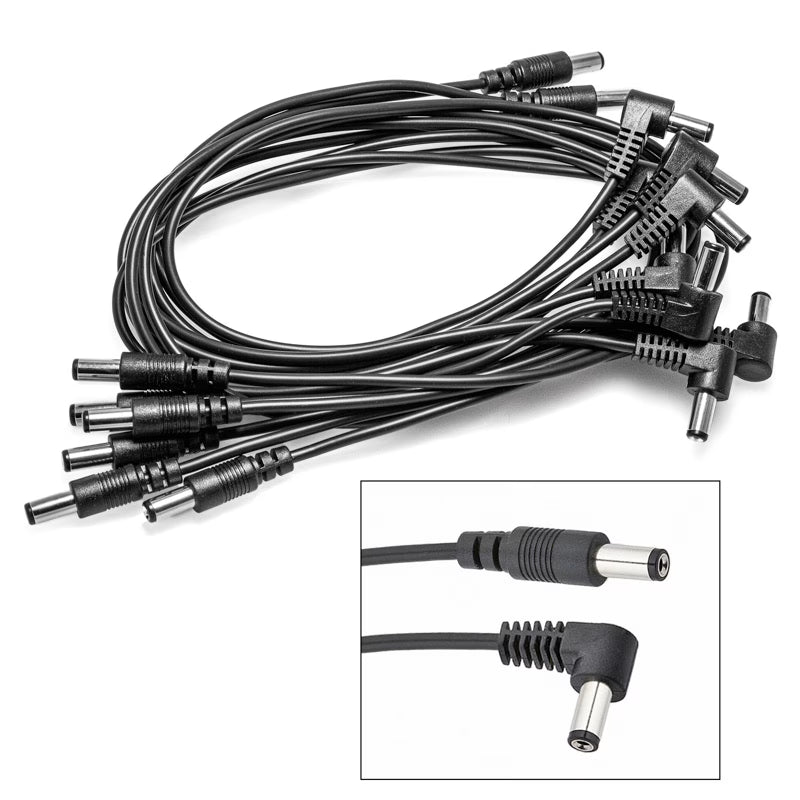

Included Accessories

• Eight 2.1mm centre-negative DC cables:
• Six 45.7cm (18") standard cables
• Two 61cm (24") cables
• Detachable AC line cord

Includes 5-year warranty.

Video: https://youtu.be/sgy0DuC8yk8

Product Specs

• Item Number: 896
• Make: Voodoo Lab
• Model: Pedal Power 2 Plus
• Condition: Brand New
• Finish: Black
• Categories: effects-and-pedals ⇒ pedalboards-and-power-supplies ⇒ pedal
• Function: Power
• Made In: United States
• MPN: VLPP
• UPC: 813140001215
• Modular Grid: Pedals ⓘ ＋
• Dimensions*: 152 mm wide 86 mm high
• Power*: ? mA / ? V AC/DC

* User contributed details
