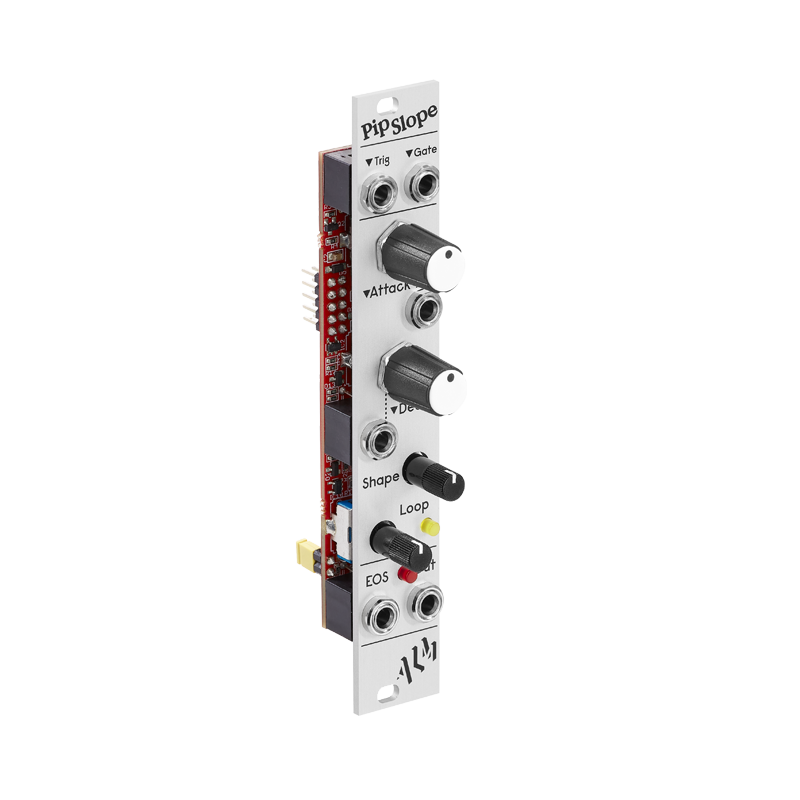

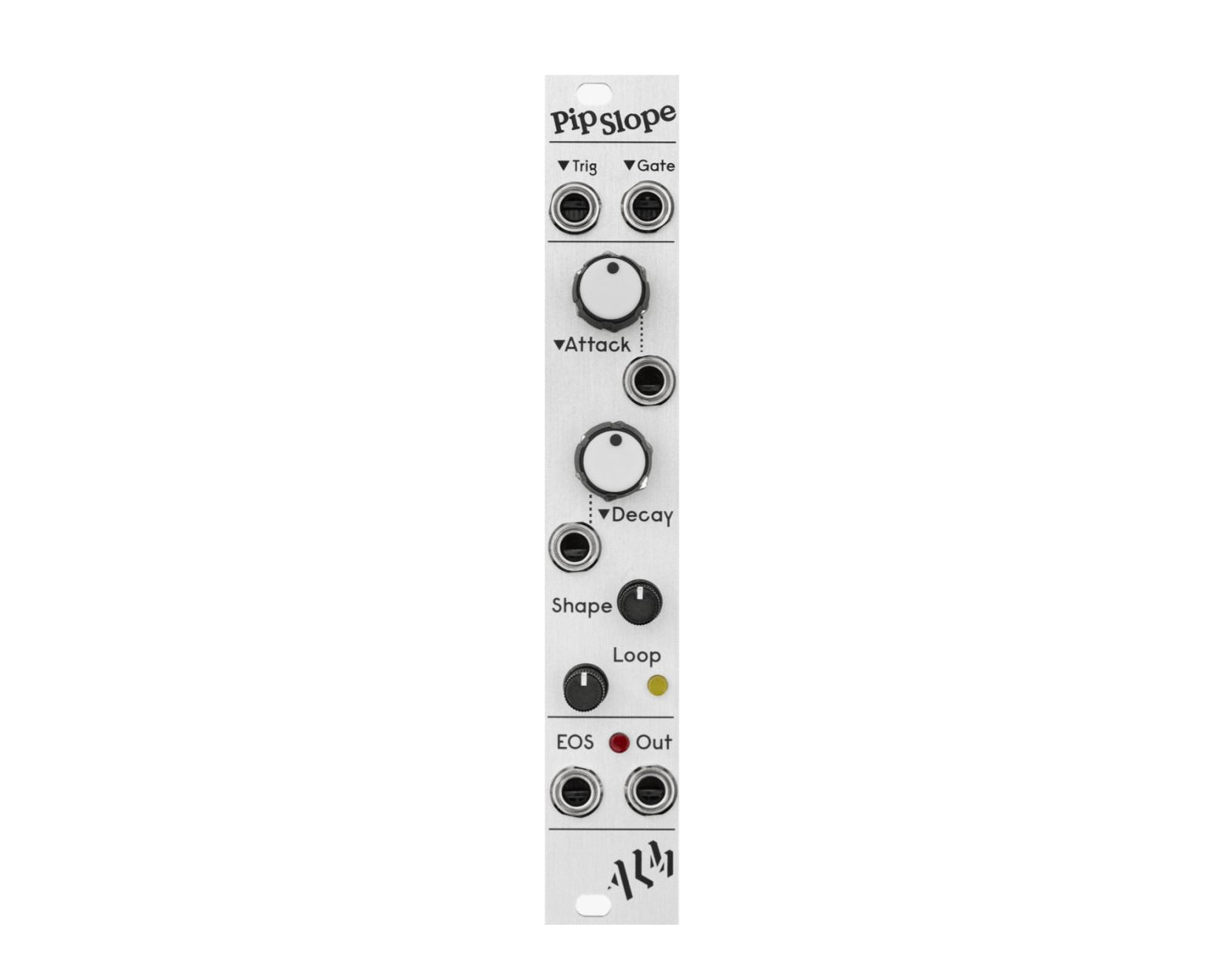

ALM Busy Circuits Pip Slope (Rev II): Compact Envelope Generator
ALM Busy Circuits Pip Slope (Rev II): Compact Envelope Generator
  • Load image into Gallery viewer, ALM Busy Circuits Pip Slope (Rev II): Compact Envelope Generator
  • Load image into Gallery viewer, ALM Busy Circuits Pip Slope (Rev II): Compact Envelope Generator

ALM Busy Circuits Pip Slope (Rev II): Compact Envelope Generator

Product type
NEW
Regular price
$169.00
Sale price
$169.00
Regular price
RRP
Out of stock
Unit price
per
GST inclusive Shipping calculated at checkout.

* This item is not currently in stock, orders will be fulfilled when the item becomes available.

The ALM 'Pip Slope' is an envelope generator which supports both Attack/Decay and attack/sustain/decay type functions with both direct and voltage control of attack and decay times. Envelopes can be automatically looped and the function curve type can be changed between exponential and linear. The improved Pip Slope adds a number of new features and updates over the original Pip whilst keeping the same size. Improvements include increased output resolution, finer control of fast envelopes, a new morphing shape control, switchable 5v or 8v maximum envelope level, additional loop modes and an additional trigger output.

Brand new with warranty. Supply: +/-12V (Reverse voltage protection) Current Draw: ~50ma Size: 4 HP Depth: 32mm (including power header)

Video: https://youtu.be/wq3DmzBsuE0

Product Specs
