This module is comprised of three sections: a bidirectional multiplexer, 8 track and holds, and eight digital outputs. The module is capable of behaving as a sequential switch, audio router, shift register, S&H, and more. Each digital output only emits voltage when its output stage is addressed, meaning the module can be used as a gate sequencer. The T&H submodule section functions like a combination of a shift register and signal router and the multiplexer acts as an 8:1 switch, or as a 1:8 signal router.
Dimensions: Width: 16 HP, Depth: 45 mm Power requirements: +40 mA (+ 12V) / -20 mA (-12V) Brand new with warranty.
Video: https://youtu.be/V7Ky8jyc2Ic
Product Specs
- Item Number: 7629
- Make: Doepfer

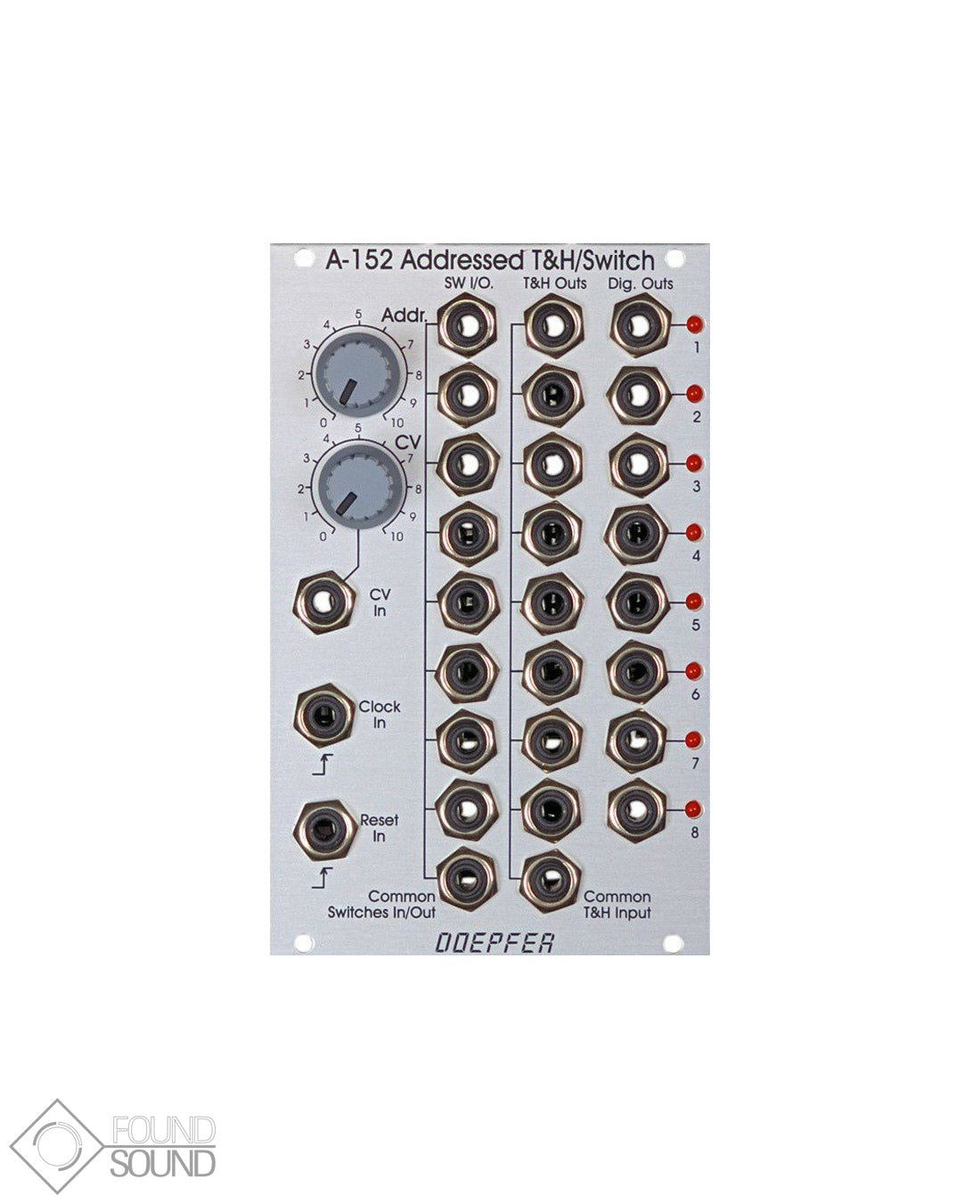

- Model: A-152 Voltage Addressed T&H/Switch
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Switch Clock Modulator Logic Sample and Hold Comparator
- Made In: Germany
- MPN: A-152
- EAN: 4250711115203
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 16 HP 45 mm deep
- Power*: 40 mA +12V 20 mA -12V 0 mA 5V
* User contributed details
