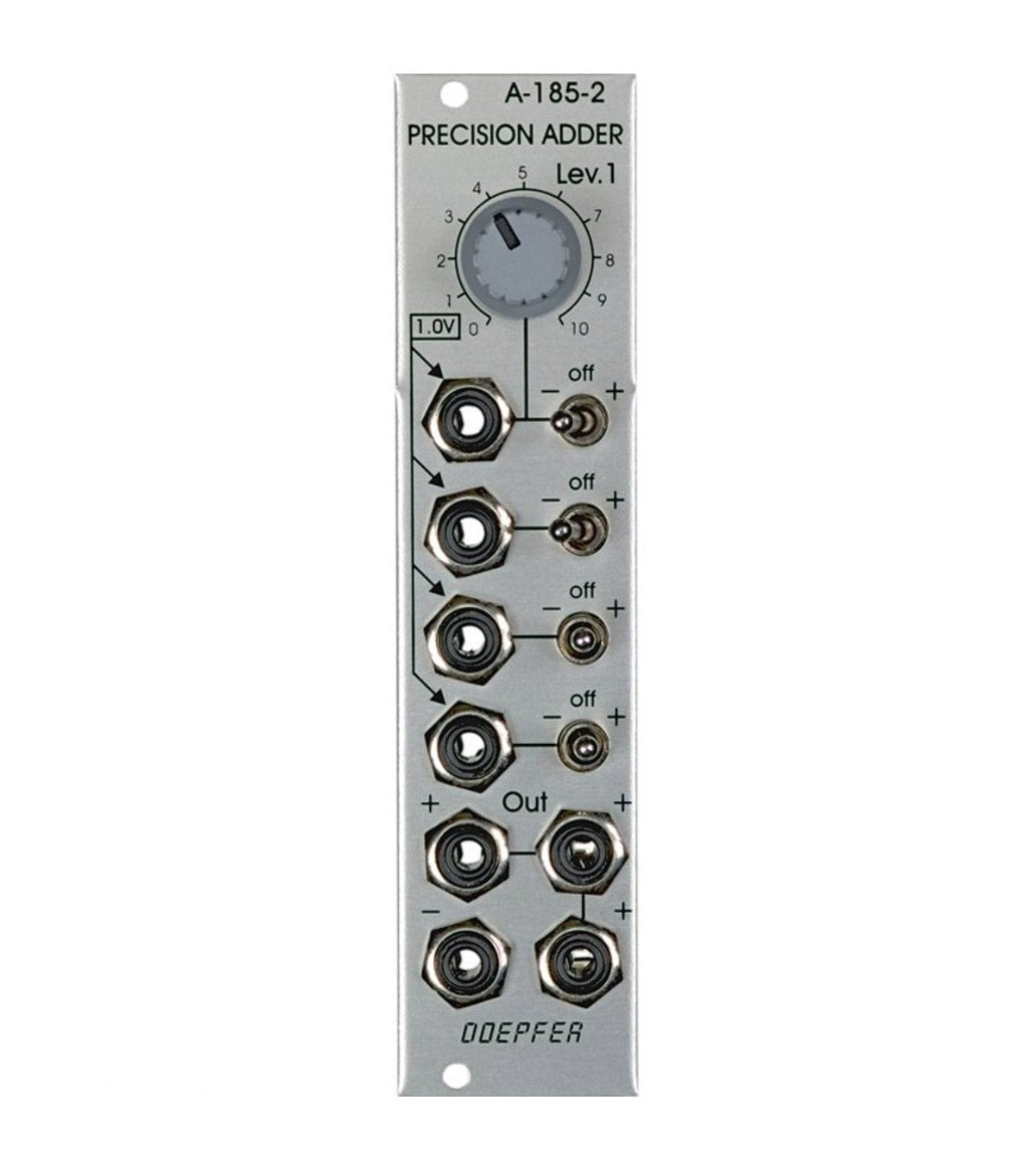

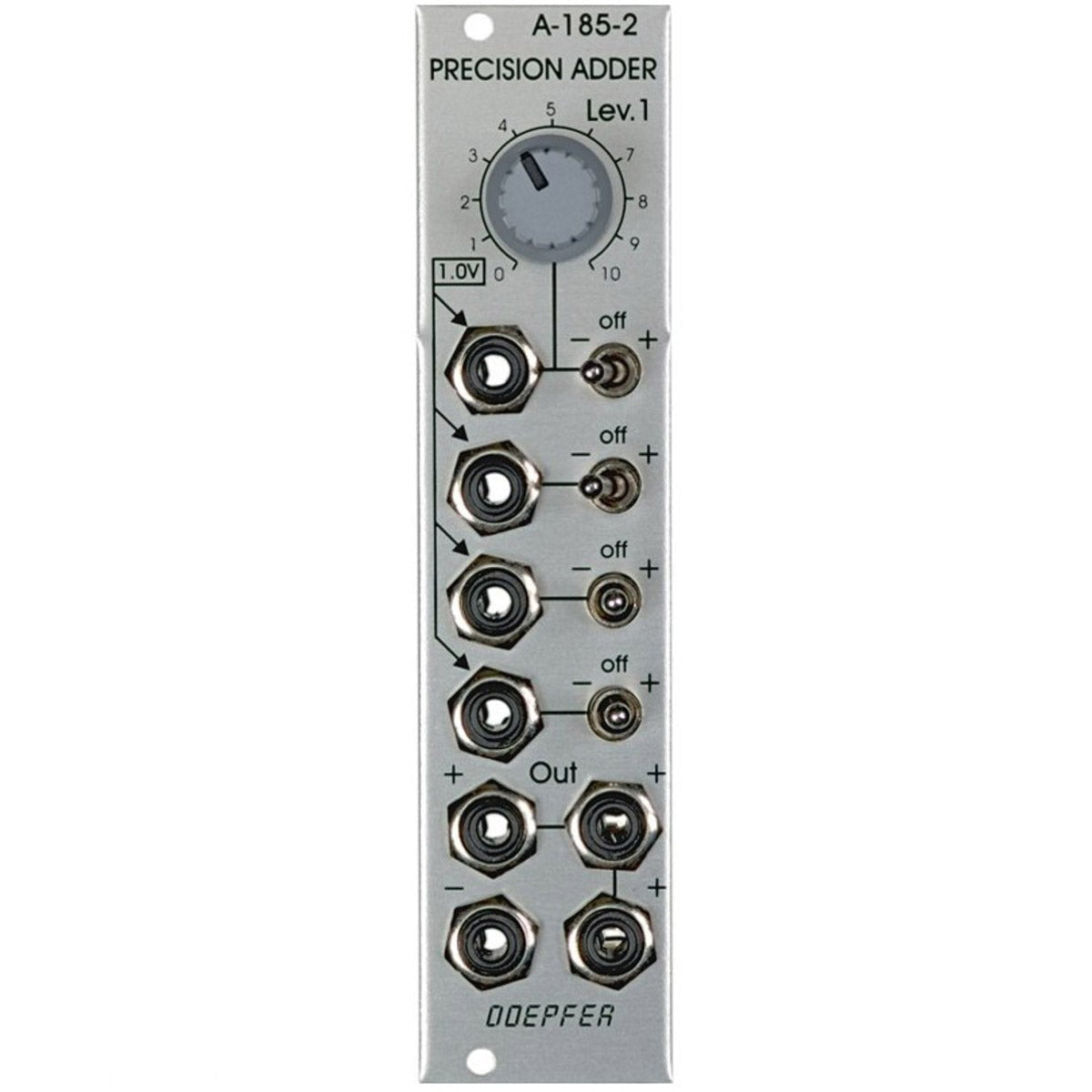

A precision Adder / Bus Access module for Eurorack systems. The amplification of the inputs without attenuators is precisely 1.00, making it perfect for adding CVs for controlling the pitch of VCOs. Uses summing resistors matched to 0.1 to achieve an accuracy of 0.1 for the added voltages. It is equipped with 4 CV inputs, with one featuring an attenuator, whilst the other 3 are without. Also equipped with 4 outputs (three non-inverting outputs, and one inverting output).
Dimensions: Width: 6 HP / 30 mm; Depth: 50 mm Power requirement: 10 mA Brand new with warranty.
Video: https://youtu.be/6GYHda2YLFE
Product Specs
- Item Number: 7626
- Make: Doepfer
- Model: A-185-2 Precision Adder/Bus Access
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Multiple Attenuator Mixer Utility Controller Switch
- Made In: Germany
- MPN: A-185-2
- EAN: 4250711118525
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 6 HP 50 mm deep
- Power*: 10 mA +12V 10 mA -12V 0 mA 5V
* User contributed details
