* This item is not currently in stock, orders will be fulfilled when the item becomes available.

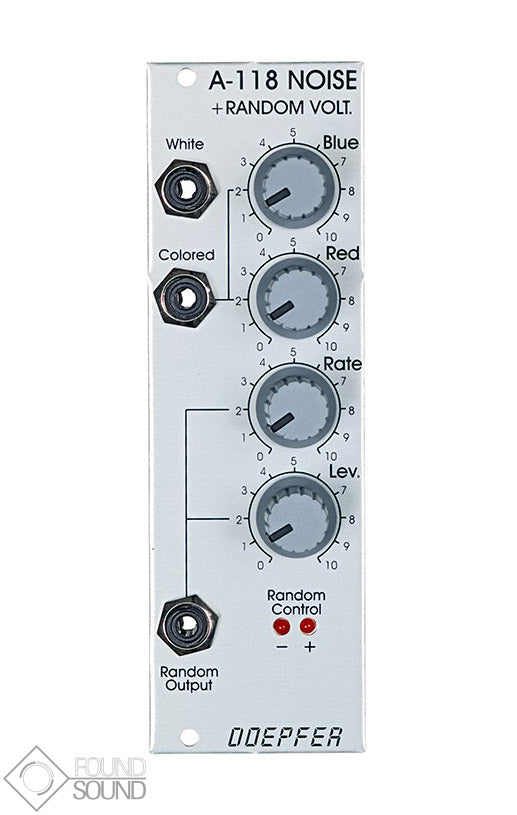

Module A-118 is a noise and random voltage generator. It produces white noise, coloured noise, and random voltage. White and coloured noise can be used as audio signals, and also (in conjunction with an S&H module) as a control voltage. The resulting random voltage is mainly used as a control voltage, especially because of its low frequency content. There are knobs to control the rate of change and amplitude of the random voltage, and two LEDs indicate the state of the voltage.
Width: 8HP / 40.3 mm Depth: 40 mm (measured from the back side of the front panel) Power requirements: +20 mA (+ 12V) / -10 mA (-12V) Brand new with warranty.
Video: https://youtu.be/vin9o4GpJs8
Product Specs
- Item Number: 7622
- Make: Doepfer
- Model: A-118 Noise/Random
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Noise Random Sample and Hold
- Made In: Germany
- MPN: A-118
- EAN: 4250711111809
- Modular Grid: Eurorack ⓘ +
- Dimensions*: 4 HP 40 mm deep
- Power*: 20 mA +12V 20 mA -12V 0 mA 5V
* User contributed details
