* This item is not currently in stock, orders will be fulfilled when the item becomes available.

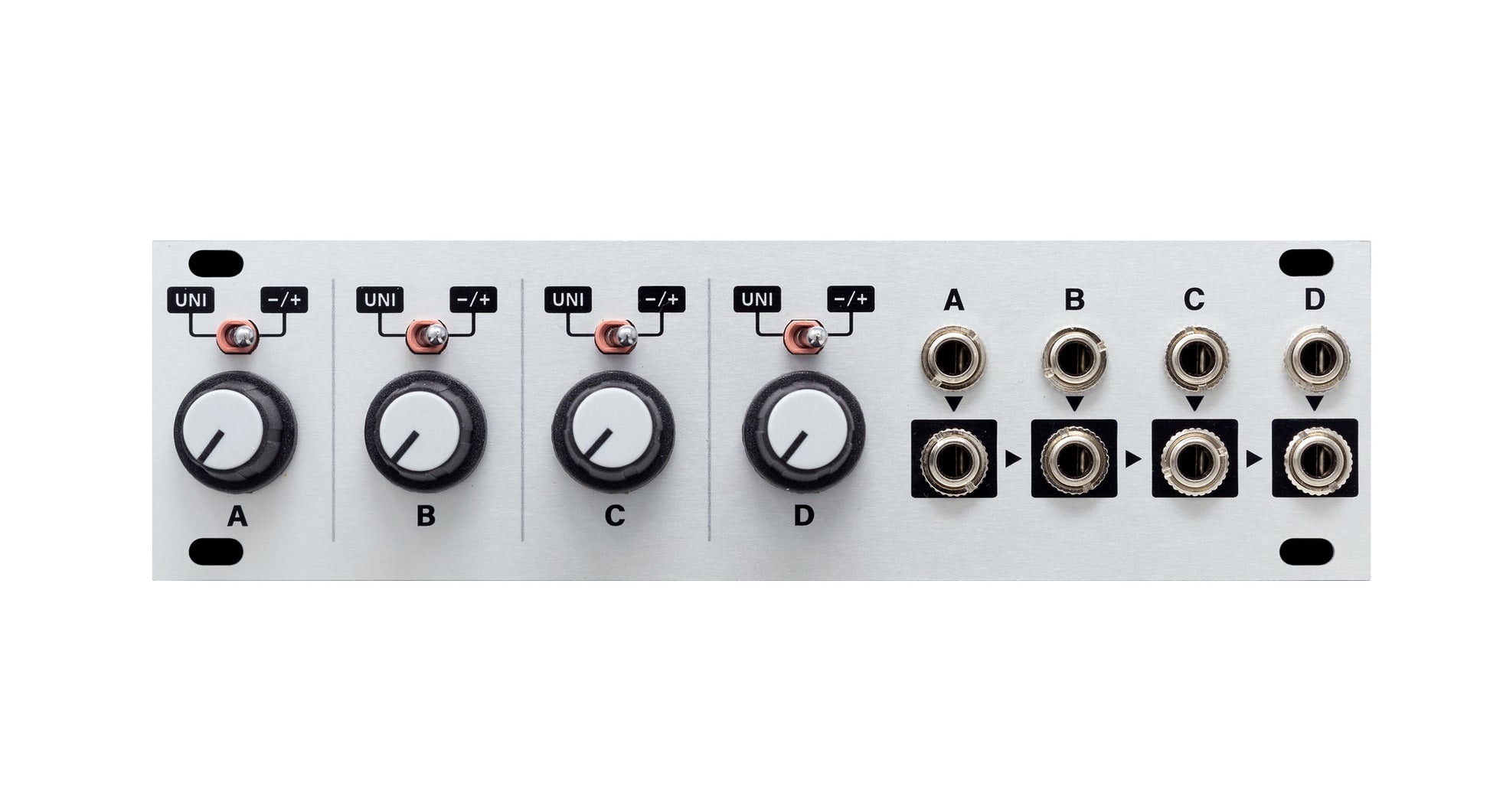

The shorter and wider brother to the popular Triatt module. The four handy knobs can act as active attenuators (unipolar) or attenuverters (bipolar) depending on the setting of the two-position switches above each one. Each input is normalled to a precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 v or -5 to +5 v depending on the position of the mode switch.
Video: https://youtu.be/-f3vhLx4PRQ
Product Specs
- Item Number: 6622
- Make: Intellijel
- Model: Quadratt 1U
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Attenuator Mixer Utility CV Modulation
- Made In: Canada
- MPN: QUADRATT-1U
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 28 HP 29 mm deep
- Power: 24 mA +12V 23 mA -12V 0 mA 5V
