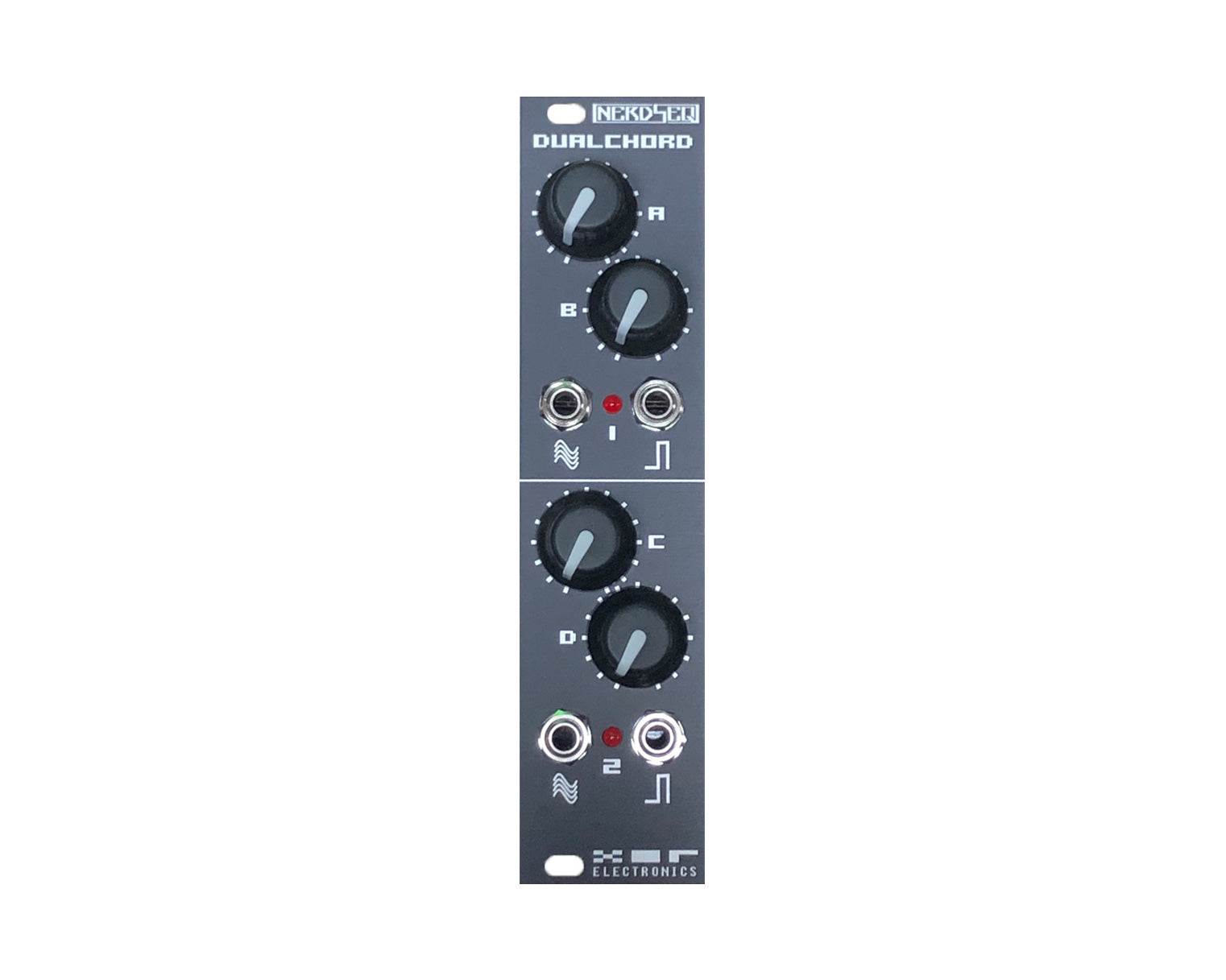

The Dualchord is a hq multi-oscillator expander for the NerdSEQ. Two channels, each consisting of 4 oscillators with 4 simultaneous waveforms (sine, saw, triangle, pulse) ā which makes for a total 32 waves running at the same time!
Additional features include detune, spread, PWM, Stereo Effects, mini-super-saw, 8 LFO, 4 free assignable knobs, 2 audio-outputs with 4 oscillators each, 2 additional trigger/gate outputs and more.
Completely paraphonic playable and controllable from each NerdSEQ track. Fully integrated via the internal NerdSEQ mapping. Perfect for nice multi-octave chords, drones or your cheesy 80ās analogue-ish poly-synth sounds combined with an external filter and an envelope.
Features
- 2 audio outputs with each up to 4 digital HQ oscillators
- 2 additional Trigger/Gate outputs for direct control of a VCA/Envelope etc.
- 4 potentiometer knobs for direct control of assigned Dualchord parameters
- Each oscillator has 4 freely mixable waveforms (sine, saw, triangle, pulse)
- 32 waves are running at the same time on the Dualchord
- Velocity, Glide, Detune, PWM setting per oscillator or per output
- Morph function to freely morph between waveforms
- Spread function to detune oscillators from each other (mini-supersaw)
- Play each oscillator via notes, pitch, mono / paraphonic
- Multi Oscillator presets and preset chords
- Pseudo-Stereo Modes by cloning output 1 to output 2 freely, with dephasing or detuning
- 8 internal LFOs which can be assigned to all Dualchord functions.
- LFO controls include speed (synced to NerdSEQ clock or free running), Amplitude, Offset and Phase
- Flexible knob assignment to all Dualchord parameters, oscillators, LFO settings etc
- Trigger/Gate outputs support all local NerdSEQ Trigger/Gate tricks
- Nicely integrated into a new NerdSEQ tracktype, Mappings etc
- Uses a channel on the NerdSEQ NSA port
Product Specs
- Item Number: 35936
- Make: XOR Electronics
- Model: Dualchord Expander - Black
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Expander Oscillator
- Made In: Netherlands
- MPN: XOR-DCBLK
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 6 HP 35 mm deep
- Power*: 100 mA +12V 10 mA -12V 0 mA 5V
* User contributed details
