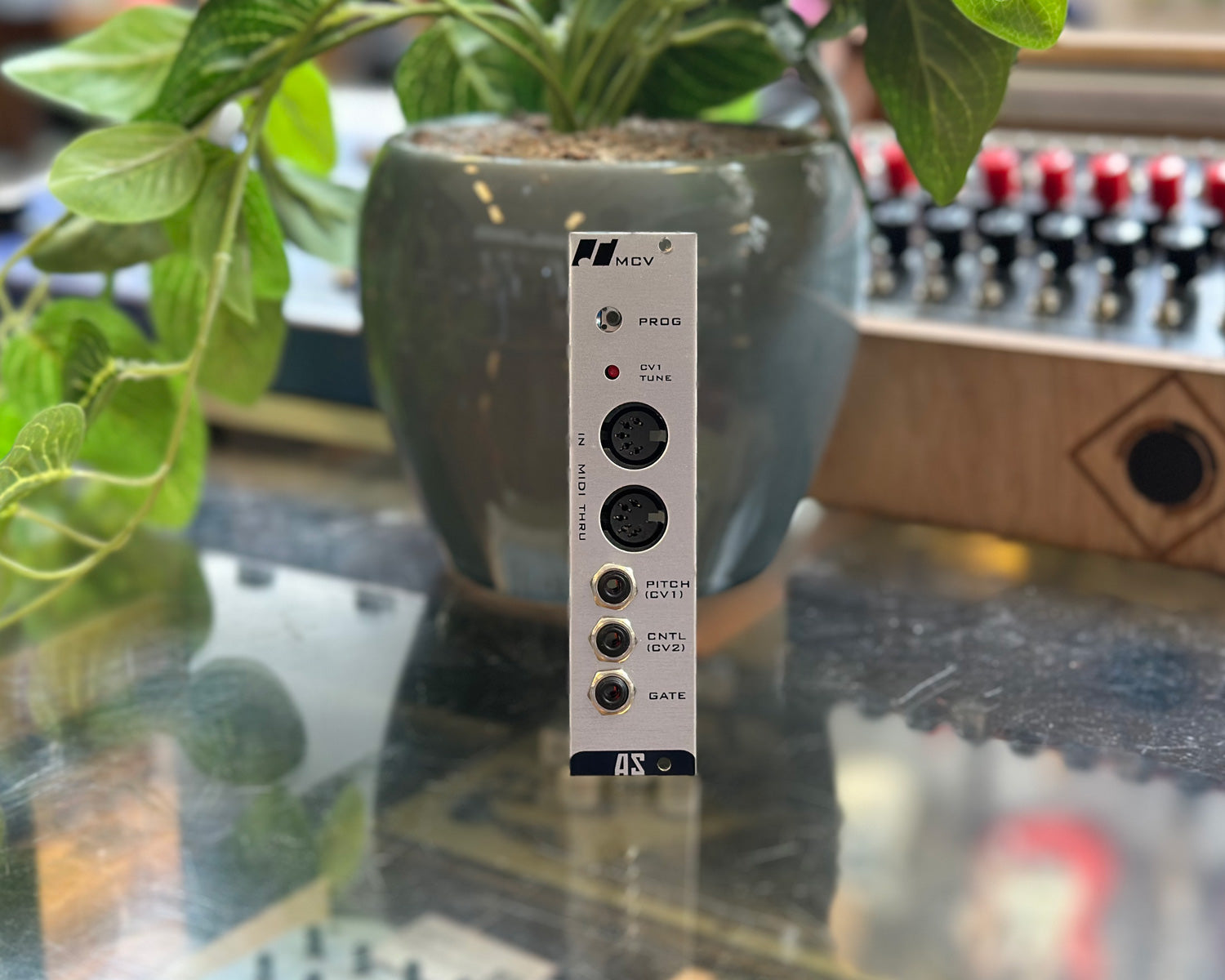

Analogue Solutions MCV MIDI to CV

MIDI CV converter with 2nd CV out The MIDI activity light illuminates whenever a gate voltage is active (i.e., when one or more MIDI keys are pressed). The Pitch CV output (CV1) follows the 1V/octave standard. The controller CV output (CV2) is mapped to MIDI controller 1 (modulation wheel) and operates within a 0 to 10V range. The controller number is fixed and cannot be changed, with a resolution of 7 bits.

Includes ribbon power cable.

Product Specs

• Item Number: 35185
• Make: Analogue Solutions
• Model: MCV
• Condition: Very Good
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI
• Made In: United Kingdom
• MPN: 35185
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 50 mm deep
• Power*: ? mA +12V ? mA -12V ? mA 5V

* User contributed details
