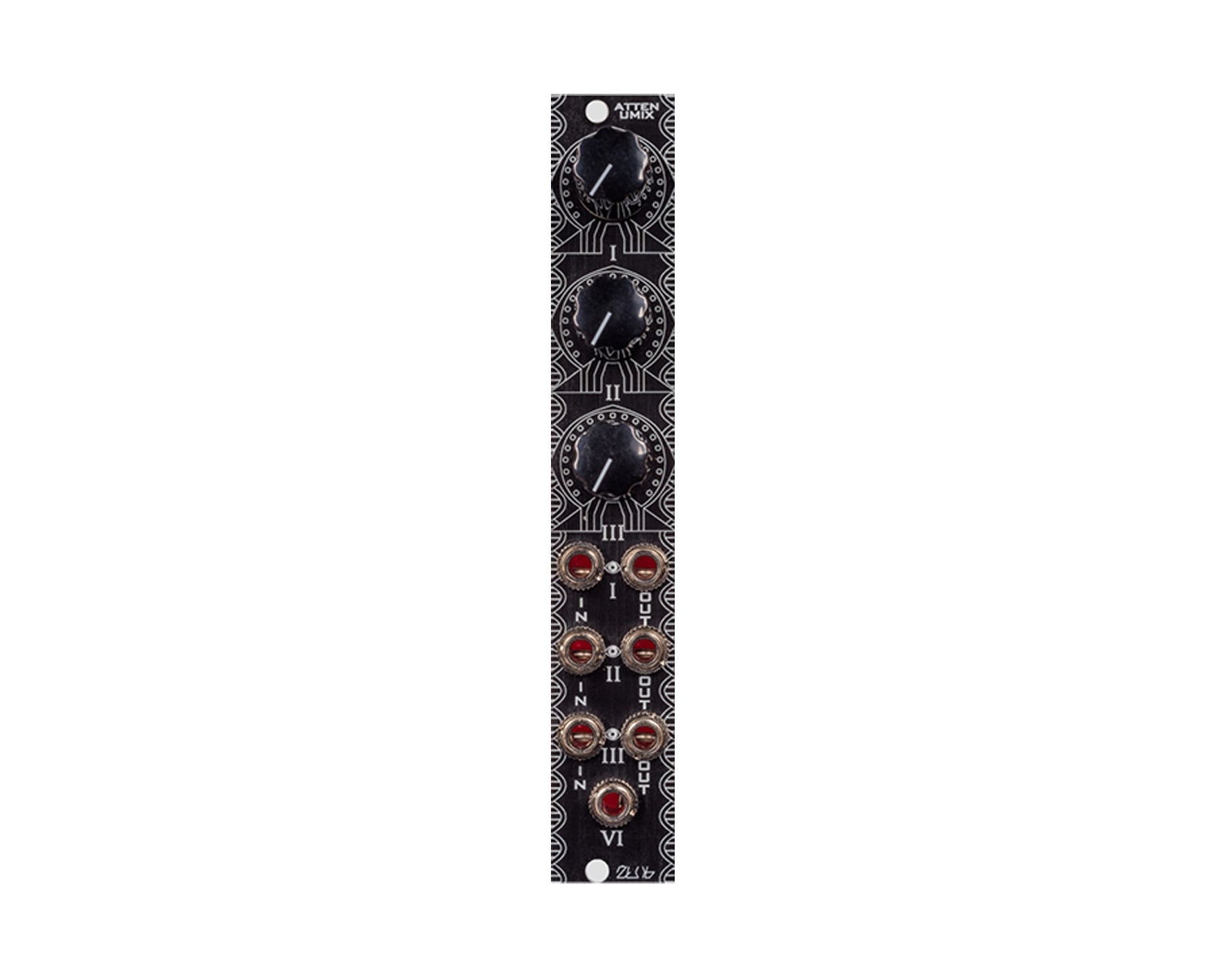

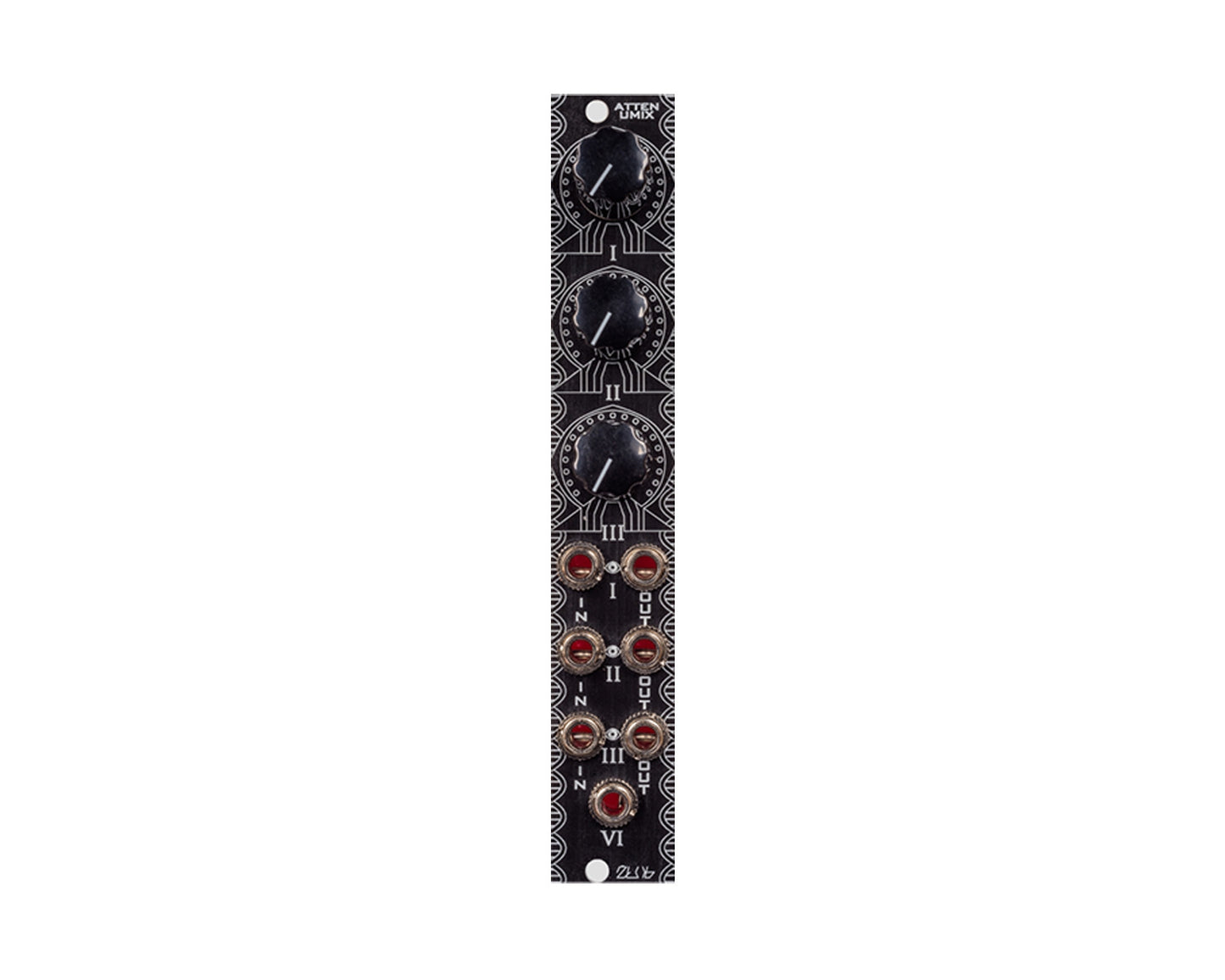

The Zlob Attenumixer is a 4hp 3 channel Passive Attenuator and Mixer Eurorack Module where
each channel is normalled to the sum (VI) so it can be used as a 2 channel mixer and 1 channel attenuator, or a 3 channel mixer, or as 3 separate attenuators.
Normalisation to the sum is broken by inserting a jack into the outs of channels I-III. The Attenumixer works well with both cv and audio, although the potentiometers have a linear response. Since the module is passive there will be signal loss at the sum out.
Ships with M3 black nylon screws.
Product Specs
- Item Number: 34699
- Make: Żłob Modular
- Model: Attenumixer Eurorack Triple Summed Attenuator Module
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Attenuator Mixer Utility
- Made In: United States
- MPN: ZLOB11
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 4 HP 13 mm deep
- Power*: Module does not draw current
* User contributed details
