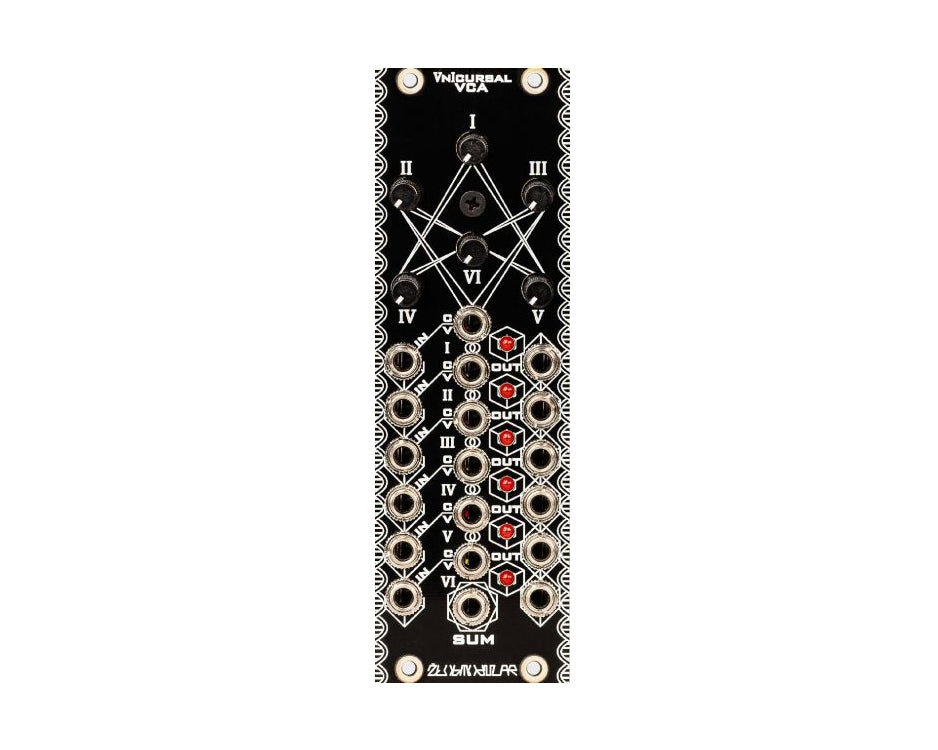

The VnIcursal VCA is an 8hp 6 Channel VCA Eurorack Module, the smallest, most compact Voltage Controlled Amplifier in the Eurorack market and provides 6 OTA(LM13700)-based DC Coupled Linear VCAs for Audio or CV.
The 6 VCAs are summed together so it can also be used as a voltage controlled mixer. Each VCA out is normalled to the SUM out so they can be removed from the mix and used on their own, they are not cascaded outputs. The potentiometers control the amount of gain and when a voltage is inserted into the CV in the potentiometers act as attenuators. With a control voltage of 5 volts the VCA will be around unity gain, above 8v can clip the input. LED brightness with or without CV in provides constant feedback of each channels amount of gain.
Version also reduces bleed and cross talk sometimes apparent with version 5. But keep in mind analog VCAs can only close so much, or be so silent. In certain situations based on power supplies and gain stages the VCA can experience some bleed or noise mainly at the sum out as all channels are passively summed then buffered. Inputs above 1K Hz will experience more bleed than lower frequency signals.
Product Specs
- Item Number: 34693
- Make: Żłob Modular
- Model: Vnicursal Eurorack 6 Channel VCA Module
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Made In: United States
- MPN: ZLOB05
