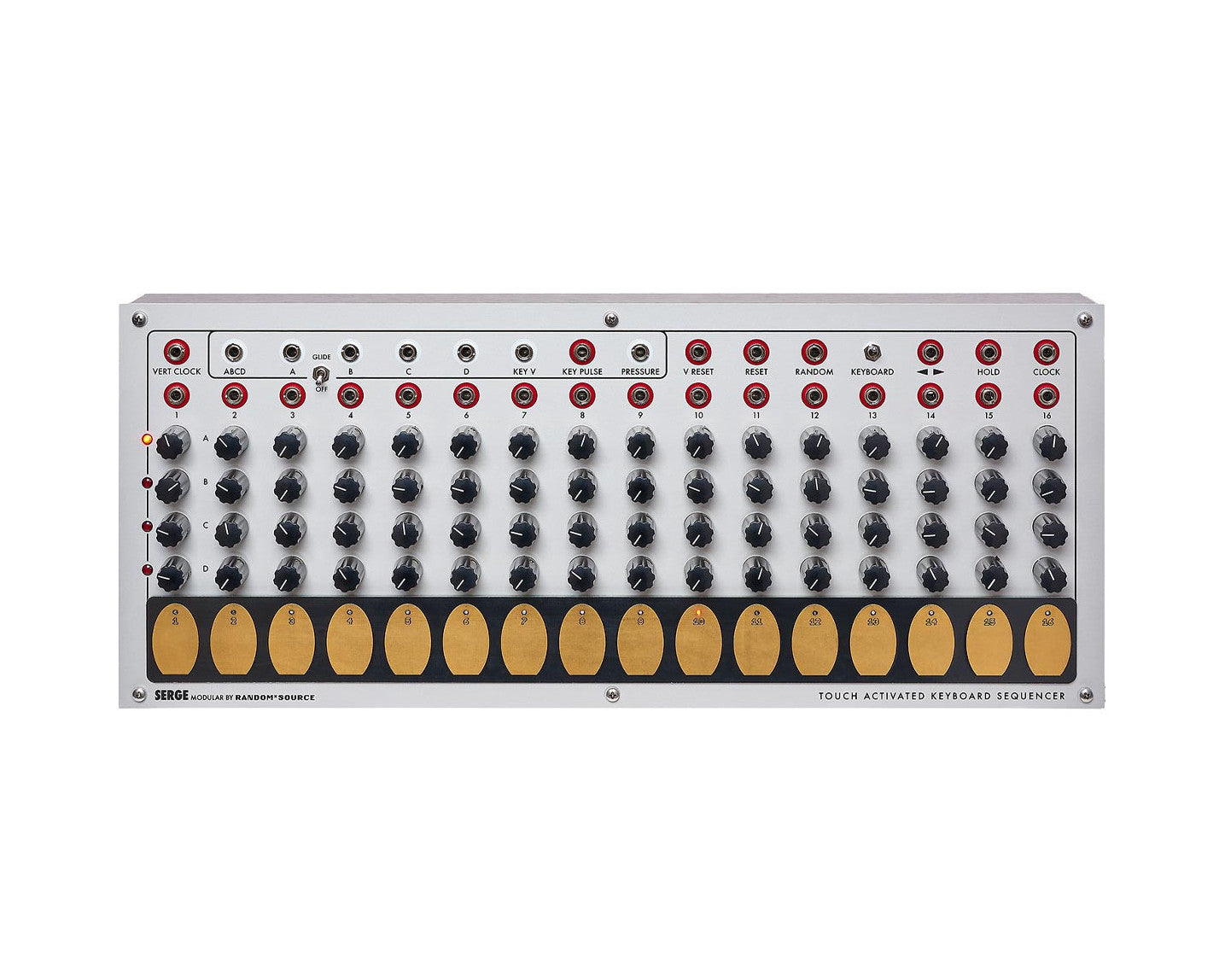

The TKB, aka Touch Activated Keyboard Sequencer, by Random Source is a redesign of the iconic controller/voltage programmer that was originally designed by Serge Tcherepnin.

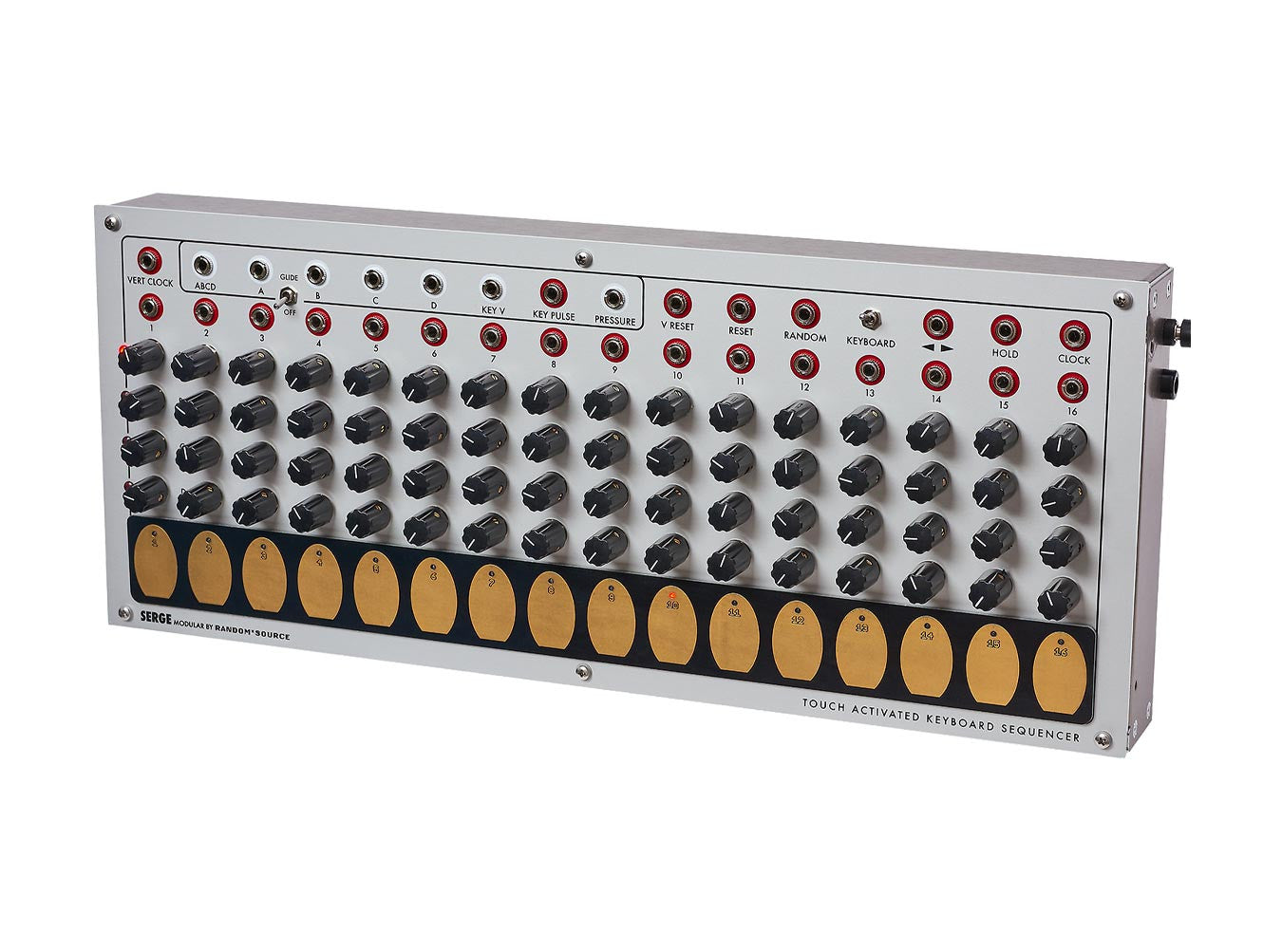

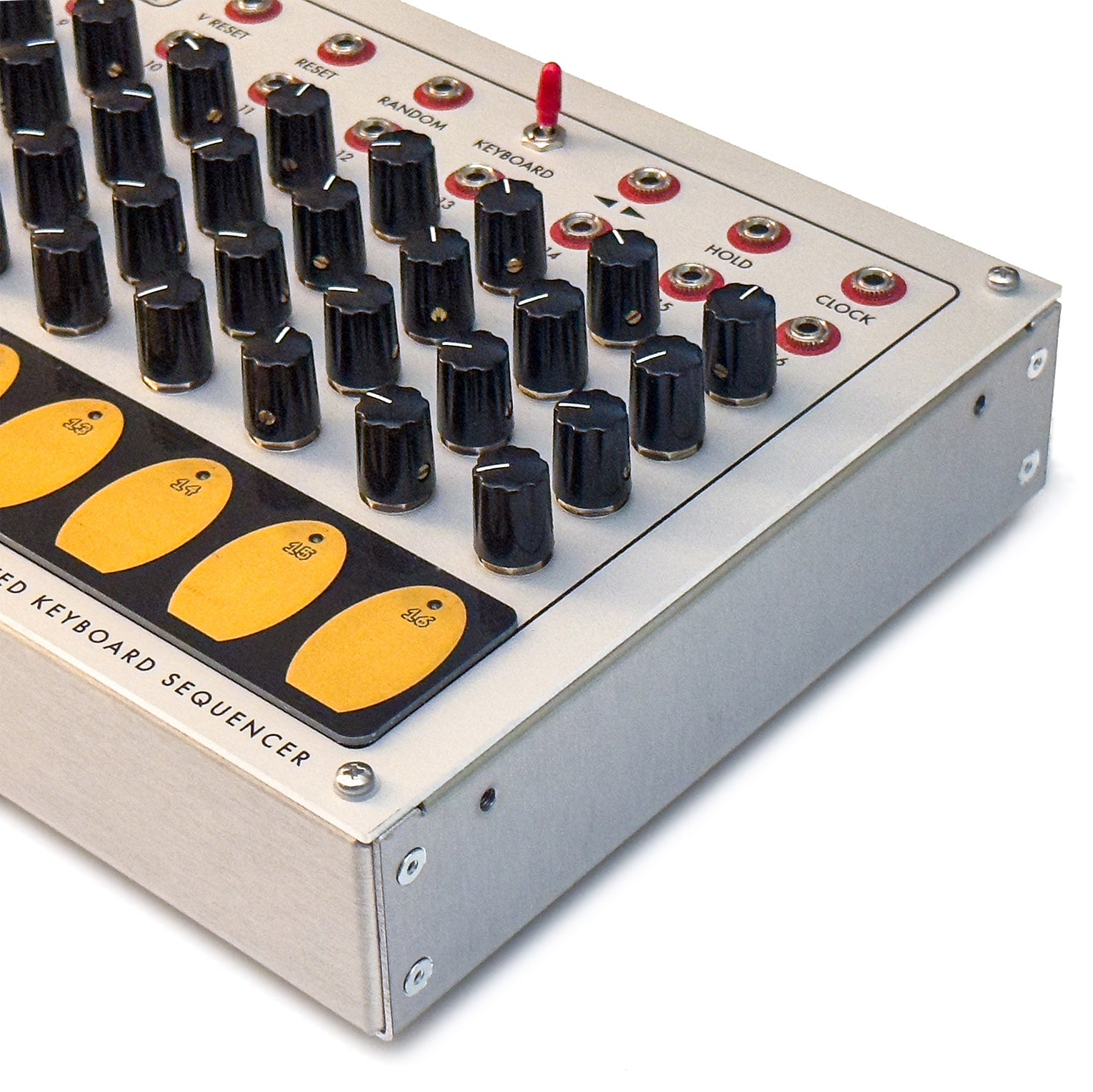

This version has 3.5mm jacks for easy interfacing with Eurorack and other modular synth formats. It also comes in its own boat complete with an internal PSU—so it's ready to use right away, even if you don't have a 4U case to use with it.
TKB consists of sixteen-stage touch-capacitive keyboard, four dials per stage for setting voltages, and many inputs and outputs aimed for ultimate programmability.
Each of the sixteen stages features four outputs labelled A, B, C, D that produce voltages set by a knob on a corresponding row whenever the stage is activated manually or via external clock. The Vert Clock input is unique to the TKB design. It advances the clock vertically through preset voltages of A, B, C, and D rows and delivering the resulting sequence at the ABCD output, which is useful for generating four-note arpeggios (or, with clever programming, sequences up to 64 stages long!).
This version of the TKB offers a special mode in which slew rates for channel A can be set via the channel B knobs, allowing 303-style glide-laden sequences previously impossible to achieve with the TKB alone. Touch response has also been improved in this version, providing a consistent and expressive playing experience.
The horizontal direction of the sequence can be manipulated via gate signals sent into Up/Down and/or Rand inputs. Each stage has a dedicated gate output that can be sent to external destinations, or can be used to set the length of the sequence when sent into the Reset input. The controller has a dedicated pressure output which produces +5V whenever a key is pressed and drops to 0V as soon as the key is released.
Additionally, TKB can be clocked at audio rate which effectively turns it into an oscillator. In such configuration each of the sixteen stages becomes a voltage segment that collectively define the oscillator’s waveshape.
Features
- Modern re-design of the classic Touch Activated Keyboard Sequencer (TKB)
- 16-step CV and Gate sequencer with per-stage gate outputs
- CV keyboard with dedicated semitone output, pulse, and pressure CV
- Improved touch response removes multi-touch glitches for smooth, consistent behavior
- Vertical ABCD output with vertical clock input, vertical reset input, and vertical position LED indication
- Switchable glide function for row A output
- Random stage selection
- Hold gate input
- Direction gate input
- Buffered gate outputs
4U format, eurojacks, incl. boat, power
Video: https://youtu.be/iT9mOMHBIKA
Product Specs
- Item Number: 34271
- Make: Serge Modular
- Model: Touch Activated Keyboard Seq. (TKB)
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Controller Sequencer
- Made In: Germany
- MPN: SM-TKB
- Modular Grid: Serge ⓘ ＋
- Dimensions*: 17 Col
