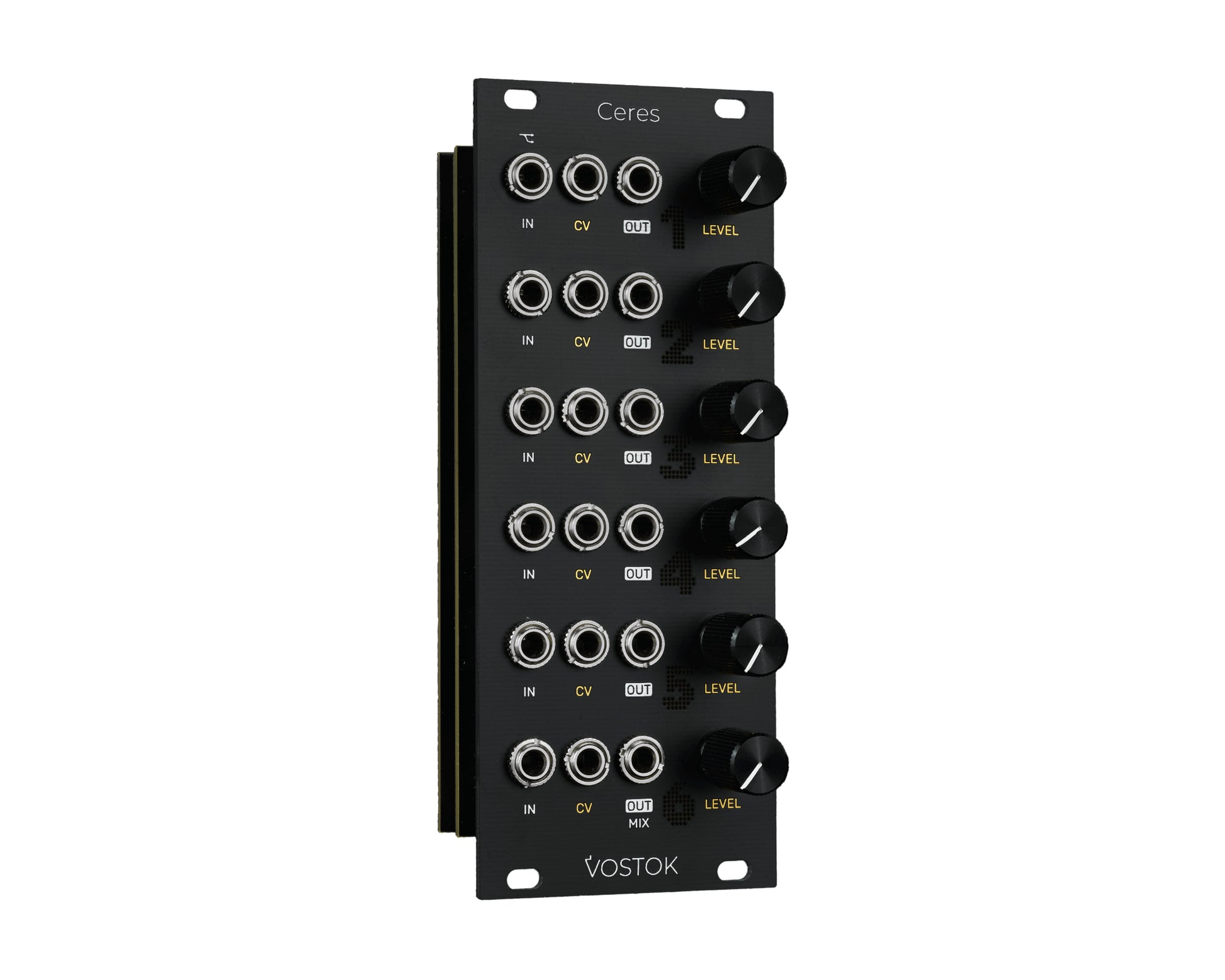

The Vostok Instruments Ceres is a high-quality six-channel VCA and mixer.
To counteract a possible VCA emergency, this VCA comes in handy. The basis is a chip based on the CEM 3360, which was used in devices like Roland Jupiter 6 and 8, Synton Syrinx, PPG Wave 2.3, Rhodes Chroma, Moog Memorymoog, Sequential Prophet 600 but also in the Buchla 296 spectral processor. Together with a four-layer PCB design, the result is a super-quiet VCA without noise or bleed.
Daisy-chaining on the input side and mixable outputs create a wide range of options. For example, multiple CV signals can modulate a single sound source and, when mixed together, create entirely new waveforms.
Features:
- Six-channel VCA
- Precise, linear response
- Low-noise signal path
- Inputs with daisy-chain functionality
- Signals can be summed in channel 6
Video: https://youtu.be/RHMJ-hzlsRk
Product Specs
- Item Number: 33926
- Make: Vostok Instruments
- Model: Ceres
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Attenuator Mixer Multiple VCA
- Made In: Spain
- MPN: VI-CERES
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 10 HP 30 mm deep
- Power: 50 mA +12V 50 mA -12V 0 mA 5V
