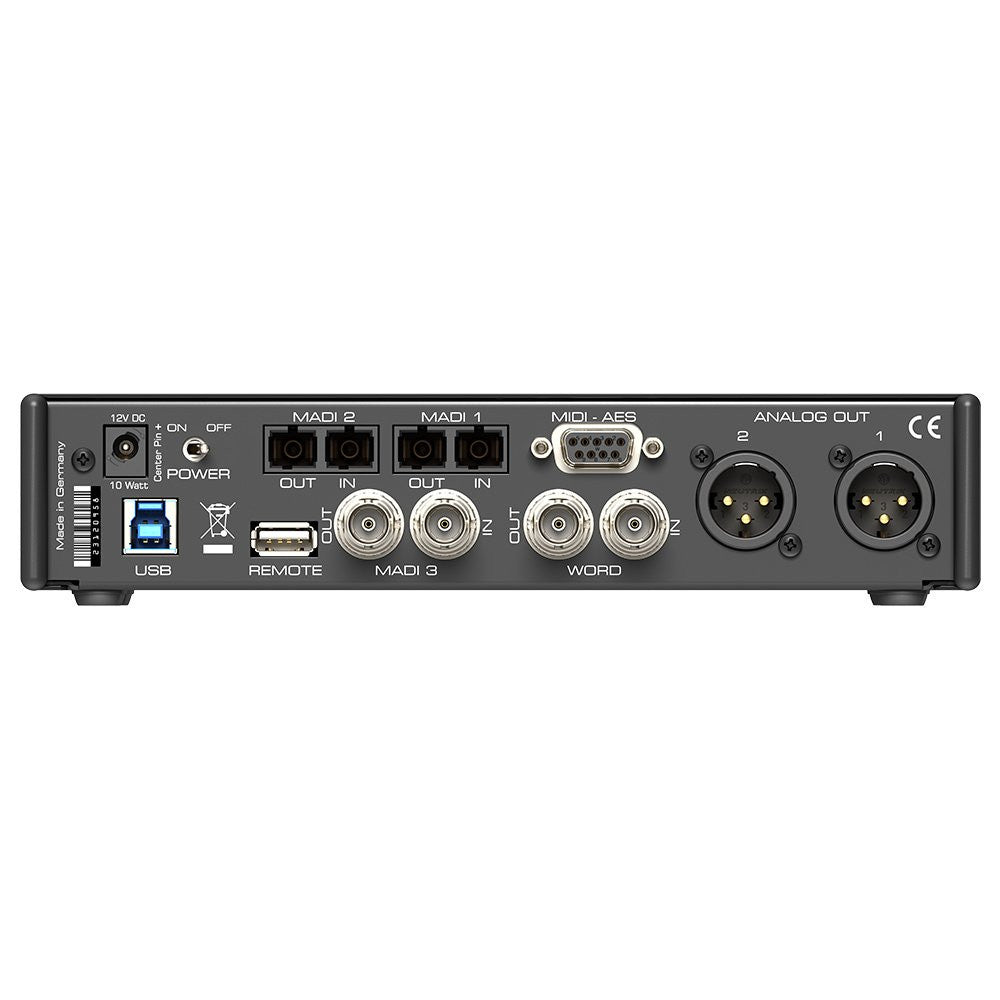

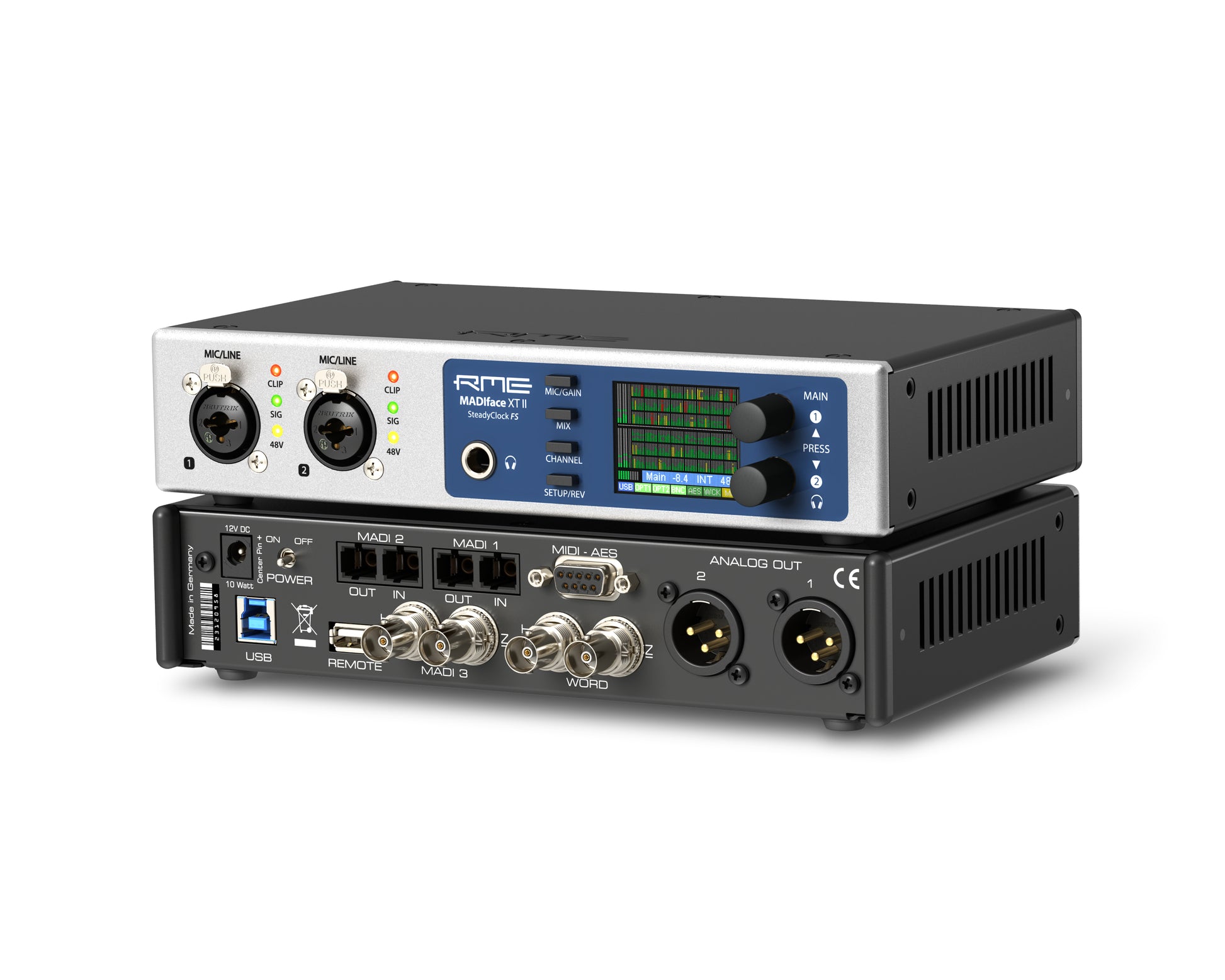

The RME MADIface XT II is a 394-channel 192 kHz USB 3.0 audio interface with
comprehensive connectivity and control options for live and studio use.
Compared to its predecessor MADIface XT, the MADIface XT II features updated digital and analog circuitry and surpasses the first generation with greatly improved analog and digital
performance.
New Analog Records
The MADIface XT left nothing to be desired in terms of connectivity, but the MADIface XT II maintains this successful formula and surpasses the signal values of its predecessor in numerous areas. Among other things, the MADIface XT II has a higher signal-to-noise ratio and a lower THD value during AD conversion.
Furthermore, the maximum balanced line output level of the XLR line outputs has been
increased from +15 dBu to +24 dBu. The stereo headphone output of the MADIface XT II also
delivers a significantly higher output level of +19 dBu and, with an output impedance of 1
Ohm, significantly more power than its predecessor. All outputs also have several switchable
level options.
New Digital Circuit Board
On the new digital board, the previous analog mini-DIN socket for remote control of
individual functions has been replaced by an ARC USB remote port, which enables comprehensive control of the MADIface XT II with the optional ARC USB. The MADIface XT II
also offers the Room EQ known from the Fireface UFX III, with nine parametric bands for use
in surround setups for up to 20 mono output channels.
Femtoseconds for Clocking
With the latest SteadyClock FS, the MADIface XT II features RME's latest clock and jitter
rejection technology. Based on a femto clock, SteadyClock FS reduces the intrinsic jitter
of the MADIface XT II to an absolute minimum, and filters clock jitter efficiently from
as low as 1 Hz.
New Hardware
The MADIface XT II focuses on USB 3.0, as PCIExpress can no longer be used externally.
The device's Class Compliant mode has been significantly upgraded, as all 394 channels
can now be transmitted simultaneously without a driver. In addition, there are various
formats and settings for the channel sequence in order to make optimum use of Class
Compliant.
Product Specs
- Item Number: 33700
- Make: RME
- Model: MADIface XT II
- Condition: Brand New
- Finish: Black
- Categories: pro-audio ⇒ interfaces
- MPN: RME-MADIFACEXTII
