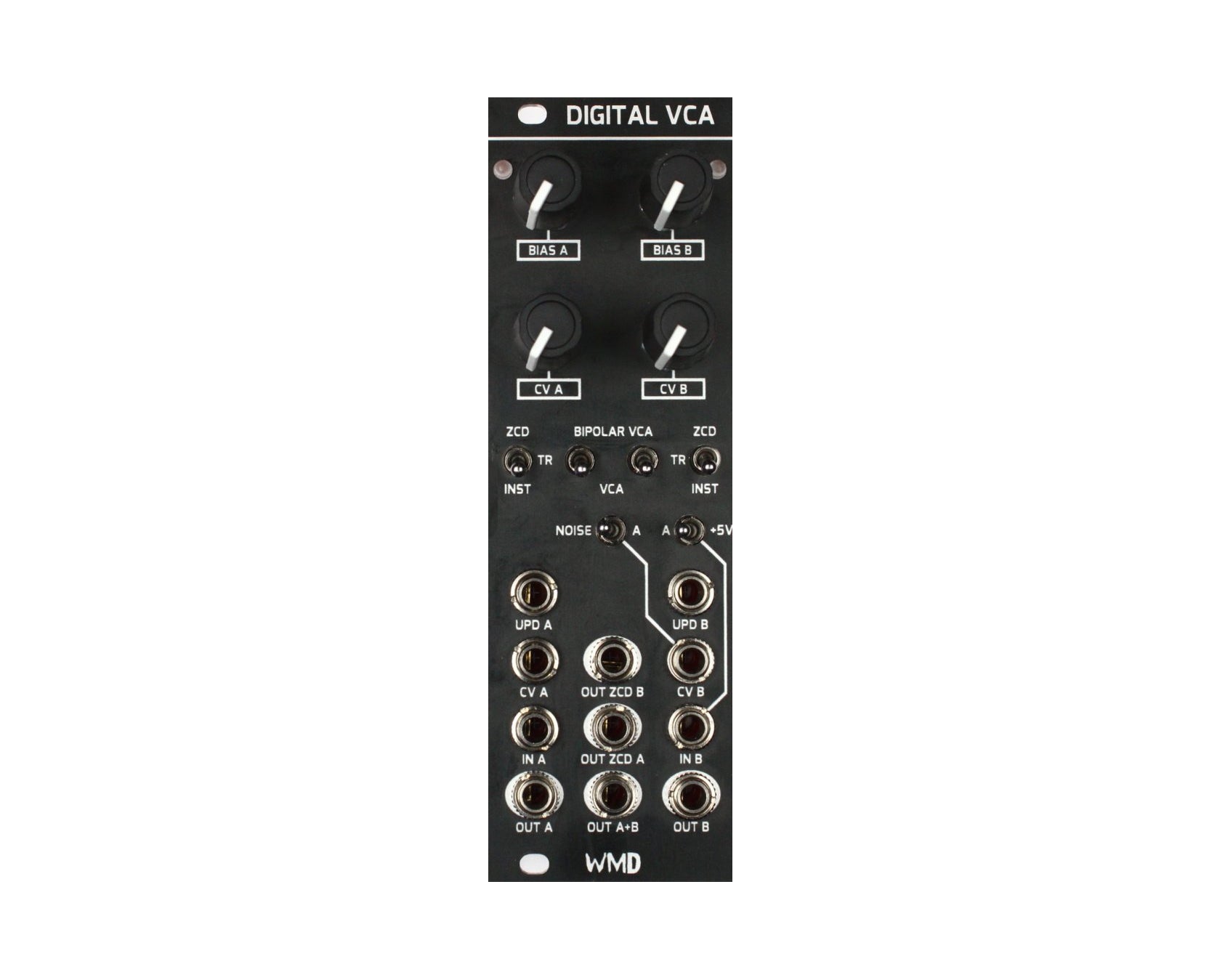

The WMD Digital VCA mkIII is the ultimate iteration of a design that WMD has been perfecting over the years, a digitally controlled VCA that expands on the capabilities of a purely analogue VCA.
The Digital VCA lets signal through like a normal VCA, but the CV and attenuation level is controlled digitally. This lets us do things like wait until there is a zero crossing to change the amplitude, resulting in clickless amplitude changes.Â
The Trigger mode causes the VCA to only update when a trigger is received. The addition of a noise circuit for each side let us do a very quick and easy sample and hold that never droops. With no input, 5V is normaled to the attenuator, so you get a 0-5V sample and hold. In Bipolar mode, you can get -5 to +5V.Â
Both sides have bipolar VCA mode (polarizer), which lets them invert the signal when negative CV comes in. Also known as ring modulation. With the zero crossing detector, this can produce some super wild wave shapes.Â
Limited run of 410 units for Eurorack Modular Synthesizer systems.
Video: https://youtu.be/dMQtpullXEQ
Product Specs
- Item Number: 33362
- Make: WMD
- Model: Digital VCA mkIII
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Polarizer Ring Modulator Sample and Hold VCA Dual/Stereo
- Made In: United States
- MPN: WMD-DVCAMKIII
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 8 HP 35 mm deep
- Power*: 65 mA +12V 45 mA -12V 0 mA 5V
* User contributed details
