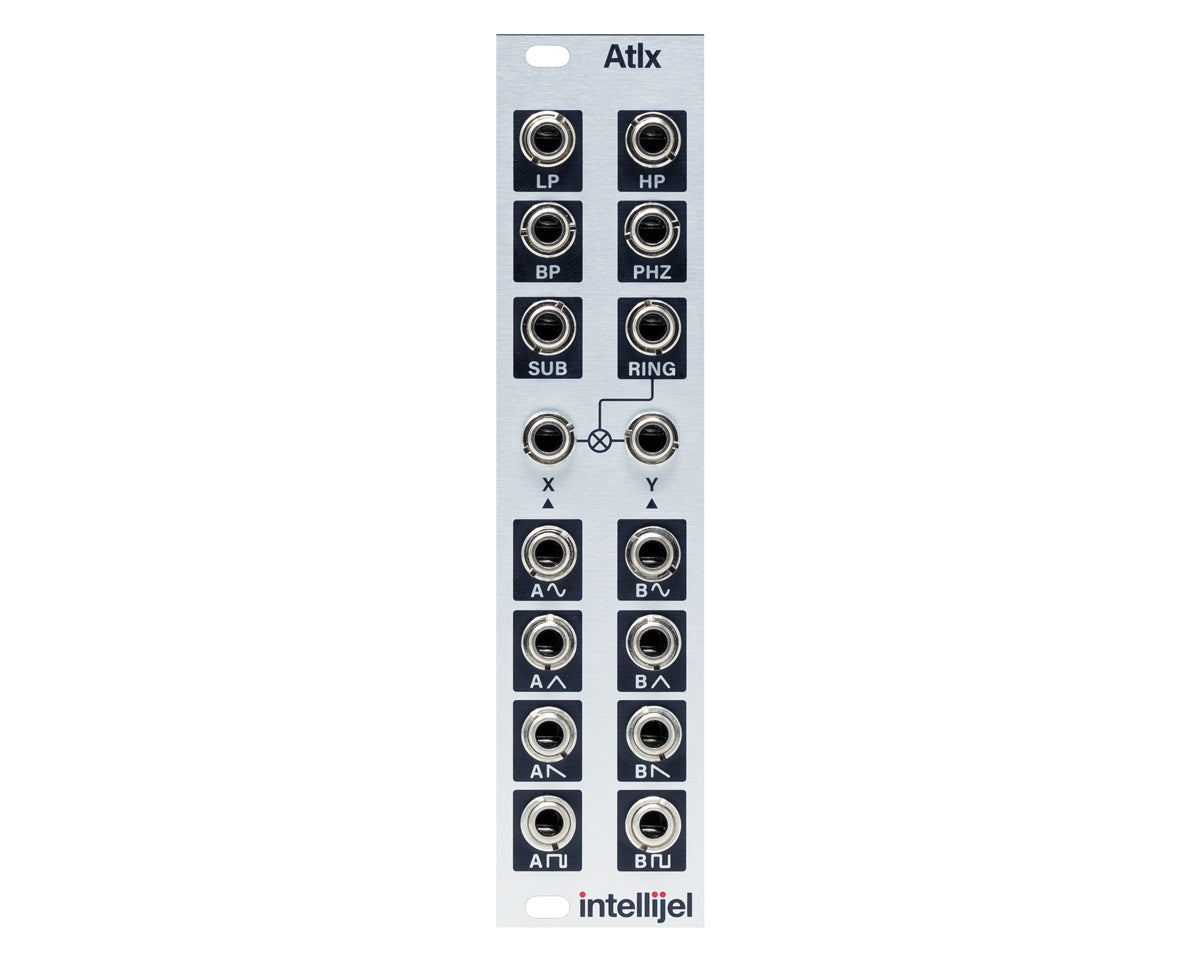

The Atlx expander provides 16 extra jacks to the Atlantix, including dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing and connections to other modules.
Oscillators A/B Outs
* Sine
* Triangle
* Saw
* Square (w/ PWM on A)
* Sub Square (A only)
Filter Outs
* Lowpass
* Highpass
* Bandpass
* Phazor
Â
Ring Mod
* X In
* Y In
* RING Out
Video: https://youtu.be/ooW3k_69oMw
Product Specs
- Item Number: 33183
- Make: Intellijel
- Model: Atlx (Atlantix Expander)
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Expander Ring Modulator
- Made In: Canada
- MPN: ATLX-3U
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 6 HP 22 mm deep
- Power: Module does not draw current
