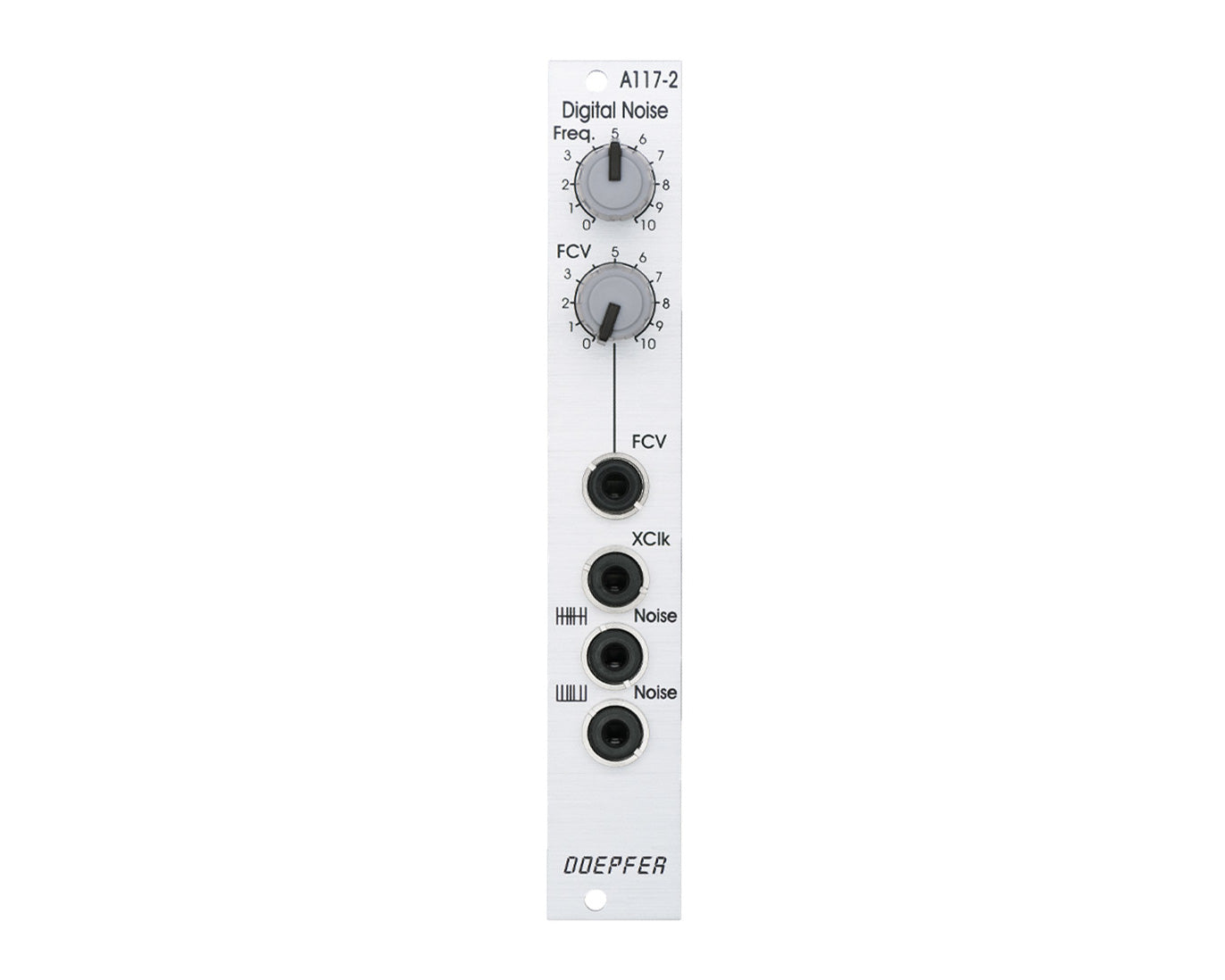

Module A-117-2 contains a digital voltage controlled noise generator that produces random sequences of square pulses whose rate can go from random clicks to audible noise.
The colour of digital noise is different from analog noise. The frequency of the internal clock oscillator can be adjusted manually (control "Frequ.") and via an external control voltage input ("FCV") with associated attenuator.
It has an internal clock range of about 50Hz to 40kHz. With control FCV fully clockwise the sensitivity of the control voltage input is roughly 1V/octave.
Alternatively the noise rate can be controlled by an external clock signal (e.g. from a VCO, High-Speed-VCO, LFO, midi clock). For this there is an "XClk" socket. As soon as a patch cable is inserted into this socket the internal oscillator is turned off and the signal applied to the XClk" socket is used to generate the noise instead of the internal clock signal.
The module has two noise outputs available: a zero-symmetrical output (upper noise socket) and pure positive output (lower noise socket). The symmetrical signal is used primarily for audio applications. The positive output is used primarily for digital control applications (e.g. random envelope triggering, random clock signal or random switching functions).
Video: https://youtu.be/79SxLCkYZBU
Product Specs
- Item Number: 32982
- Make: Doepfer
- Model: A-117-2 Digital Noise
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Digital Noise
- Made In: Germany
- MPN: A-117-2
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 4 HP 45 mm deep
- Power*: 20 mA +12V 10 mA -12V ? mA 5V
* User contributed details
