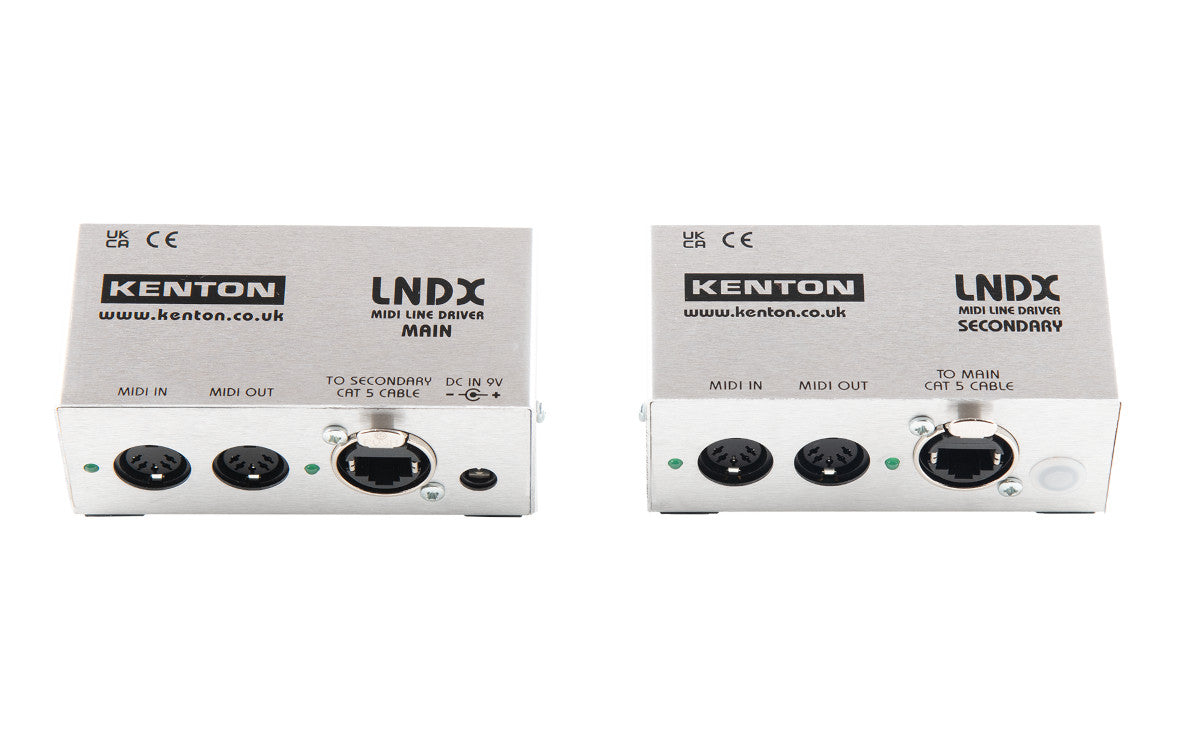

The LNDX MIDI Line Driver Pro extends MIDI beyond its 15 metre (50 feet) specification using CAT5 cable terminated with etherCON connectors.
LNDX comes as a main and secondary pair that allows MIDI to be sent accurately in both directions at the same time, across distances of over 500 metres (1640 feet) using a standard CAT5e cable terminated by Ethercon connectors - This is over 33 times the distance achievable using standard MIDI cables.
Its combination of balanced line drivers and twisted pair cable (CAT5e) gives a high degree of immunity to noise, which results in a very high degree of signal integrity – a very reliable MIDI link over much greater distances than can be achieved with ordinary MIDI connections.
CAT5e cable is recommended: CAT5 cable will limit the transmission length to 100m.
The CAT5 cable from an LNDX main unit should only be connected to an LNDX secondary unit, not to another main unit, and NEVER to any other device, even if it has a similar connector. (e.g. Ethernet).
The main unit is mains powered using the included power supply, and the secondary unit is powered by the main unit over the Cat5e cable.
Includes regulated 9V DC 2.1mm centre-positive power supply.
Product Specs
- Item Number: 32804
- Make: Kenton
- Model: LNDX MIDI Line Driver Pro
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ keyboard-midi-controllers
- Made In: United Kingdom
- MPN: LNDX
- EAN: 5060491450970
