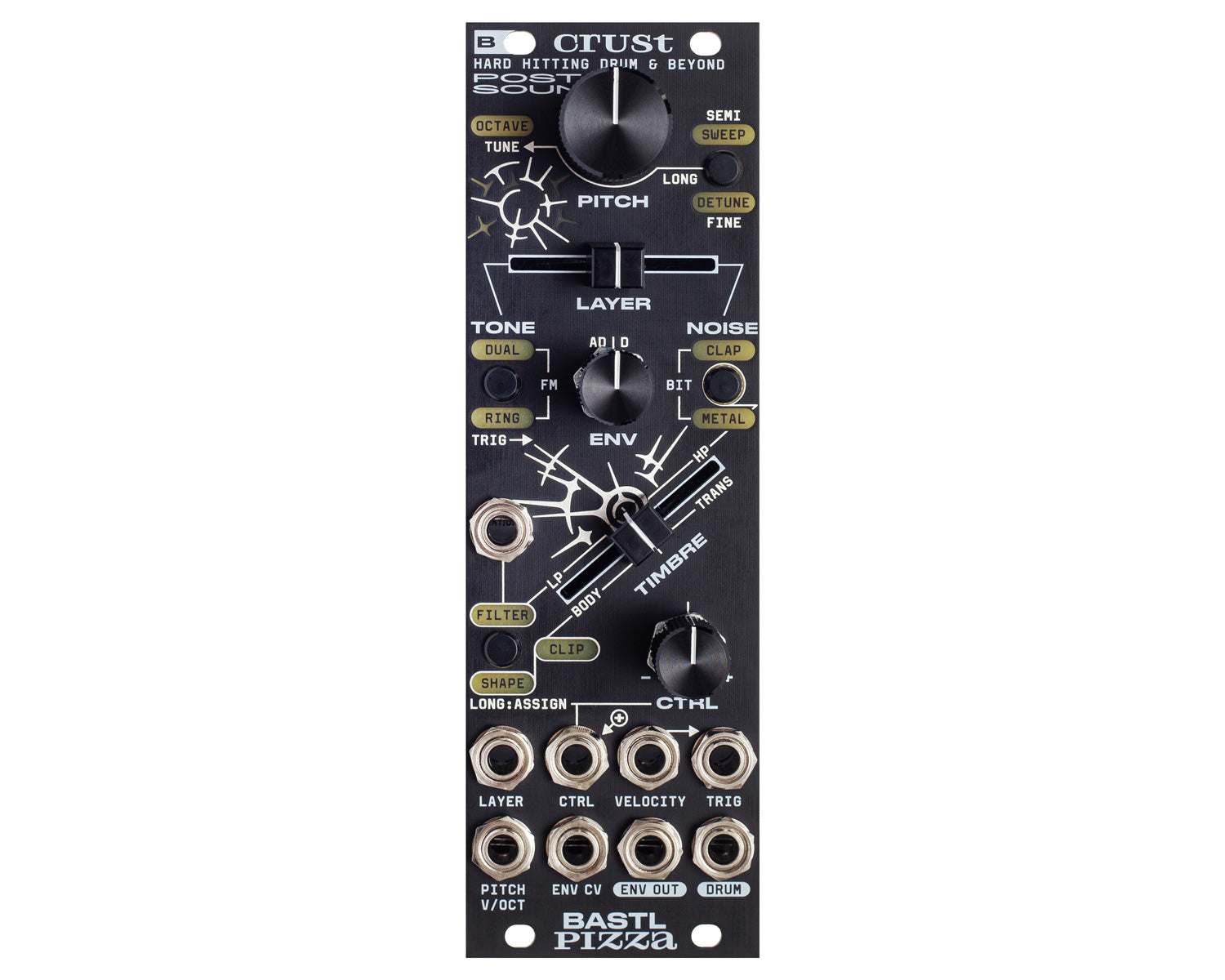

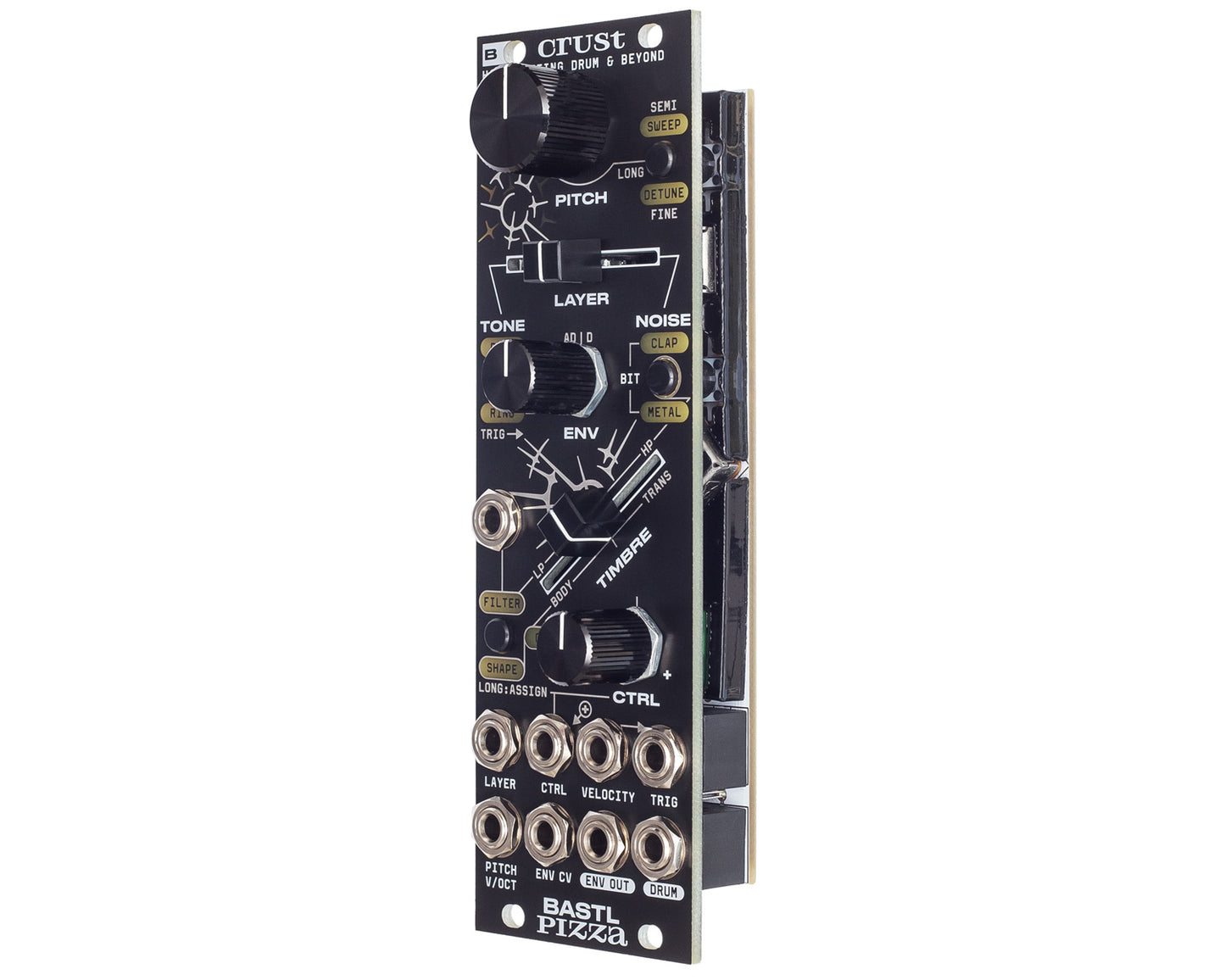

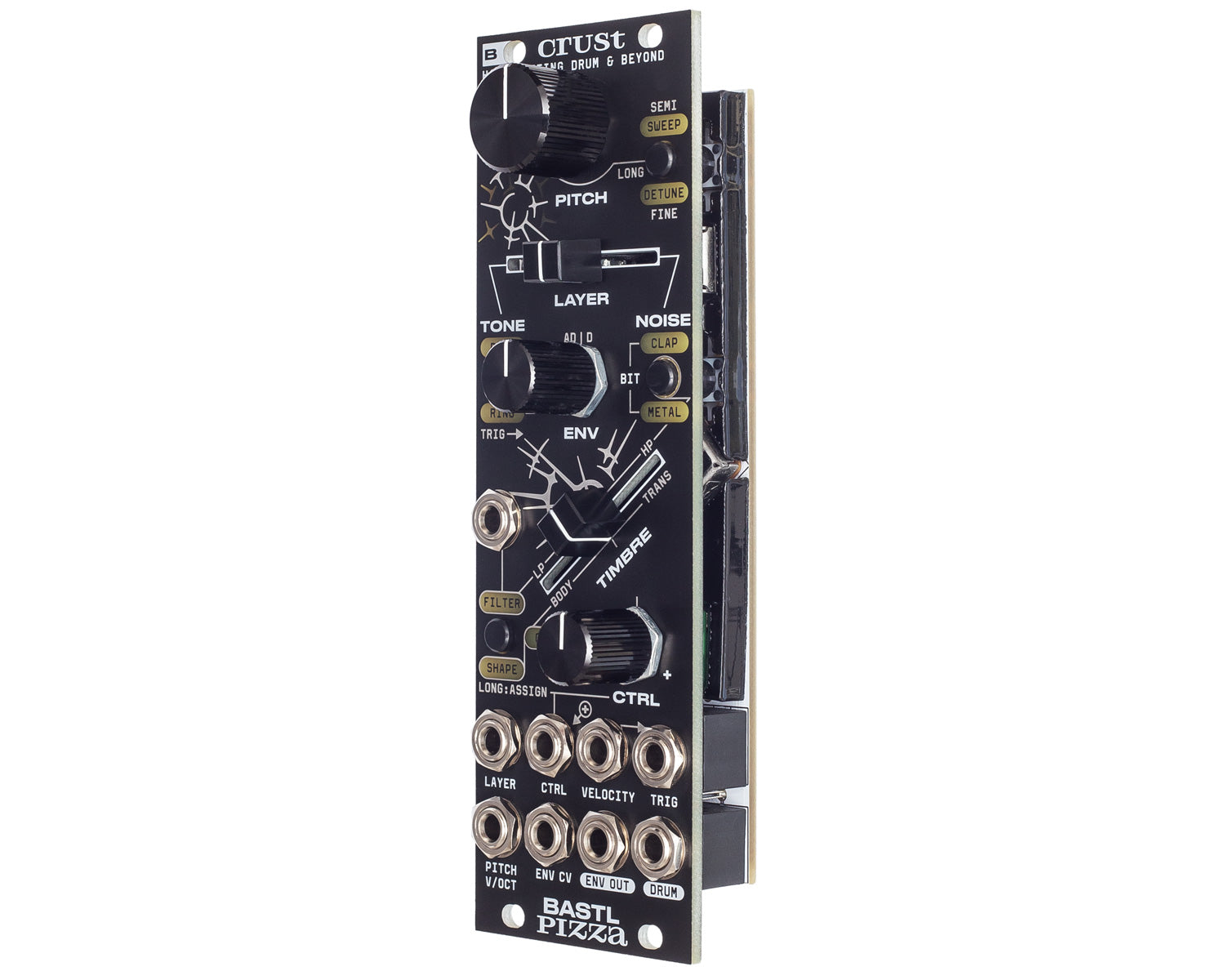

Pizza Crust is a hard-hitting drum voice that goes way beyond drum territory. It consists of two layers - the NOISE source and dual oscillator TONE generator. Hard-hitting drums need a lot of transient attention and CRUST has you covered with the combination of pitch envelope, layer mixing, FM envelope, and transient shaper with hard-clipping.
Features
- Complex drum voice
- Dual oscillator TONE layer with pitch settings
- OCTAVE, DETUNE, pitch SWEEP, SEMI and FINE tune
- 4 TONE shaping algorithms: FM, FM2, RING and DUAL
- NOISE layer with filter and 4 algorithms: WHITE, BIT, CLAP and METALMETALIC
- LAYER fader macro for balancing the TONE and NOISE layer by envelope settings and volume
- ENV knob to lengthed decay to the right (CW of 12 o'clock) and both attack and decay to the left (CCW of 12 o'clock)
- Dedicated CV input for LAYER and ENV
- ENV output
- V/OCT input with calibration to tune the TONE layer
- TIMBRE section with 3 parameters: FILTER, CLIP and SHAPE and a dedicated CV input
- FILTER is lowpass/highpass filter of the NOISE layer
- CLIP is a clipper with transient focus (hard clip) or body bass boost focus (soft clip)
- SHAPE settings for the TONE layer with BODY focus or TRANSIENT focus trigger input
- Sample & Hold for every CV input (can be turned on/off) manual triggers
- Velocity input - when trigger not connected it acts as input for external envelope
- Assignable CTRL knob and CTRL CV option
- Firmware updates via micro USB
- Interchangeable HW with the Pizza Oscillator (just a different panel)
Video: https://youtu.be/qpOCb8RCTeo
Product Specs
- Item Number: 32759
- Make: Bastl Instruments
- Model: Crust
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Digital Drum
- Made In: Czech Republic
- MPN: CRUST
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 8 HP 24 mm deep
- Power*: 90 mA +12V 20 mA -12V 0 mA 5V
* User contributed details
