Created by Erica Synths & Richie Hawtin, Bullfrog is an educational electronic music instrument that invites you to unlock musicality while combining the thrill of electronic music production with a comprehensive learning experience.

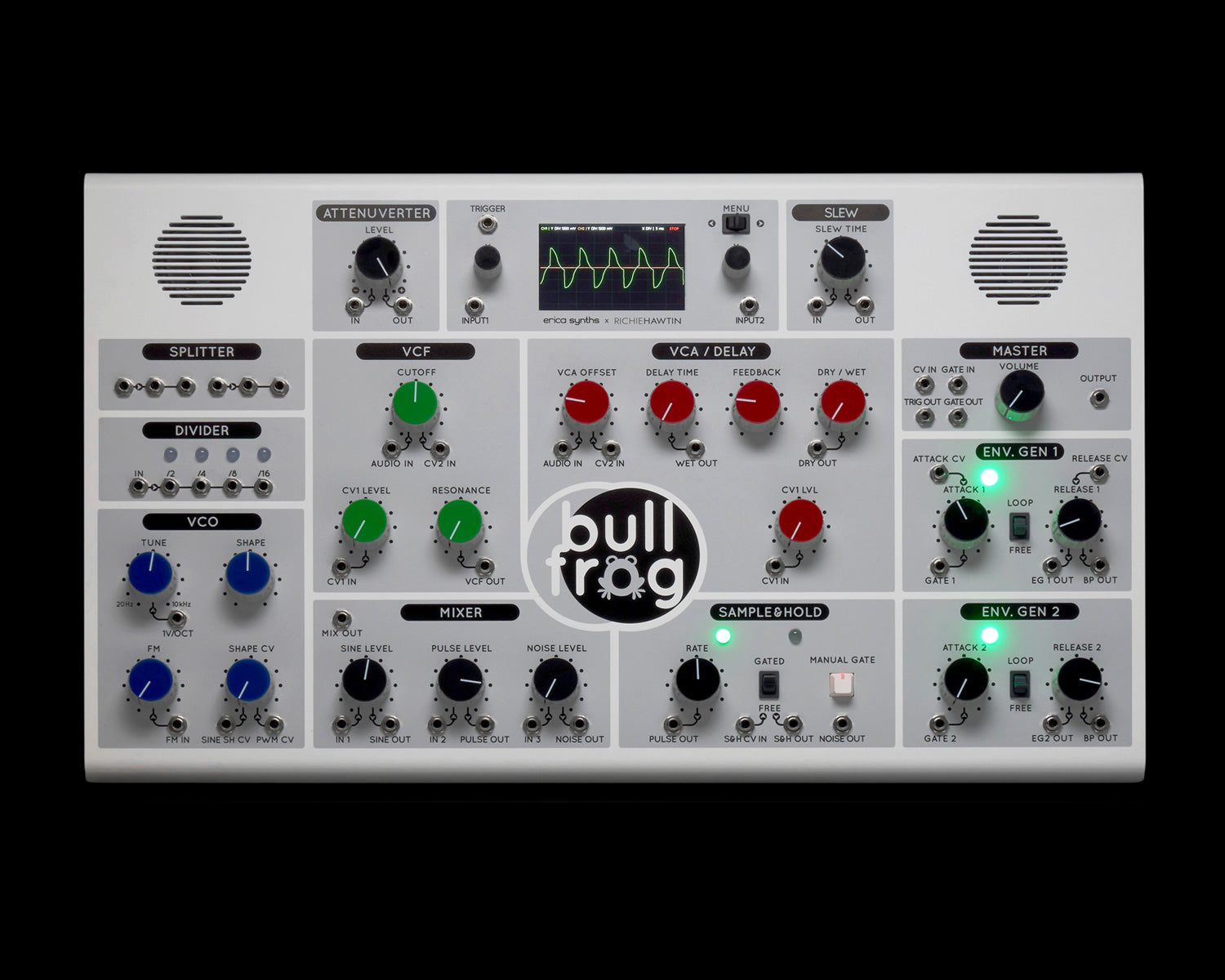

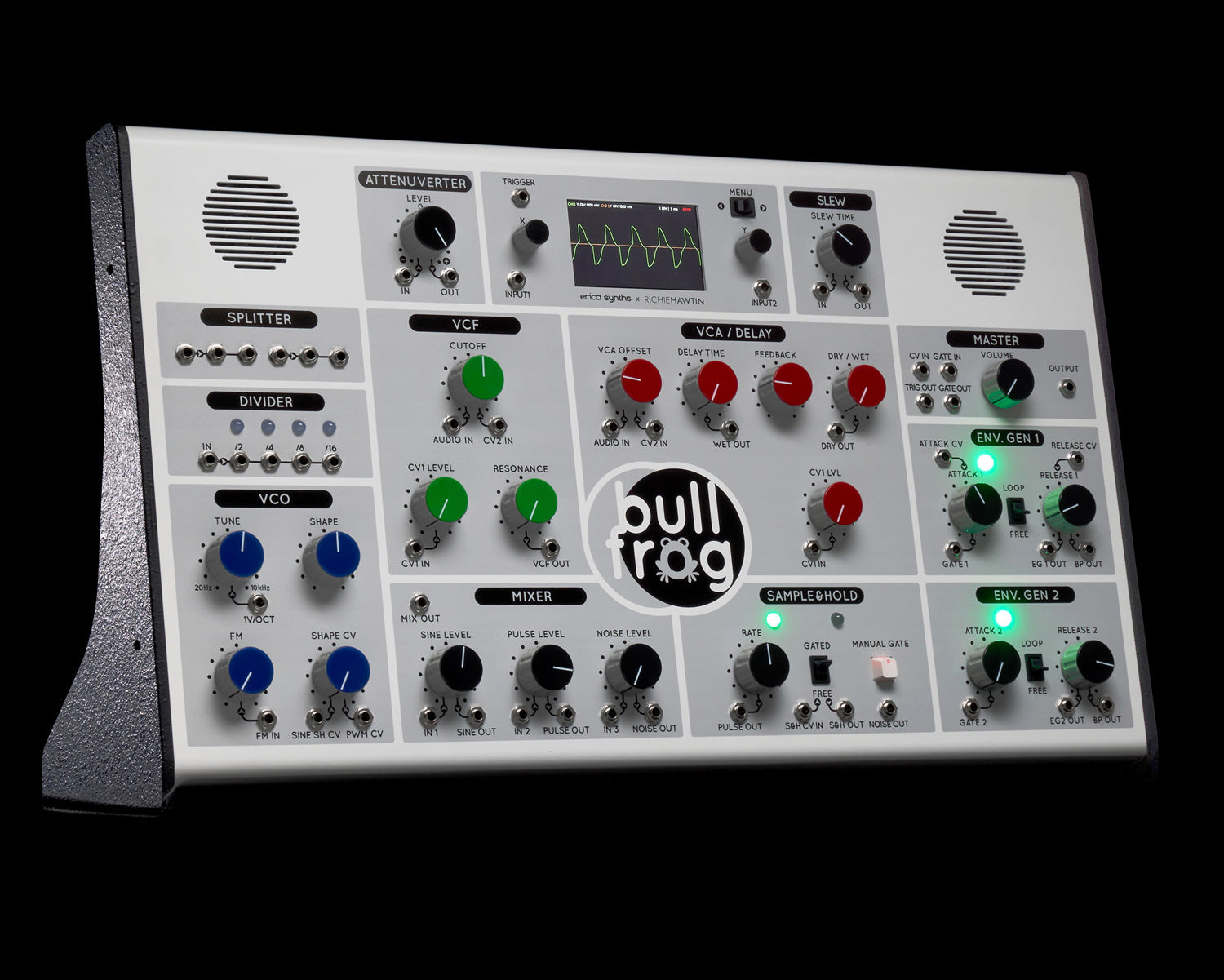

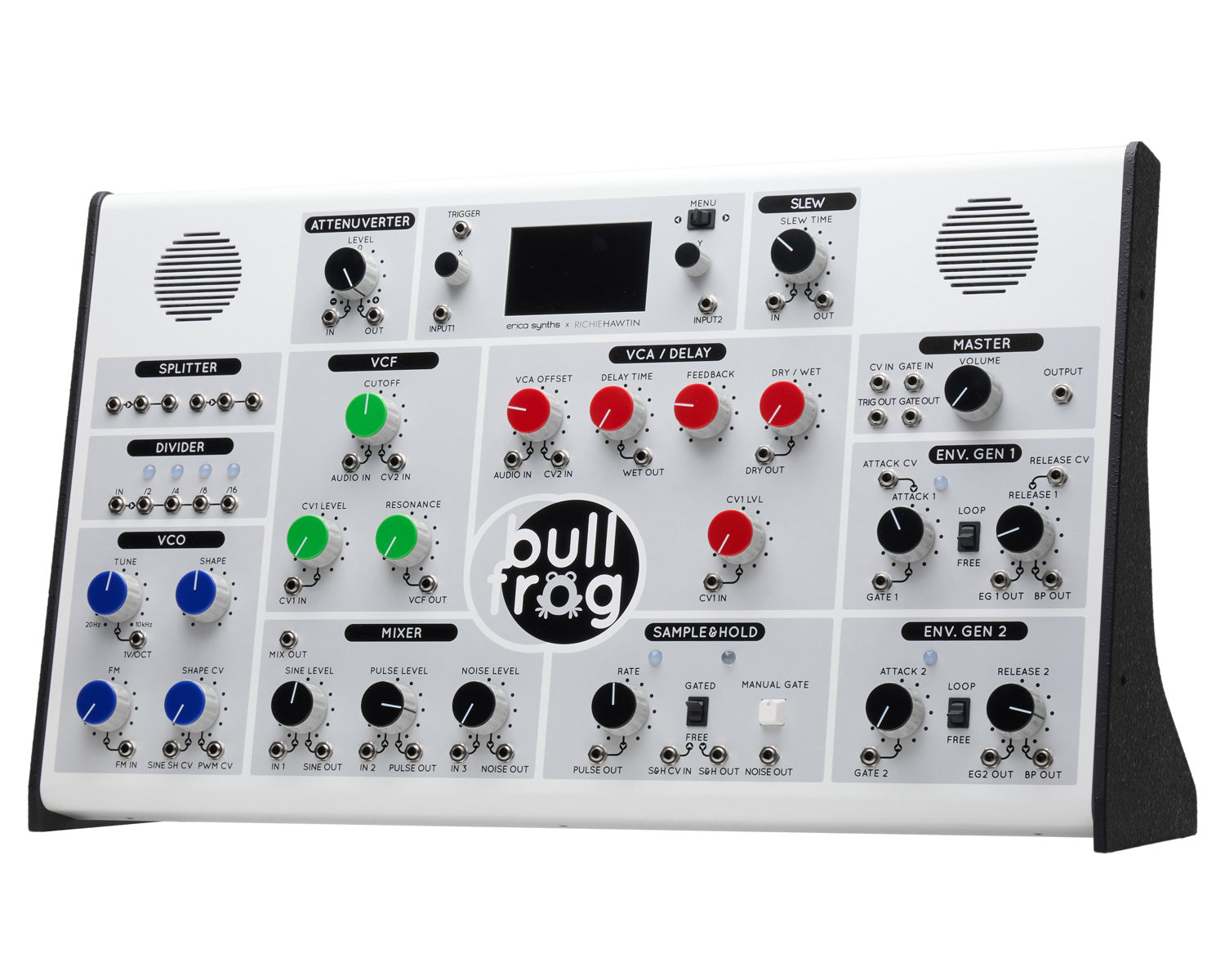

Bullfrog XL is designed specifically for teachers to use in front of the classroom and it expands the concept of the regular Bullfrog by inflating its size by a factor of 3.
Features:
- Fully analogue design
- Highly accurate voltage controlled oscillator (VCO) that tracks great over 8 octaves
- Manually adjustable and voltage controlled waveshapes – sine-shark fin and pulse wave with pulse width modulation (PWM)
- Zener diode-based noise generator
- Resonant lowpass voltage controlled filter (VCF)
- Voltage controlled amplifier (VCA) with adjustable offset
- Delay effect with adjustable delay time and feedback amount
- Two looping attack-sustain-release envelope generators (EG)
- Sample & Hold circuit with an individual clock
- Attenuverter
- Slew processor with adjustable slew time
- Two buffered splitter circuits
- Two channel oscilloscope
- 6.3 mm jack sockets
- Manual gate button
- Gate and Trigger out
- Voice card slot
- Built in speakers
- DIN5 MIDI input
- USB connector
- Keyhole slots on the rear panel
- Dimensions (mm): 820x505x65 (250 with the side panels)
- Mass: 8.3 kg.
Bullfrog is a classical subtractive synthesiser that consists of several “modules” for sound generation – VCO, NOISE GENERATOR - and treatment – VCF, VCA/DELAY, as well as “modules” that generate control and modulation signals to control them – ENVELOPE GENERATORS and SAMPLE & HOLD. The Bullfrog will not make the sound on its own unless it is patched – using eurorack patch cables to interconnect the “modules” or by inserting voice cards that create internal connections between the “modules” in a specific way and add extra functionality, like sampler/looper, sequencer, groovebox, etc. This approach better helps to understand the functionality of a subtractive synthesiser and the principles of sound design with instruments like these.
What’s included:
- BULLFROG XL synthesiser with side-panels
- Universal 12VDC wall wart adapter with the power cable
- User manual
- 12 1/4” patch cables
- Sequencer, Sampler/Looper, Acid Bassline, Hipass filter, LFO and Electric Organ Voice cards
- 3 DIY voice cards
In order to provide a well-rounded understanding of the functionality of this synthesiser and sound synthesis in general, a comprehensive user manual is created to accompany the learning process.
Video: https://youtu.be/M3JT64dZE0s
Product Specs
- Item Number: 32704
- Make: Erica Synths
- Model: Bullfrog XL
- Condition: Brand New
- Finish: White
- Categories: keyboards-and-synths ⇒ complete-modular-synth-systems
- Made In: Latvia
- MPN: ES-BFXL
- EAN: 4752275000464
