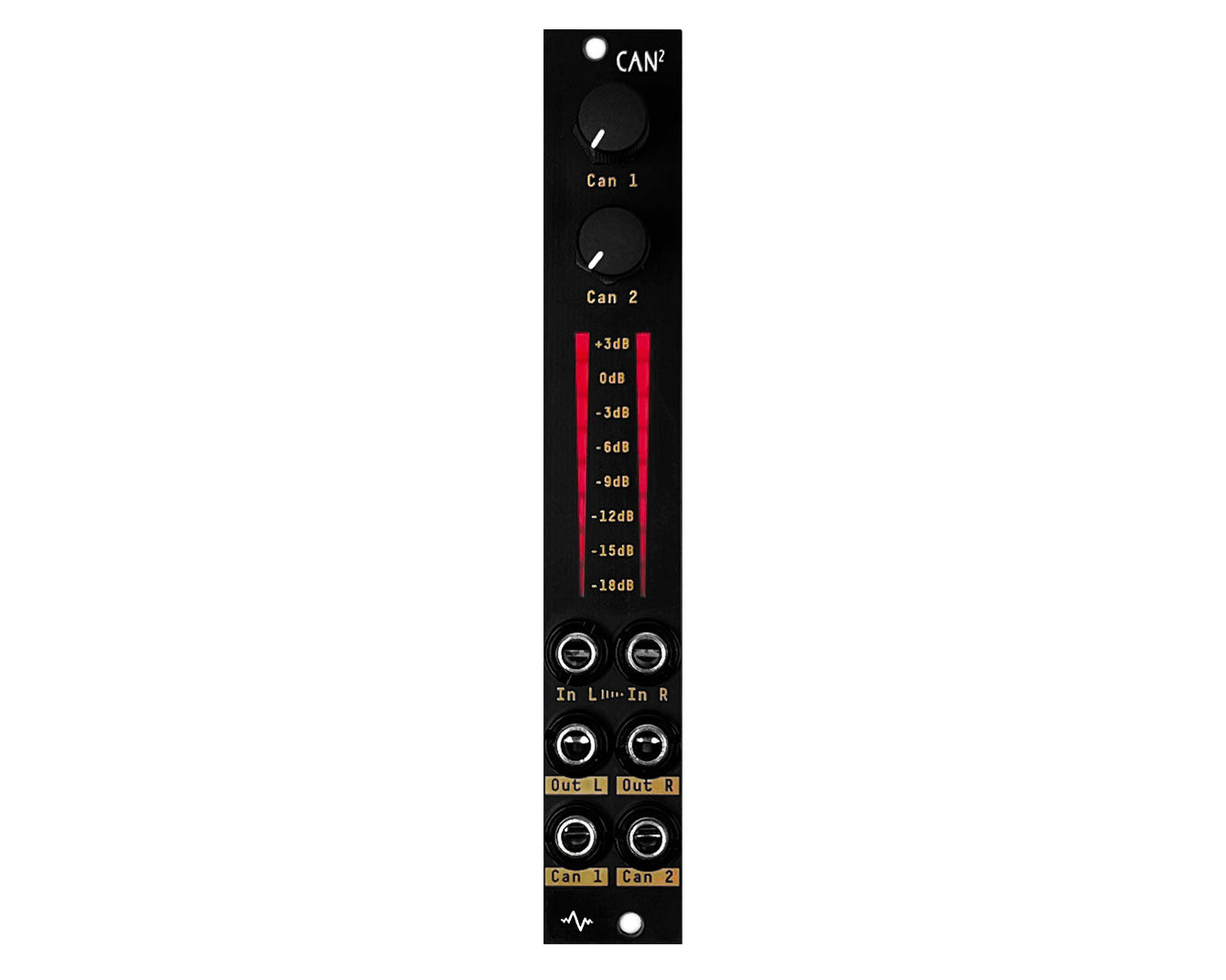

CanCan is a dual headphone amp for your eurorack modular system. This 4hp module uses parallel high-current opamps to deliver studio quality sound to headphones of impedances from 16 to 600 Ohms. Each output has an individual volume control for jamming with friends, and there's an eight-segment program level LED indicator for keeping an eye on those levels, switchable between peak and average levels.
Features
- Low Output Impedance (0.5 Ohm): Ensures a high damping factor for precise control and exceptional low-frequency response
- Universal Headphone Compatibility: Supports a broad impedance range of 16 to 600 Ohms
- Multi-Stage Low Noise Design: Guarantees low distortion and high stability for true-to-source audio reproduction
- High Output Current (Up to 140mA) - For driving power-intensive headphones up to 600 Ohms with ease
- Visual Feedback: Dual 8-segment LED program level meters for monitoring input signal levels
- Output Flexibility: Possible to use one output for driving monitors (using a Y splitter)
- Full-Spectrum Audio Fidelity: Offers a 20Hz to 20kHz bandwidth, perfect for all audio experiences
- Protection Features: Includes comprehensive RF and DC input protection with resettable fuses for short-circuit output safety
Tech Specs
- 4HP
- 46mm depth
- Reverse polarity protected
- +12V 150mA
- -12V 150mA
Video: https://youtu.be/pLSBj_0w328
Product Specs
- Item Number: 30736
- Make: Apollo View
- Model: CanCan
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: PreAmp Dual/Stereo External
- Made In: United Kingdom
- MPN: APLL04
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 4 HP 46 mm deep
- Power: 150 mA +12V 150 mA -12V ? mA 5V
