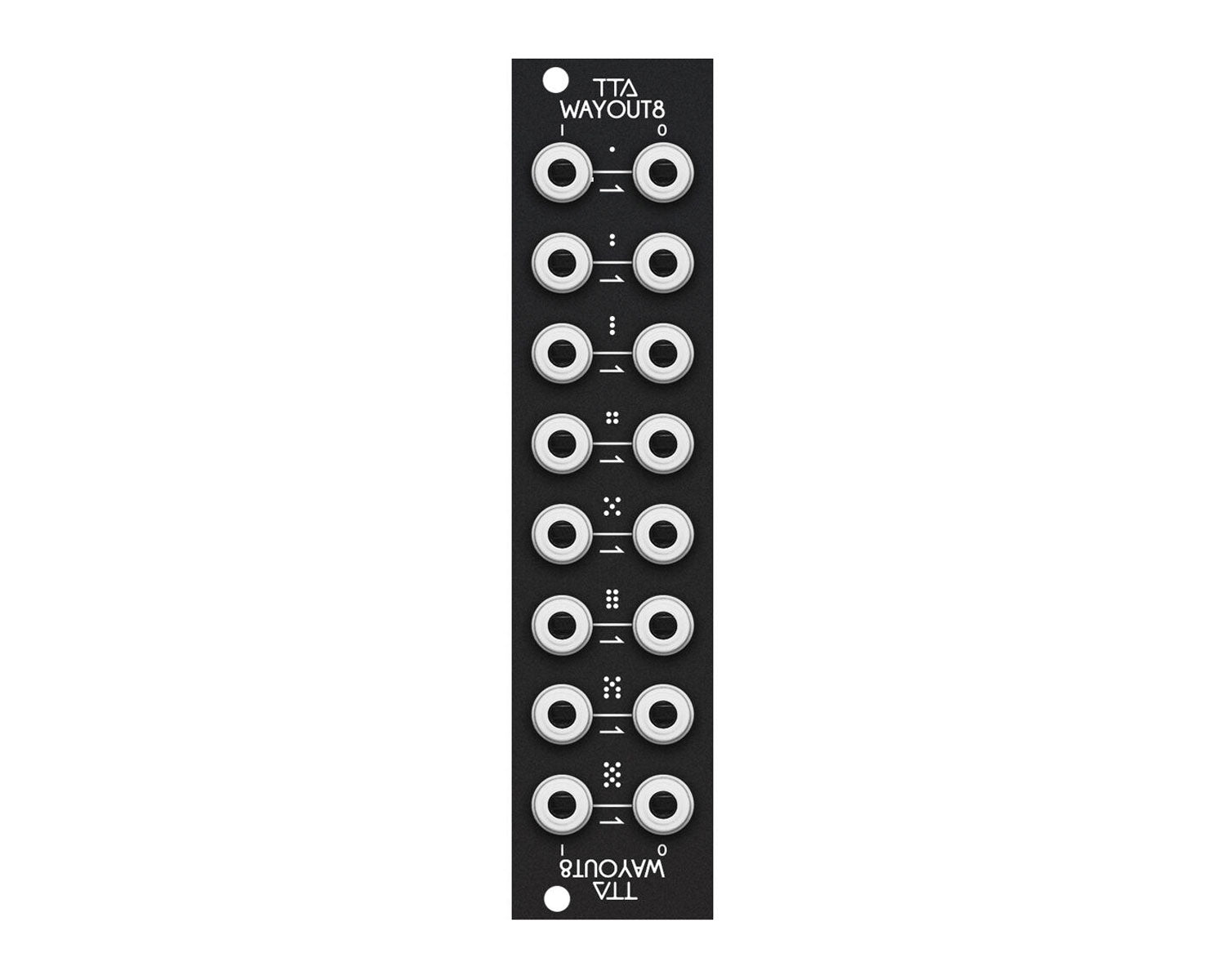

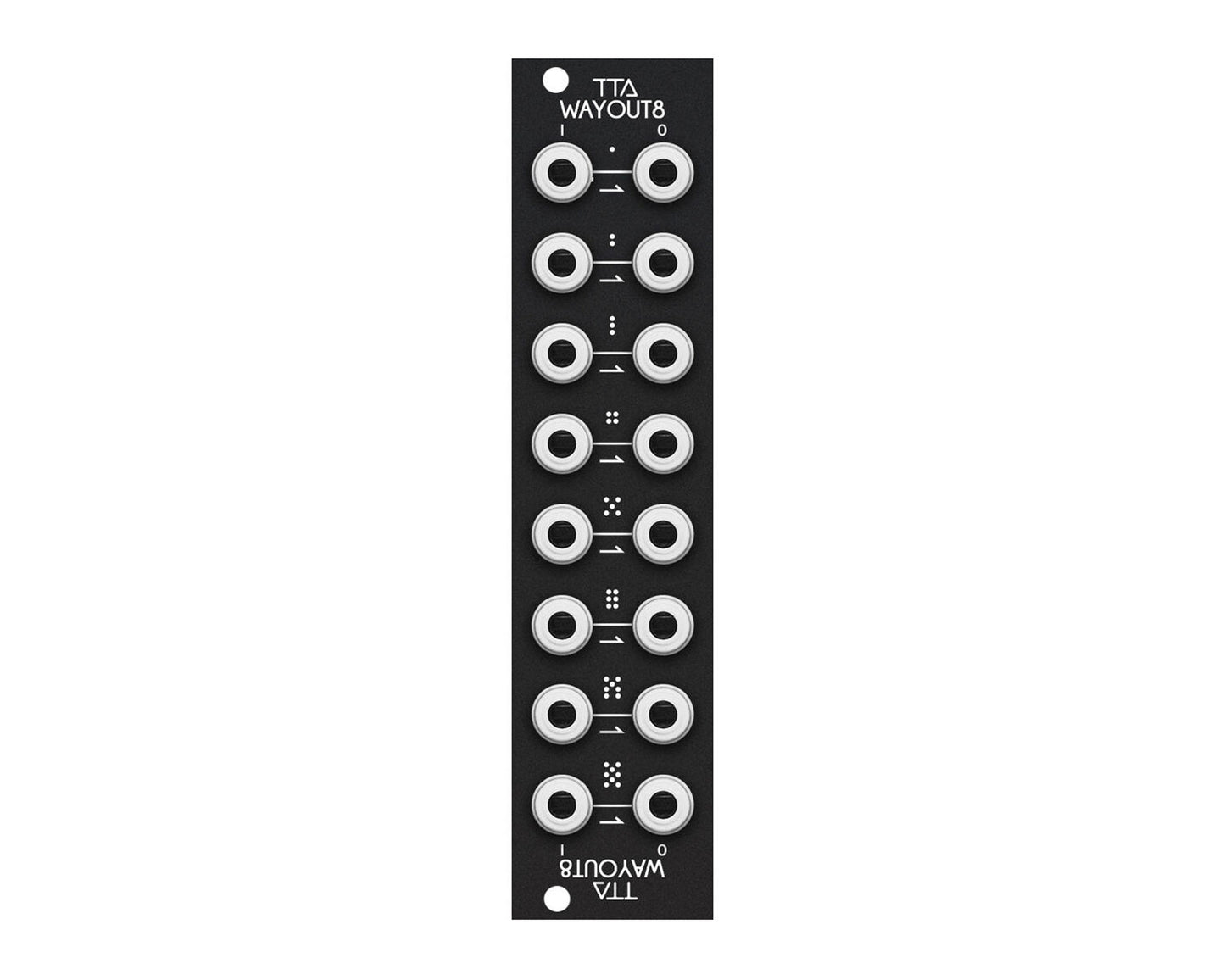

Tiptop Audio Wayout8 Patchbay - Black

WAYOUT8 is a completely passive patchbay module for Eurorack systems used to group your DAW inputs and outputs, or manage signals going from one case to another. Wayout8 is grounded, meaning that even if nothing is plugged into the inputs your outputs are still grounded and will not pick up noise. The module is made so it can be in either orientation, with outputs on the left or right, whichever is the most ergonomic placement in your case. All eight channels are passive so they do not modify your signals and can be used for audio and CV Gate.
No power is required.

Video: https://youtu.be/oi3JlX23edU

Product Specs

• Item Number: 29657
• Make: Tiptop Audio
• Model: Wayout8 - Black
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Utility
• Made In: Thailand
• MPN: TTA-W8BLK
• EAN: 8859469901432
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 10 mm deep
• Power*: Module does not draw current

* User contributed details
