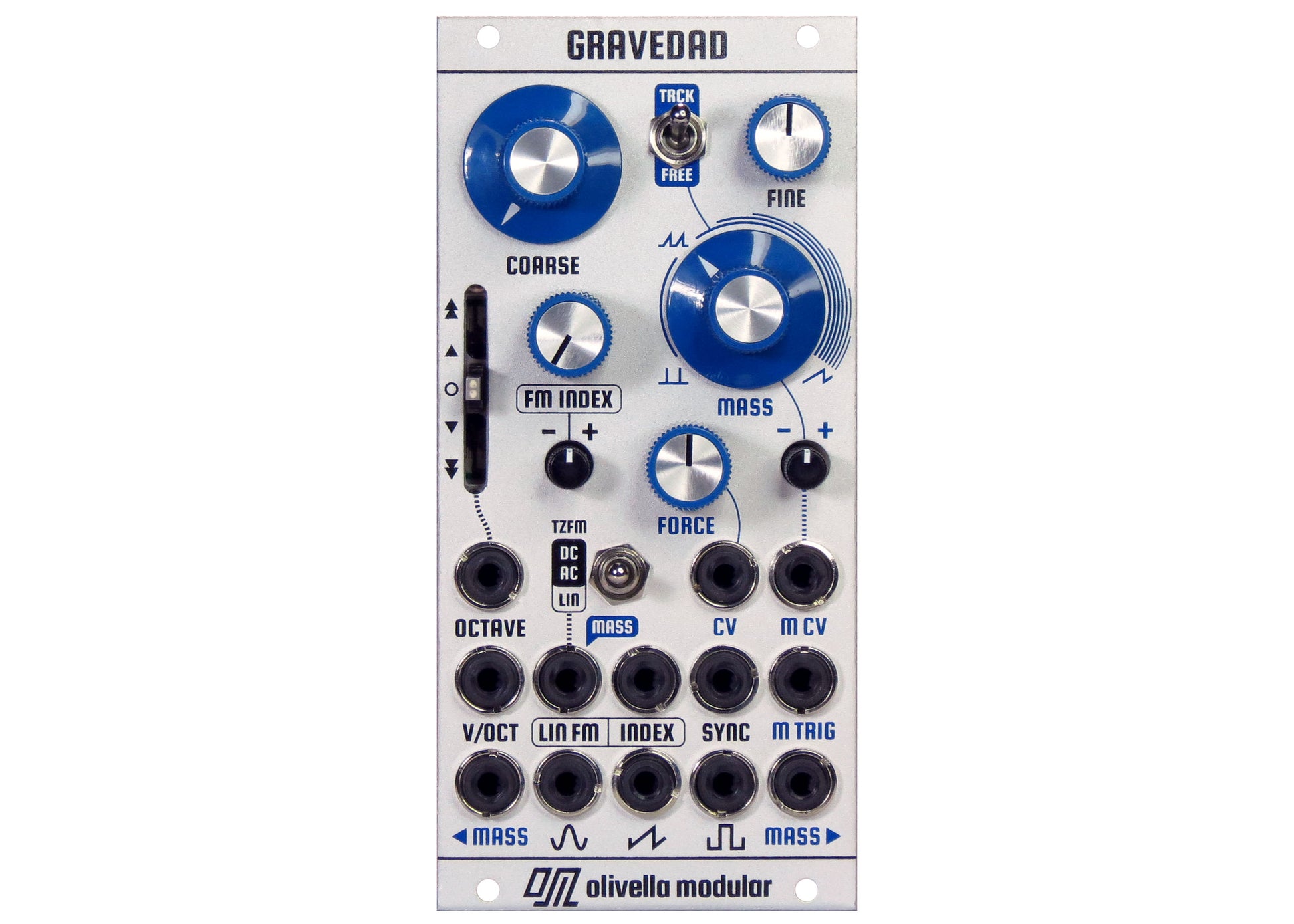

GRAVEDAD (/grah-veh-dahd/, gravity) is a feature-packed, analogue semi-complex oscillator with through-zero FM, an F-A-T stereo sub-harmonic generator, a voltage-controllable octave slider and excellent tracking up to 10 octaves, opening up an entire universe of sonic possibilities.
At the heart of GRAVEDAD is a super-stable triangle core VCO, featuring not only incredible tracking and temperature compensation but also clean sine, sawtooth, and square wave outputs.Â
Whether you need a VC clock divider, an attack-only envelope generator, a sub for an external oscillator, or a tool for any kind of signal generation, GRAVEDAD is your gateway to cosmic innovation.
- 12 HP
- Depth: 32 mm
- 2 mm anodised aluminium panel
- Input impedances: 50 kΩ (V/OCT), all others 100 kΩ
- Output impedance: 510 Ω
- +12V: 110mA
- -12V: 110mA
- Reverse-polarity power protection
Video: https://youtu.be/RIHv8faZvkk
Product Specs
- Item Number: 29170
- Make: Olivella Modular
- Model: Gravedad
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Dual/Stereo Frequency Divider Oscillator Waveshaper
- Made In: Argentina
- MPN: LVEL04
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 12 HP 32 mm deep
- Power: 110 mA +12V 110 mA -12V 0 mA 5V
