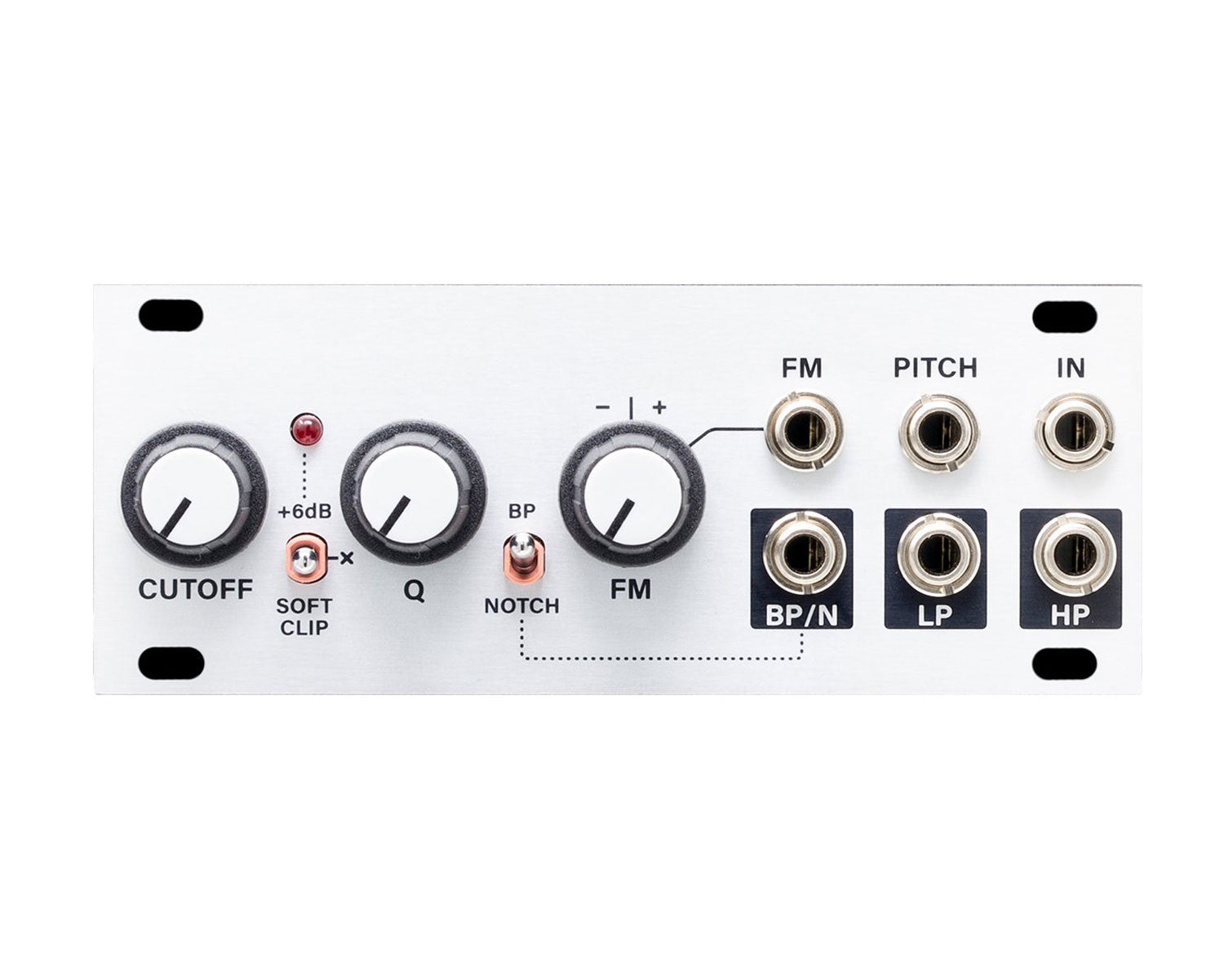

The SVF 1U is the perfect 1U, multimode, voltage-controlled filter for sweet-sounding subtractive synthesis or to form the basis of more complex patches. Its punchy, clean, and precise.
Explore new sounds through the dual modulation inputs and dedicated low pass, high pass and band pass/notch outputs. This filter responds nicely to audio rate FM and you can self-patch to get even more interesting filter responses. Adjust the Q for a sharp howl or use it as a sine VCO.
Features:
- Dedicated 2-pole Low pass filter (LP) and 2-pole High pass filter (HP) outputs.
- Switchable Bandpass filter (BP) and Notch filter (N) output.
- Optional +6dB input boost and asymmetric clipping circuit.
- PITCH input tracks 1V/Oct accurately over 4+ octaves.
- M CV input with attenuverter.
- Capable of generating very low distortion sine waves from 2Hz to 20kHz when driven to self oscillation (Max Q).
Size: 20HP
Depth: 35mm
Power:Â 27mA @ +12VÂ 30mA @ -12V
Video: https://youtu.be/7RkOZsOnL8M
Product Specs
- Item Number: 28625
- Make: Intellijel
- Model: SVF 1U
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Filter Oscillator
- Made In: Canada
- MPN: SVF-1U
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 20 HP 35 mm deep
- Power: 27 mA +12V 30 mA -12V ? mA 5V
