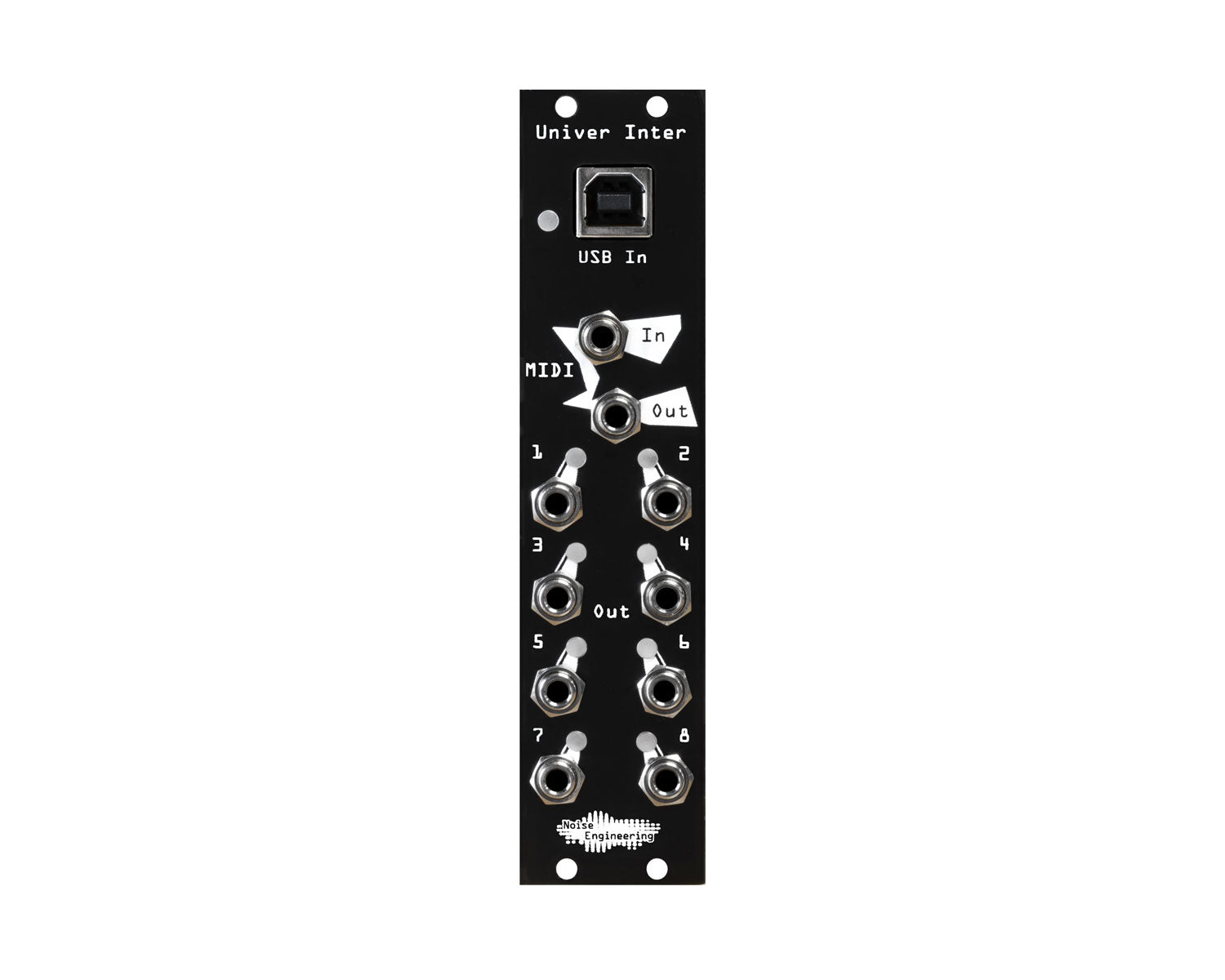

The Noise Engineering Univer Inter is a 6HP chainable 8-output MIDI-to-CV converter and USB MIDI interface.
Whether you’re looking to map clock, note, CC, aftertouch or something else that MIDI can encode, UI can do it: it has over 20 settings for each of the 8 outputs built in.
You can connect to it via USB B or TRS MIDI, and configure it via front-panel USB connection to the app at the Noise Engineering Customer Portal. Each channel can be configured independently, or simple presets can set outputs to common uses. You can also save configuration files and load them as sysex files for easy backup and sharing.
If eight outputs isn’t enough, you can chain two Univer Inters together via their front-panel MIDI ports and a TRS cable for 16 configurable CV outputs from a single MIDI connection. The possibilities are endless.
Includes a USB A to B cable and a TRS to 5-pin MIDI cable.
Video: https://youtu.be/8ZR1Hx4QaAI
Product Specs
- Item Number: 28003
- Make: Noise Engineering
- Model: Univer Inter
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: MIDI
- Made In: United States
- MPN: NE_UI_Black
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 6 HP 23 mm deep
- Power: 40 mA +12V 10 mA -12V 0 mA 5V
