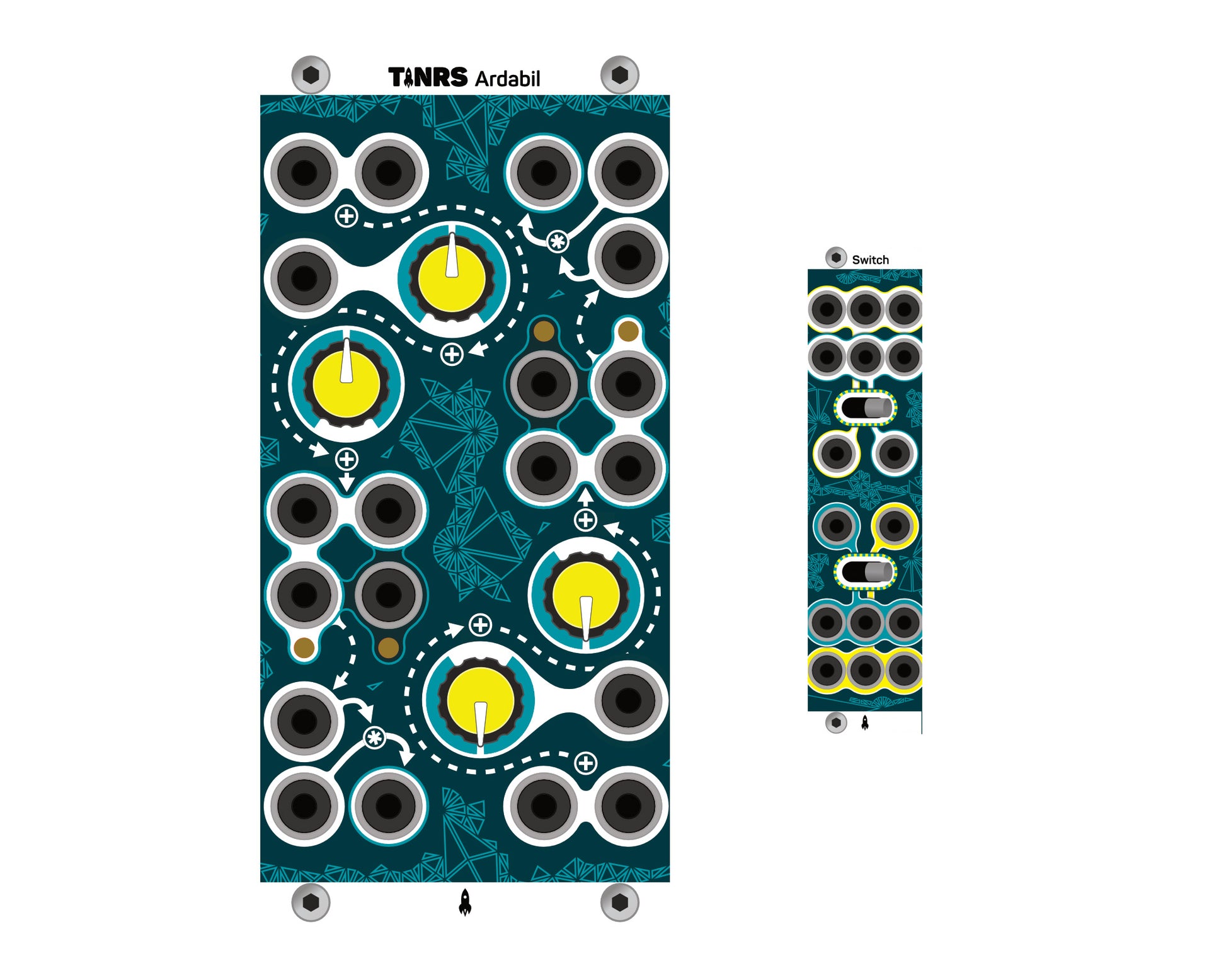

Bit of bof? The Ardabil is a utility module aimed at some of the more useful connections TiNRS could think of. The Switch comprises of 6 inputs sorted into pairs with a three way gang switch... doubled!
Ardabil Features
- Your thread starts with two CV inputs that add together without changing their scaling.
- Plug in any CV and let the knob scale your CV up or down -1 to +1 before it is added to your thread.
- The offset knob can add a fixed -5V to +5V to your woven signal.
- Threads into three buffered outputs; one has an LED that lights up when there is a positive signal.
- The fourth jack is an inverted output with a LED that lights up when there is a positive signal (which is a negative signal in the other three outputs).
- The CV input controls the volume of the audio input into the output. The CV input defaults to the signal from a buffered output.
- Adder + Attenuverter + Offset into Buffered Outputs.
- Buffered Output * -1 into Inverted Output CV (default is Buffered Output).
- Audio into VCA Output.
Video: https://youtu.be/HzI_Zg9k-BE
Product Specs
- Item Number: 27562
- Make: This Is Not Rocket Science
- Model: Ardabil + Switch
- Condition: Brand New
- Finish: Teal
- Categories: keyboards-and-synths ā eurorack
- Function: Attenuator Utility VCA CV Modulation Multiple
- Made In: Netherlands
- MPN: TiNRS-ARBSWI
- Modular Grid: Eurorack ā ļ¼
- Dimensions*: 12 HP 20 mm deep
- Power*: 80 mA +12V 2 mA -12V 0 mA 5V
* User contributed details
