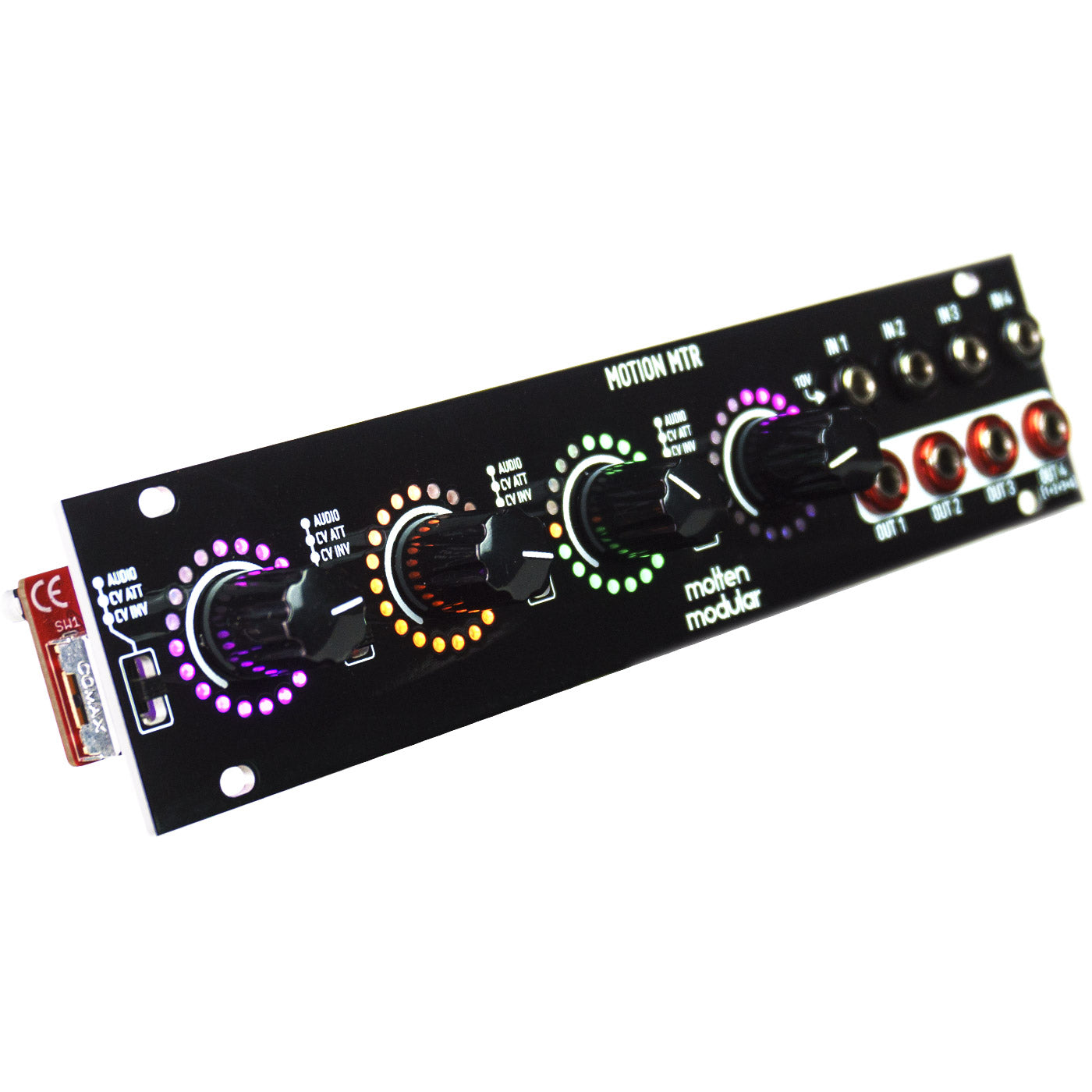

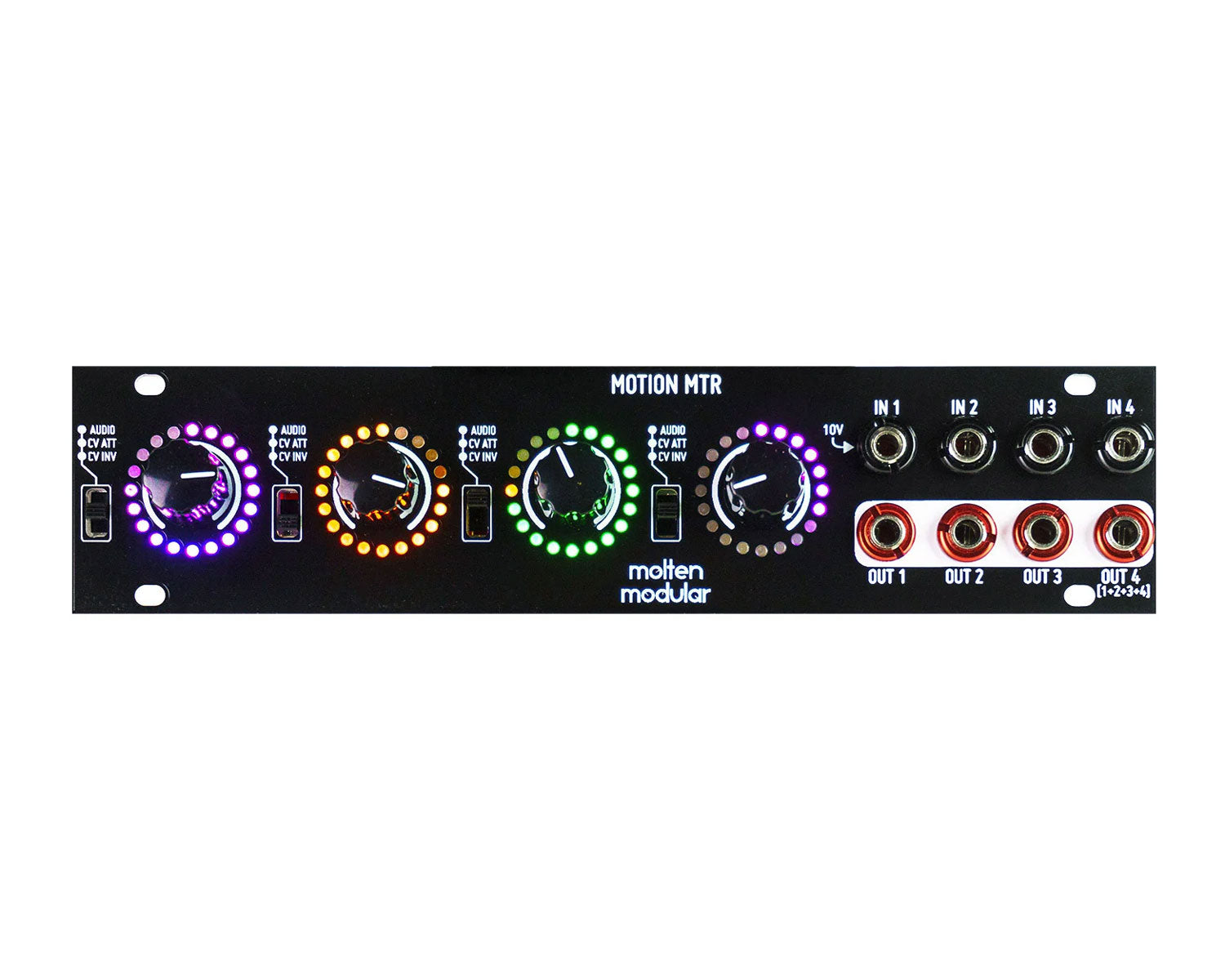

Molten Modular Motion MTR 1U

Befaco brings their Molten Modular Motion MTR collaboration to the 1U format with the Motion MTR 1U.
Its the same idea, but flipped horizontally. The 1U version functions the same but includes an additional channel for CV metering, attenuation, or inversion. The fourth channel is normalised to function as a SUM output with channels 1, 2, and 3 feeding it.
With nothing patched, you get a constant 10v on each channel's output making it a great CV knob for parameters that don't have them.

Features:

• 4 Channel Audio/CV Mixer, Attenuator, and Inverter
• Colourful radial meters
• Channel 1–3 sum to channel 4
• Static 10v normalled to inputs when un-patched

Video: https://youtu.be/omuiuN0HNZY

Product Specs

• Item Number: 27555
• Make: Molten Modular
• Model: Motion MTR 1U Assembled
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Attenuator Mixer Polarizer Utility
• Made In: Spain
• MPN: 1UMT001
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 6 HP 30 mm deep
• Power*: 110 mA +12V 43 mA -12V 0 mA 5V

* User contributed details
