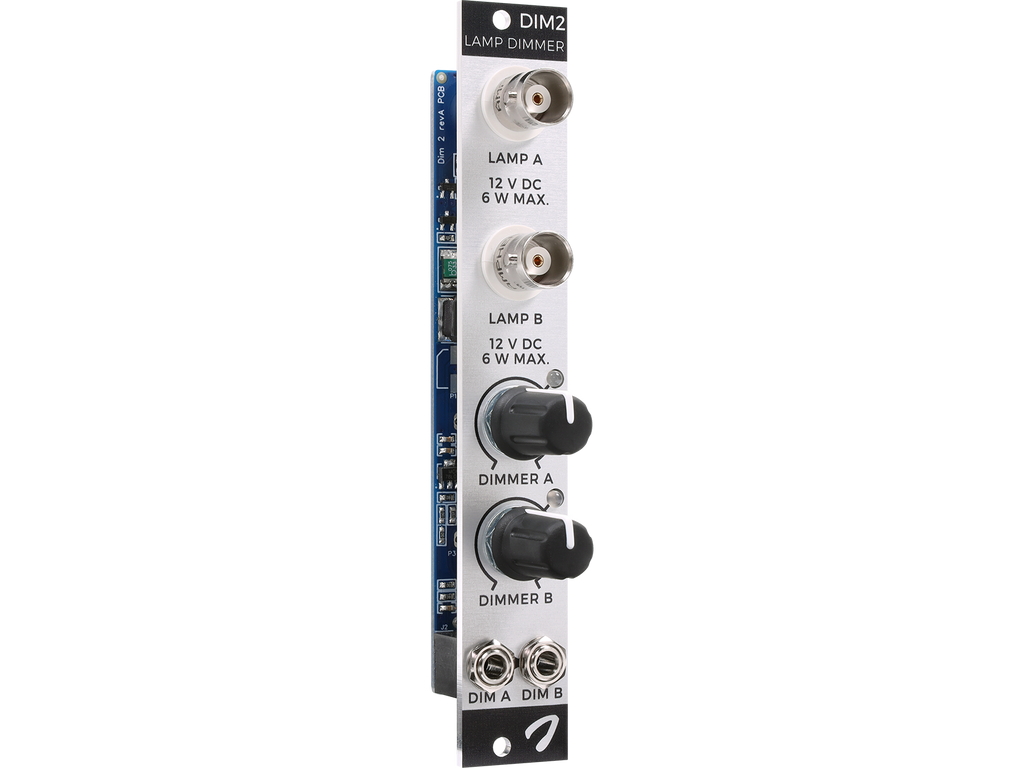

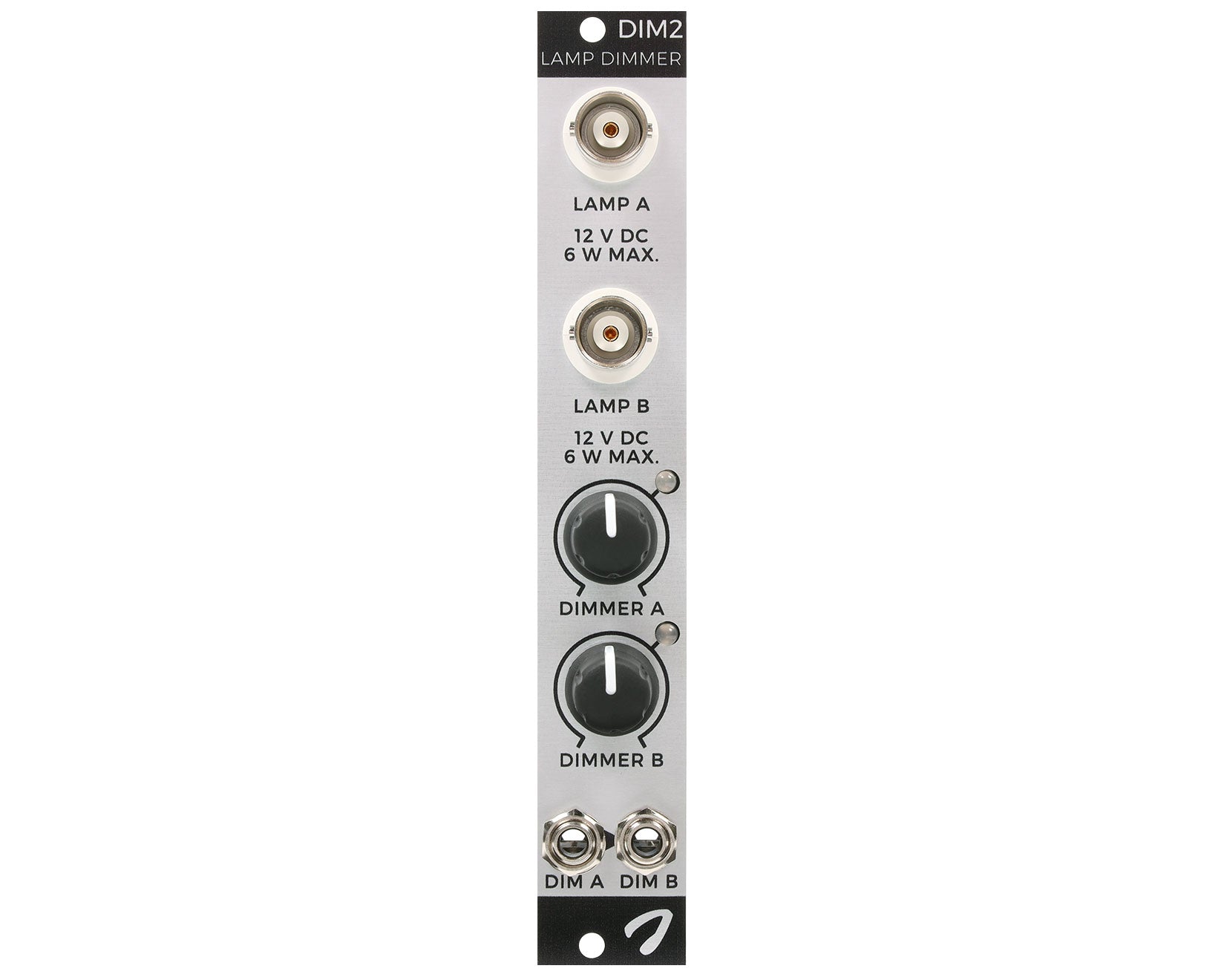

Joranalogue Dim 2 Dual BNC Lamp Dimmer
  • Load image into Gallery viewer, Joranalogue_DIM2_sku_27370_MPN_JORD2
  • Load image into Gallery viewer, Joranalogue Dim 2 Dual BNC Lamp Dimmer

Joranalogue Dim 2 Dual BNC Lamp Dimmer

Product type
Regular price
Sale price
Out of stock
Unit price
GST inclusive Shipping calculated at checkout.

* This item is not currently in stock, orders will be fulfilled when the item becomes available. Shipping October 2023.

Eurorack goths rejoice! Light up your rig on a low lit stage. Your next performance at Dark Mofo is gonna be a little bit easier. 4 HP of dimmable, high frequency, flicker and noise free console lighting. Bonus: the two lights also feature CV inputs for party times.

The extensive line filtering will keep your Eurorack power supply happy and clean. While the use of the included LED lamps are recommended in order to keep power consumption low, halogen lamps may be used as well. Up to 6 W of power may also be drawn from each output, making it possible to drive 12 V LED strips. The DIM2 will truly make your patches shine bright.


  • Dual high-efficiency analogue BNC lamp dimmers in 4 HP.
  • 22 kHz PWM frequency for noise-free operation.
  • Voltage control inputs with normalisation path.
  • Delivers up to 6 W (500 mA) of current from each output.
  • Independent overcurrent protection for both dimmers.
  • Includes two gooseneck LED BNC task lights with detachable heads, compatible with standard 2.1 mm DC barrel jacks.
  • Premium mounting hardware: black screws, black nylon washers and matching hex key.
  • High-quality components and assembly; designed and made in Belgium.

Product Specs
