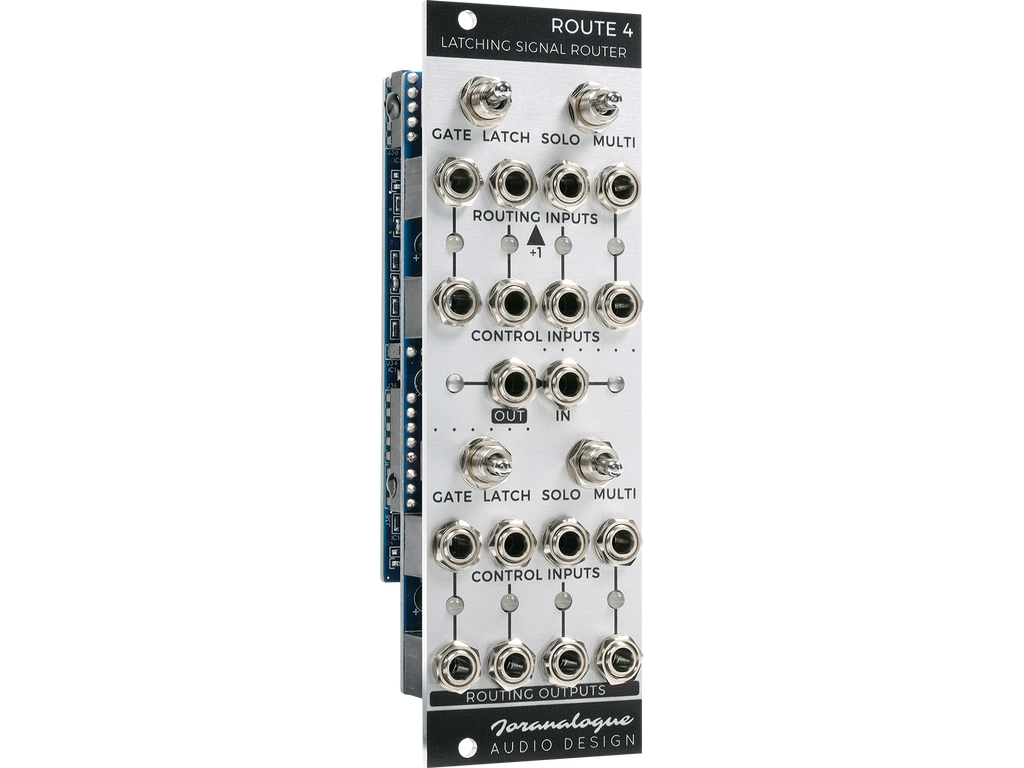

A unique routing path all controlled by gate or trigger inputs. The module is divided into two summing sections. The upper is a 4-to-1 router while the bottom does the inverse (1-to-4.) Any of the four signal inputs may be selected and mixed into the output, as determined by the control inputs. The solo/multi switch determines whether the inputs are exclusive, or if multiple may be active at the same time.
Each input socket in the Route 4 is biased by a +1 V precision voltage source, allowing for easy octave shifting of pitch CV. All signal paths are designed for use with any Eurorack signals, whether they be control voltages, audio or gate streams. Visual feedback is provided by 10 responsive LEDs, continually displaying the status of the routers. The analogue dual signal router in 8HP allows you to redirect signals within a modular system on the fly, maintaining its unparalleled level of control.
Features:
- Analogue dual signal router in 8 HP, combining 4-to-1 and 1-to-4 routing.
- Precision circuitry to route any signal, including pitch CV, accurately.
- Intra-router normal path simplifies patching.
- Independent control mode switches for each router: gate/latch and solo/multi.
- Impedance-compensated outputs.
- Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
- Polarised power header and MOSFET protection circuit.
- Premium mounting hardware: black screws, black nylon washers and matching hex key.
Video: https://youtu.be/Rq9pWYTGslg
Product Specs
- Item Number: 27369
- Make: Joranalogue
- Model: Route 4
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Switch
- Made In: Belgium
- MPN: JORR4
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 8 HP 40 mm deep
- Power: 35 mA +12V 20 mA -12V 0 mA 5V
