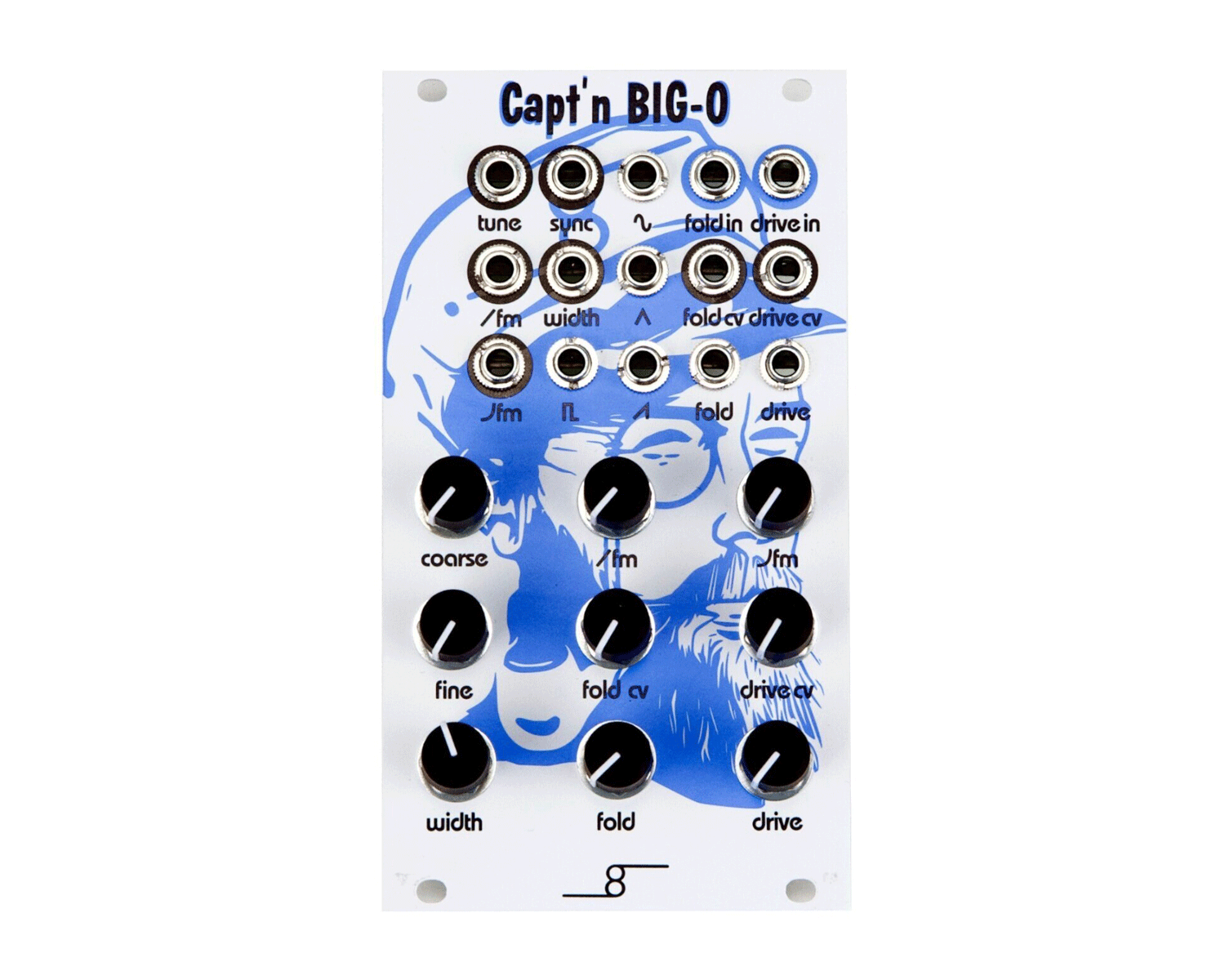

CRE8 AUDIO Capt’n Big-O Analog VCO with Waveshaping

Capt'n Big-O was designed with Pittsburgh Modular and is a fully analog Eurorack oscillator.
It features all the beloved basic waveforms- sine, triangle, sawtooth and square waves deliver the quintessential analog attitude, but you'd be wrong to think this module stops there. An internal wavefolder pushes the sine wave into grittier territory by adding additional harmonics, but can be freely repatched and applied to any other waveform available on Capt'n Big-O or elsewhere in your system. If the wavefolder weren't enough, an overdrive circuit provides 75x gain to any signal, whether it belongs to Capt'n Big-O or not. All the other hallmarks of great analog designs are here: linear and exponential FM, hard sync, and PWM. Cast off with Capt'n Big-O, one of the most capable VCOs in all the seven seas.

FEATURES

• Fully analog oscillator design
• Sine, triangle, sawtooth, and square waveforms
• Integrated wavefolder normalled to sine wave, but patchable to any internal or external audio source
• Built-in 75x drive circuit with external input
• Hard sync
• Linear and exponential FM
• Pulse-width modulation

Video: https://youtu.be/wLkJZklFSFk

Product Specs

• Item Number: 26267
• Make: Cre8audio
• Model: Capt’n Big-O
• Condition: Brand New
• Finish: White
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Oscillator Waveshaper VCA
• Made In: China
• MPN: CRE-CAPTNBIG-O
• UPC: 850009372079
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 14 HP 26 mm deep
• Power*: 120 mA +12V 108 mA -12V ? mA 5V

* User contributed details
