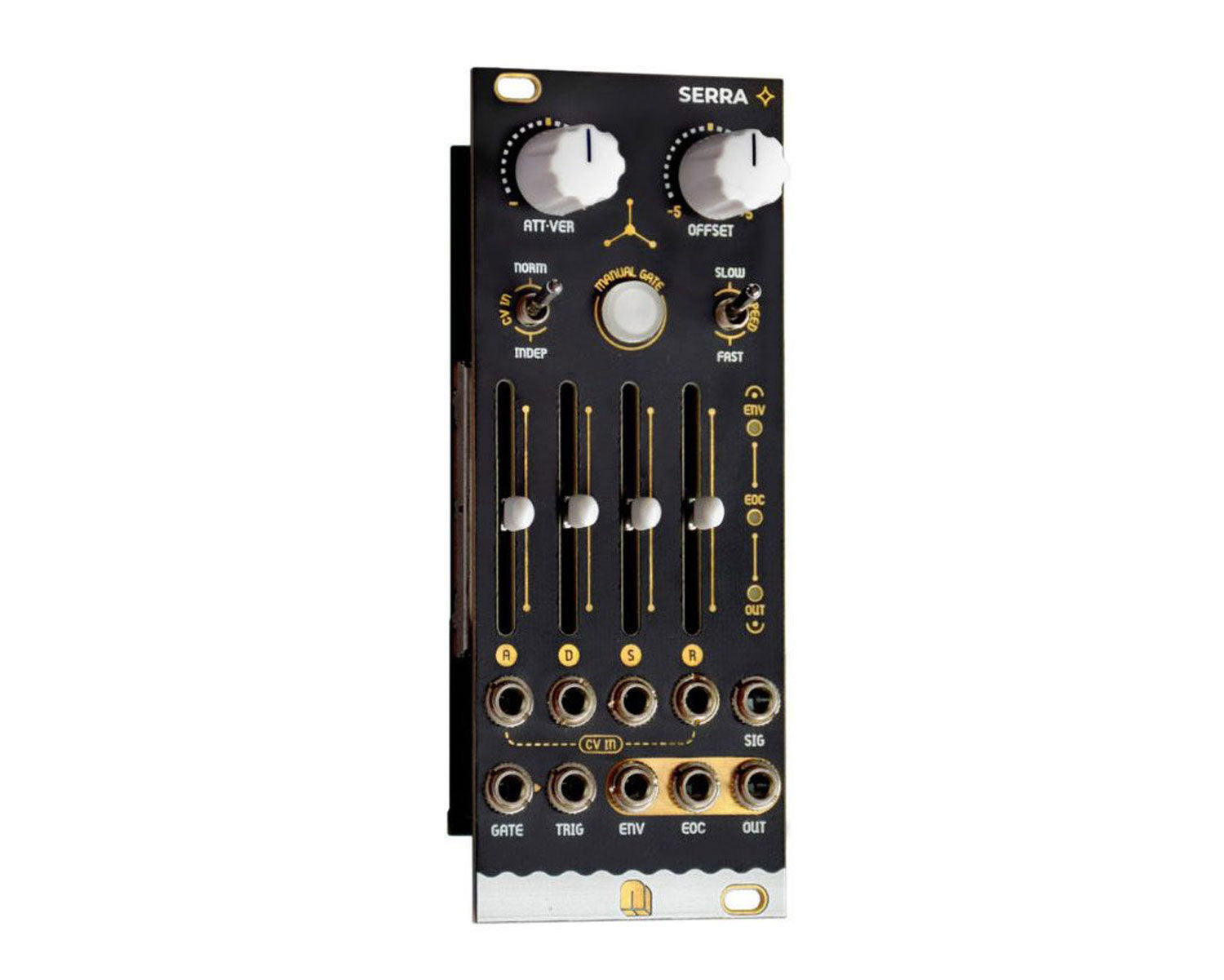

The Nanomodules Serra is a 10HP ADSR envelope generator packed with useful features and voltage control over all stages, plus an additional attenuverter/offset section.
The Swiss Army Knife of Envelope modules.šØš
Using the sliders, you can create the perfect envelope shape adjusting the attack, decay, sustain, and release. You can add further control and interaction by using the external modulation sources to control any of the envelope stages or have a single signal modulate all parameters simultaneously using the CV Mode switch.
The addition of an attenuation/inversion and +/-5v offset adjustments gives you the options to adjust external signals using the SIG input, however, with nothing patch the ENV OUT is normalized to that patch point. Easily adjust the shape with a manual trigger button and adjust the speed to be as long as 40s in length.
Features:
- ADSR envelope generator with CV over all 4 stages
- Fast and slow envelope times can go as fast as 1ms or as slow as 40s
- Independant Gate and Trigger inputs
- Attenuation/inversion and offset stage for fine tuning the shape
- CV Mode switches from all stages normalized to all stages independent for single input control over the entire envelope shape
Video: https://youtu.be/pqqXDSDyet4
Product Specs
- Item Number: 25631
- Make: NANO Modules
- Model: Serra ADSR Envelope
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ā eurorack
- Function: Attenuator CV Modulation Envelope Generator Function Generator Utility
- Made In: Spain
- MPN: NAN-SER
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 10 HP 15 mm deep
- Power: 53 mA +12V 39 mA -12V ? mA 5V
