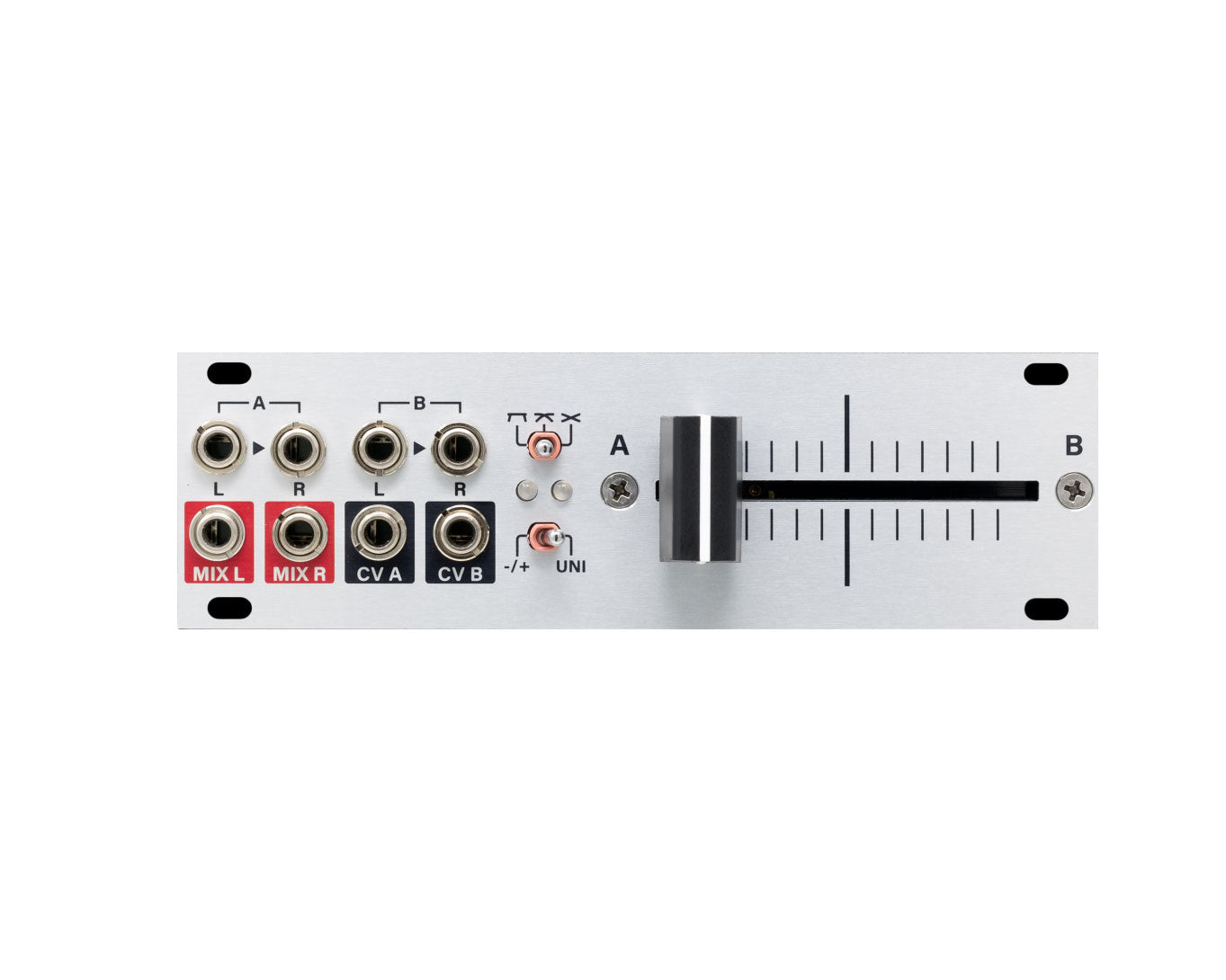

Xfade 1U is a classic DJ-style stereo crossfader, with a few extra tricks up its sleeve. The ‘A’ and ‘B’ sides both have L+R inputs. The crossfader blends two stereo input signals together — crossfading one into the other depending on the position of the slider and the selected Xfade Shape. The blended output appears at the MIX L and MIX R output jacks.
In addition, Xfade 1U can be used as a modulation source for controlling other modules, since the crossfader also outputs control voltages from the CV A and CV B jacks. A switch determines whether these voltages are unipolar (crossfading from 0V to 5V; and 5V to 0V), or bipolar (crossfading from -5V to +5V; and +5V to -5V). The two LEDs indicate the polarity and relative levels of the CV A and CV B signals
Features:
-
Smooth and ultra-low friction Innofader Mini-Innofader module with moving capacitance technology
-
Three crossfade shapes: DJ cut, Constant Power and Linear
-
Stereo or Mono operation
-
DC coupled inputs and outputs
-
Unipolar or Bipolar CV outputs
-
Output is chainable to intellijel Outs, Mixup, and Stereo Mixer 1U Modules via included 3-pin cable
Product Specs
- Item Number: 25345
- Make: Intellijel
- Model: XFADE 1U
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Controller Dual/Stereo Mixer Switch VCA
- Made In: Canada
- MPN: XFADE-1U
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 26 HP 38 mm deep
- Power: 48 mA +12V 41 mA -12V ? mA 5V
