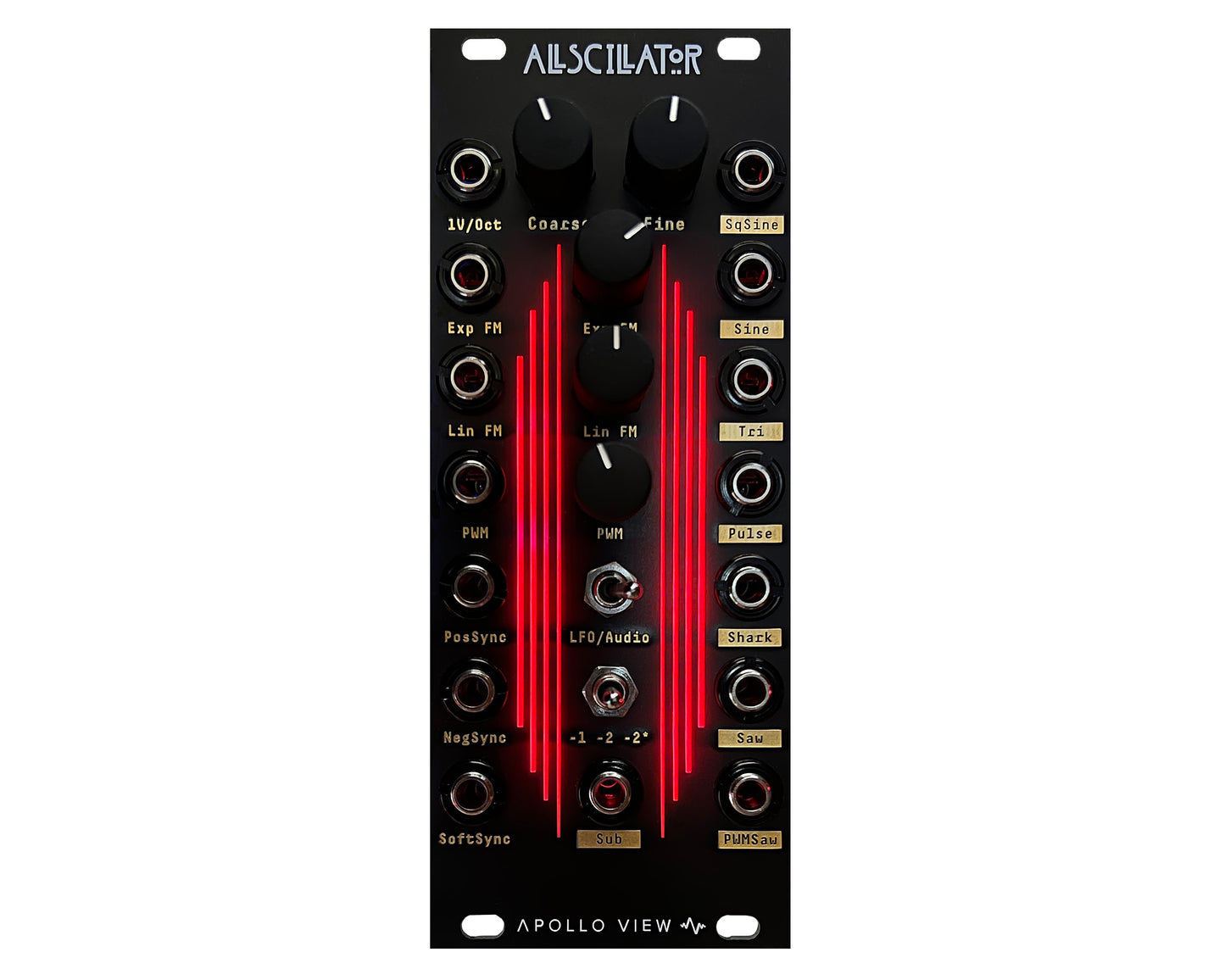

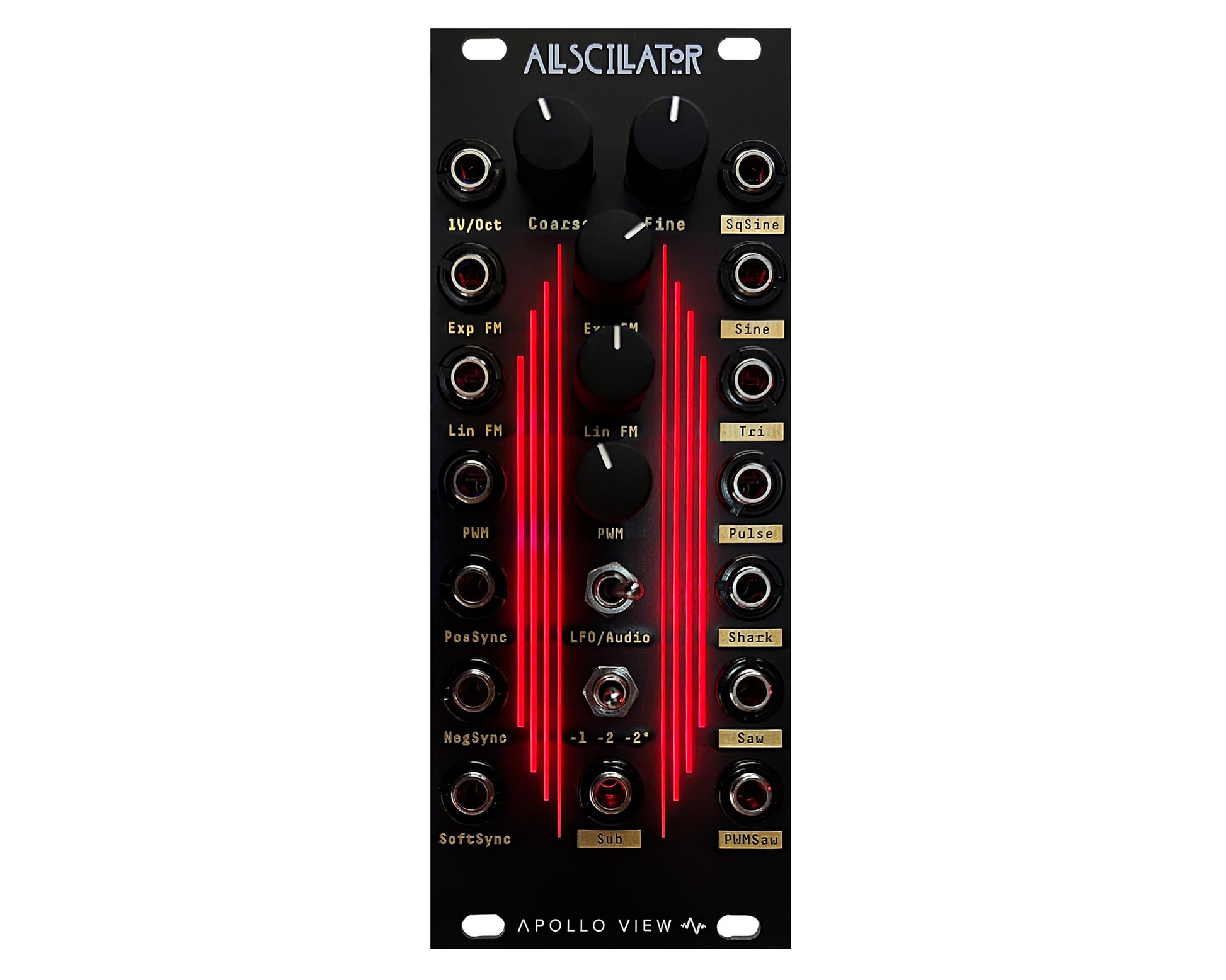

All the oscillator waveforms in 10 HP! No ordinary 3340 VCO!
An extremely stable, wide-ranging (0.0011Hz – 20kHz), all analogue triangle core VCO / LFO / Ultra-LFO based on famous 3340 VCO IC, which utilises the full potential of the 3340’s capabilities and adds additional wave-shaped outputs.
Provides eight simultaneously available waveforms:
- Square Sine
- Sine
- Tri
- Pulse (PWM)
- Sharktooth
- Saw
- PWM Saw
- Sub (-1 Octave, -2 Octave and -2 Octave Pulse) * Sub octave is square/pulse selectable via a switch: -1 Octave, -2 Octave and -2 Octave
- Pulse (25% high, 75% low duty cycle)
1V/oct control extends over +10 octaves. Further frequency modulation is possible through independent Exponential Frequency Modulation and Linear Frequency Modulation. Each FM input has an attenuator for controlling the range of the modulation.
Three types of independent oscillator sync are available for locking the pitch to another master oscillator and creating new harmonically rich waveform shapes at the outputs:
- Positive edge Hard Sync
- Negative edge Hard Sync
- Soft sync (from a negative edge) * The oscillator range can be switched between Audio frequency, LFO frequency and Ultra LFO.
- Audio - 23Hz to +20kHz
- LFO - 0.67Hz (1.5 seconds) - 45Hz
- Ultra LFO - 15mins to 12 seconds
- The LFOs can be pushed up into the Audio range by using 1V/oct and FM inputs.
Video: https://youtu.be/gvv8RiWRf6M
Product Specs
- Item Number: 25151
- Make: Apollo View
- Model: Allscillator
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Oscillator
- Made In: United Kingdom
- MPN: APLL03
- Modular Grid: Eurorack ⓘ ＋
- Dimensions: 10 HP 40 mm deep
- Power: 135 mA +12V 120 mA -12V 0 mA 5V
