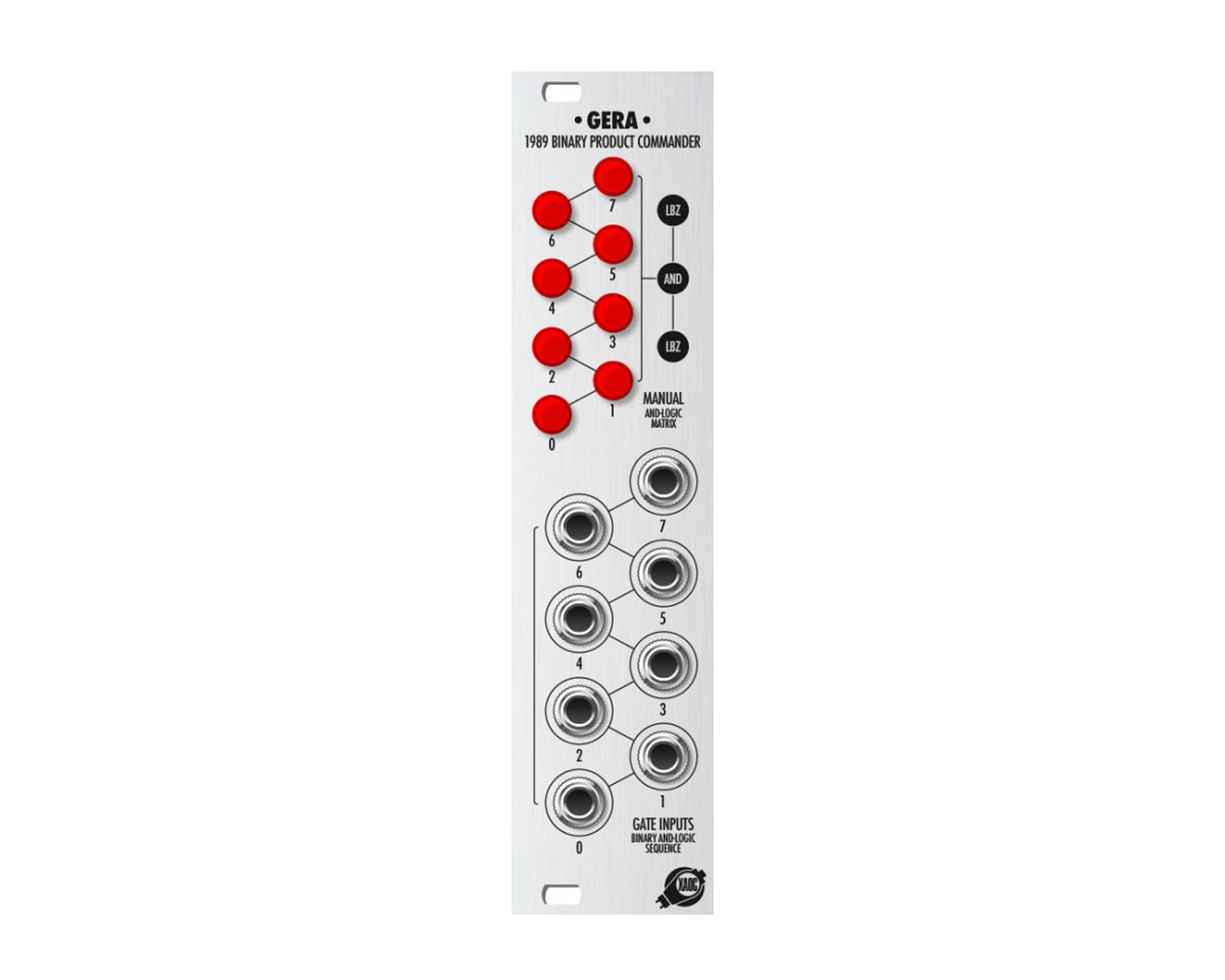

BINARY PRODUCT COMMANDER
Model of 1989
Gera is a component of the Leibniz subsystem that allows masking individual bits of the digital data by the use of logical AND operation. It features 8 individual gate inputs that affect the individual bits of data, as well as 8 illuminated tact switches for manual inverting of each control input. When connected to Drezno that is processing a waveform or voltage, masking of individual bits yields various forms of quantization. However, Gera can function on its own. The AND operation is a basic building block for sequence automation, chaos and rhythm generation, and various computer-like modular patches. Bit processing logic in Gera is hardware based, hence there is virtually no latency, and the binary signals may change at extreme rates.
Main features:
- logical AND operation on Leibniz data
- masking of individual bits controlled manually and by gate signals
- visual indication by illuminated buttons
- 6HP
- 30 mm depth (including ribbon cable brackets)
- +12V: +45mA / -12V: 0mA / +5V: 0mA
Product Specs
- Item Number: 24907
- Make: XAOC Devices
- Model: Gera
- Condition: Brand New
- Finish: Silver
- Categories: keyboards-and-synths ā eurorack
- Function: Digital Logic
- Made In: Poland
- MPN: XAOC-GER
- Modular Grid: Eurorack ā ļ¼
- Dimensions: 6 HP 30 mm deep
- Power: ? mA +12V ? mA -12V 0 mA 5V
